SGM42541.pdf
No.13803
? Motor Supply Voltage Range: 8V to 45V
? Dual H-Bridge Motor Driver
? PWM Control Interface
? 2-Bit Current Control Supports up to 4 Current Levels
? Low On-Resistance: 0.42Ω for HS + LS, TJ = +25℃
? Up to 2.5A Drive Current at VM = 24V, TJ = +25℃
? Low Current Sleep Mode
? Built-in 3.3V Reference Output
? Full Set of ProtectionsUnder-Voltage Lockout (UVLO)
Over-Current Protection (OCP)
Thermal Shutdown (TSD)
Fault Condition Indication Pin (nFAULT)

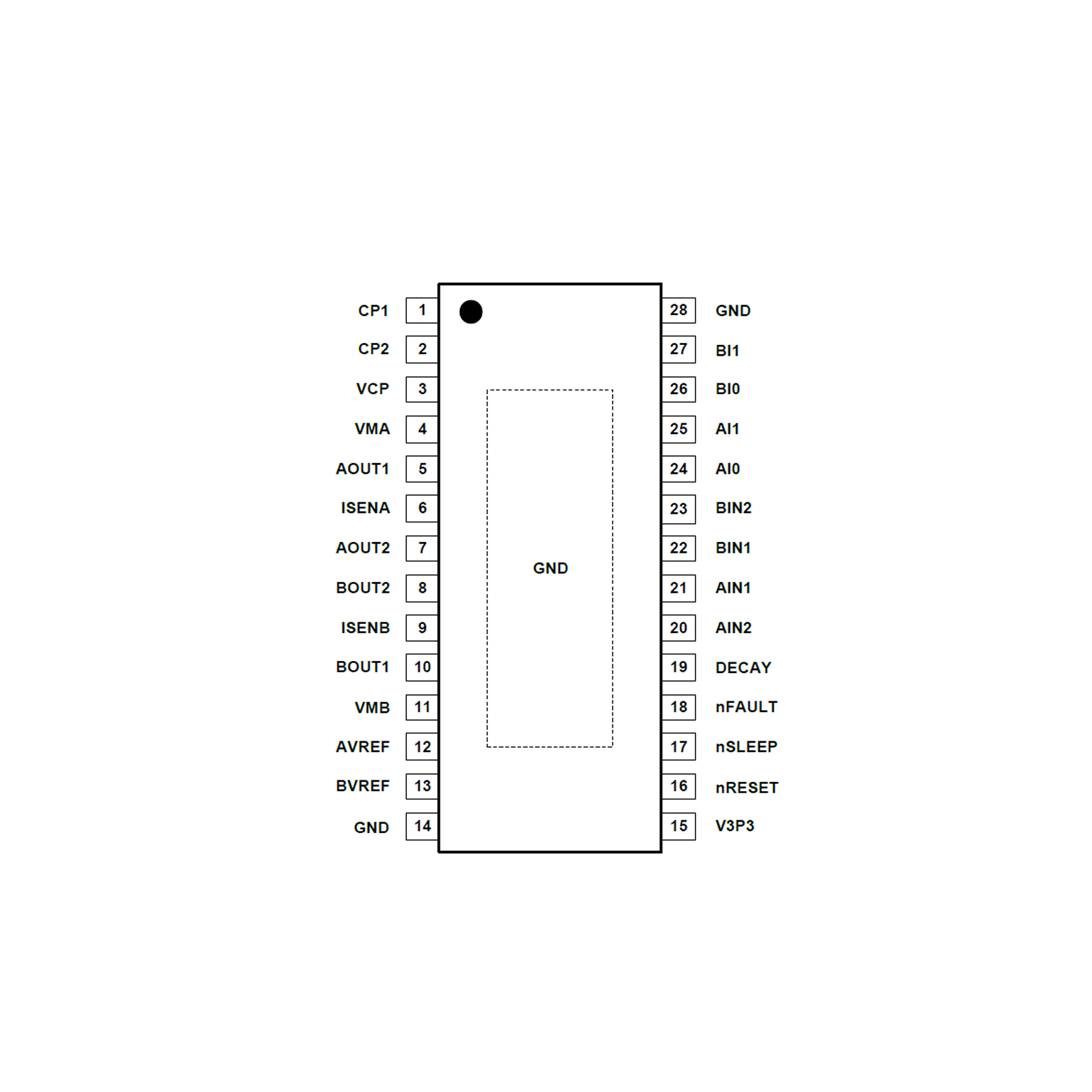

? Available in a Green TSSOP-28 (Exposed Pad) Package

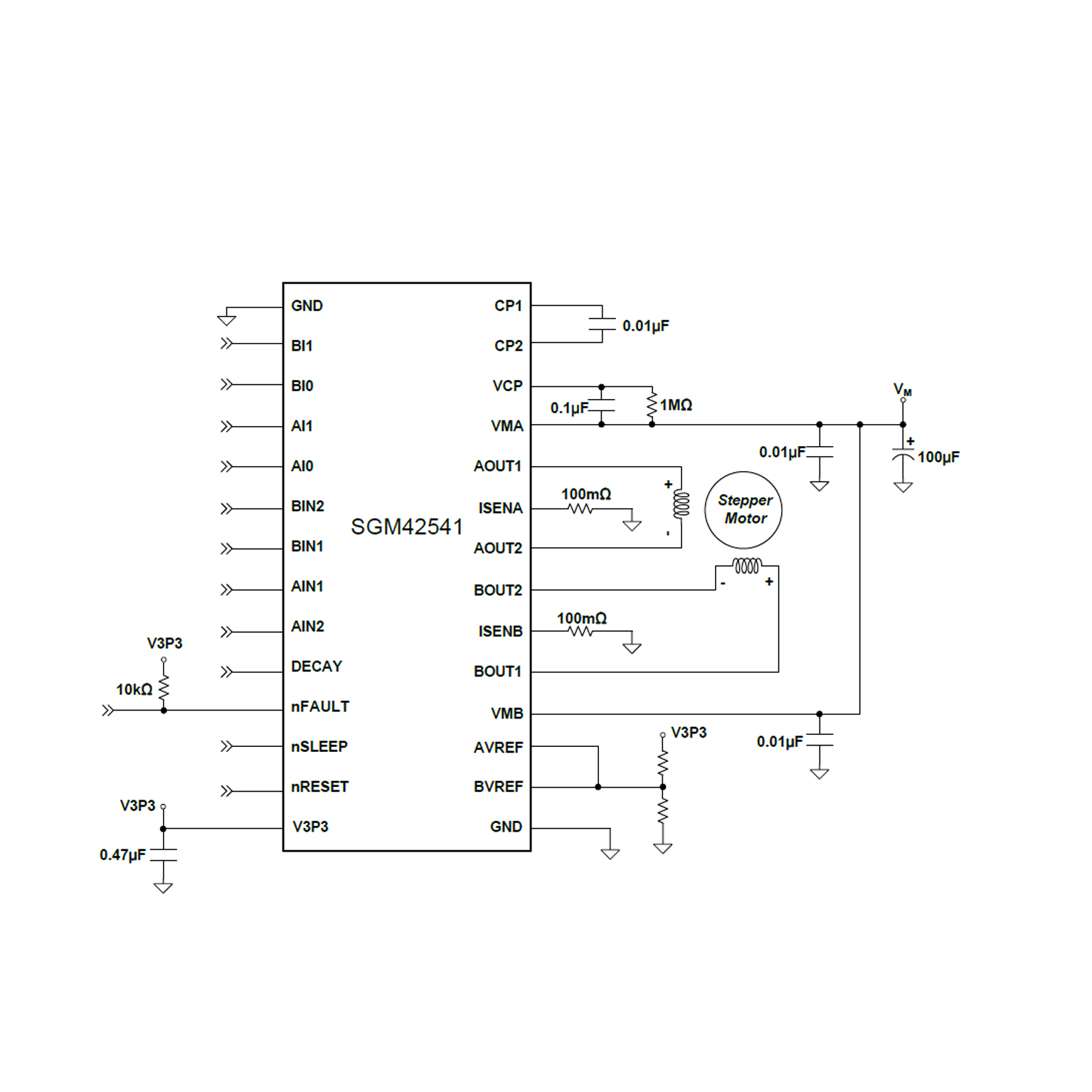

The SGM42541 is a dual H-bridge motor driver suitable for automated positioning and movement control in equipment such as printers, scanners and robotic mechanisms. The SGM42541 has two H-bridge drivers, and can drive a bipolar stepper motor or two DC motors. The output driver block for each consists of N-MOSFETs configured as full H-bridge to drive the motor windings. With proper heatsinking, the SGM42541 can deliver up to 2.5A peak output current per channel (at VM = 24V and TJ = +25℃).
A simple parallel digital control interface is compatible with industry-standard devices. Decay mode is programmable. Fast, slow and mixed decay modes can be provided according application requirements. A 2-bit current control scheme allows up to 4 discrete current levels. A number of protection features are provided in the device including over-current, short-circuit, under- voltage lockout and thermal shutdown.
The SGM42541 is available in a Green TSSOP-28 (Exposed Pad) package.
