Dual H-Bridge Motor Driver.
SGM42633 SGM42633.pdf

No.13367

FEATURES

? Wide Power Supply Voltage Range: 2.5V to 12V

? Two Internal H-Bridge Drivers

? Low Quiescent Current: 150μA (TYP)

Sleep Mode Supply Current: 0.32μA (TYP)

? xINx (PWM) Interface

? Output Current Capability (at VCC = 5V, +25℃)

  TSSOP Package: 0.7A RMS, 1A Peak

  per H-Bridge 1.4A RMS in Parallel Mode

  TQFN Package: 0.6A RMS, 1A Peak

  per H-Bridge 1.2A RMS in Parallel Mode

? UVLO for VCC Voltage

? Over-Current Protection (OCP)

? Thermal Shutdown (TSD)

? Fault Indication Pin (nFAULT)

? Available in Green TSSOP-16 (Exposed Pad)

  and TQFN-3×3-16L Packages

DESCRIPTION

The SGM42633 is a bipolar stepper motor driver with dual, built-in H-bridges. It operates from a supply voltage range of 2.5V to 12V, and each H-bridge of the SGM42633 can deliver motor current up to 700mA RMS (or DC) continuously, at +25with a VCC supply of 5V.
The internal safety features include sinking and sourcing current limits implemented with external sensors. Internal over-current and over-temperature circuits prevent the device from being in over-stress condition, while a fault output simplifies stalling sensing, which is a useful feature for most applications. A low-power sleep mode is also provided.
The device is available in Green TQFN-3×3-16L and TSSOP-16 (Exposed Pad) packages.

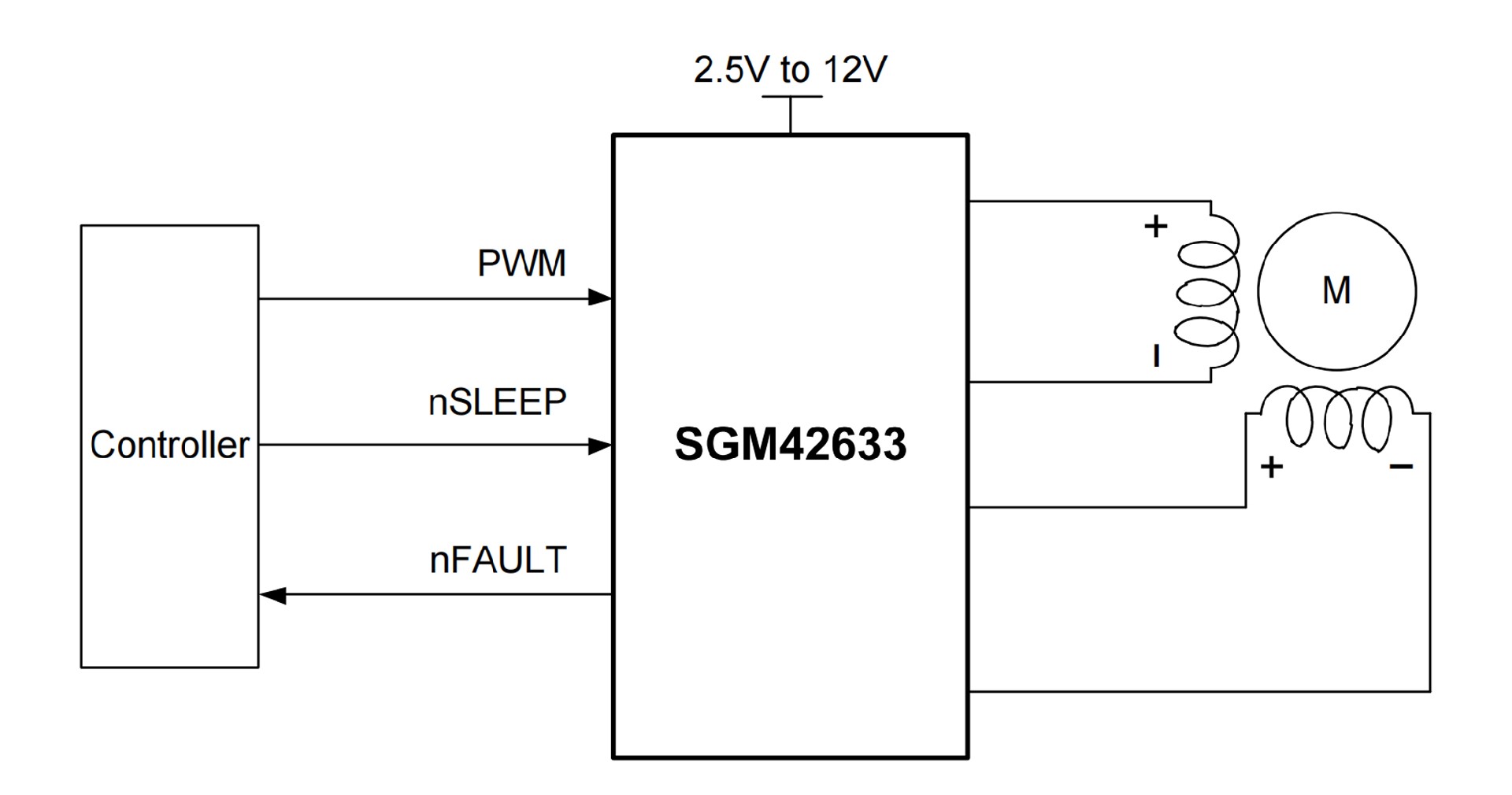

APPLICATION CIRCUIT

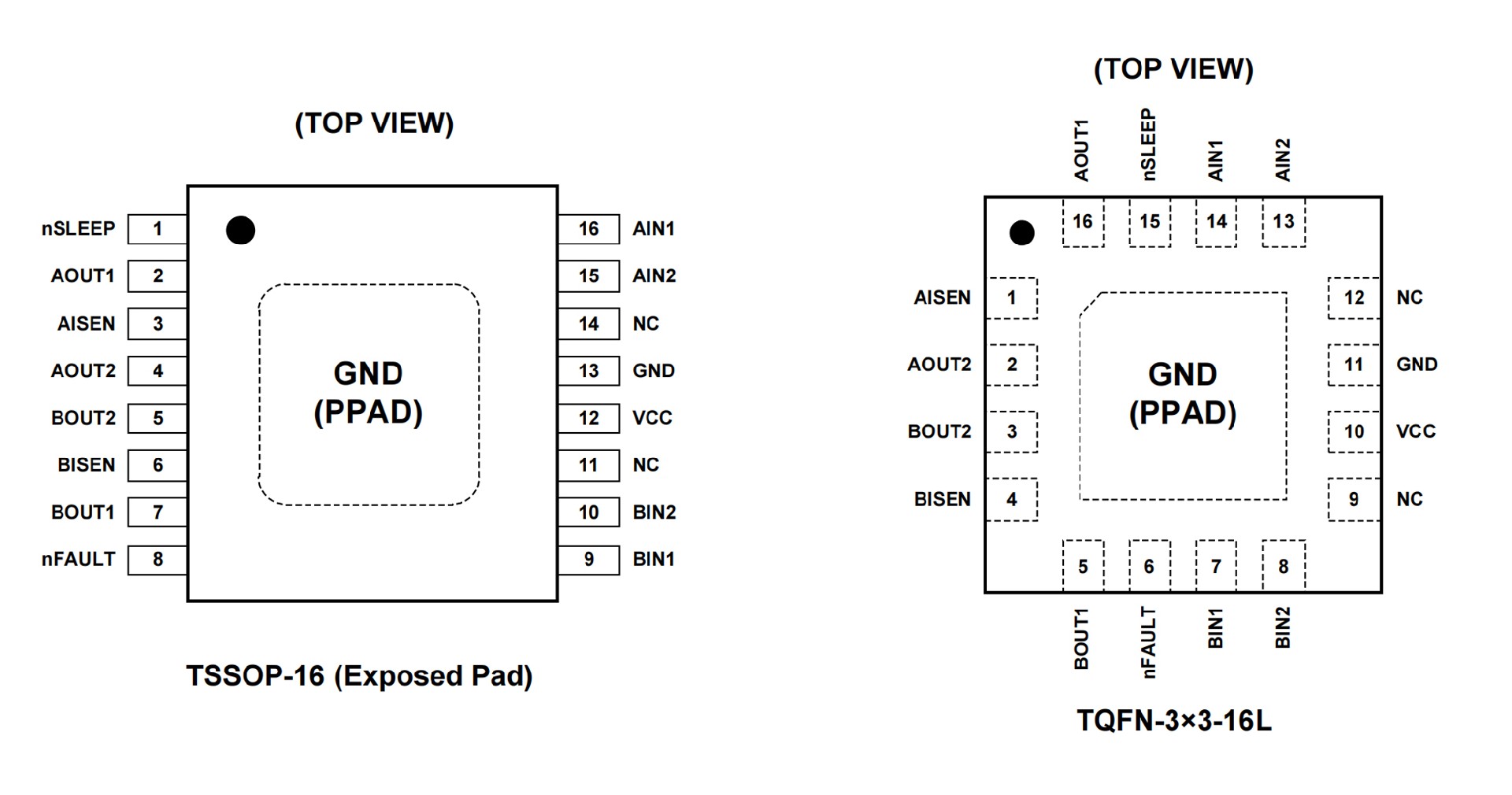

PIN CONFIGUTION
