SGM44599.pdf
No.11152
● Low Voltage Operation: 1.8V to 5.5V
● On-Resistance: 4Ω (TYP)
● Low On-Resistance Flatness
● -3dB Bandwidth: 300MHz
● Rail-to-Rail Input and Output Operation
● High Off-Isolation: -75dB at 1MHz
● Low Crosstalk: -100dB at 1MHz
● Typical Power Consumption (<0.01μW)
● TTL/CMOS Compatible

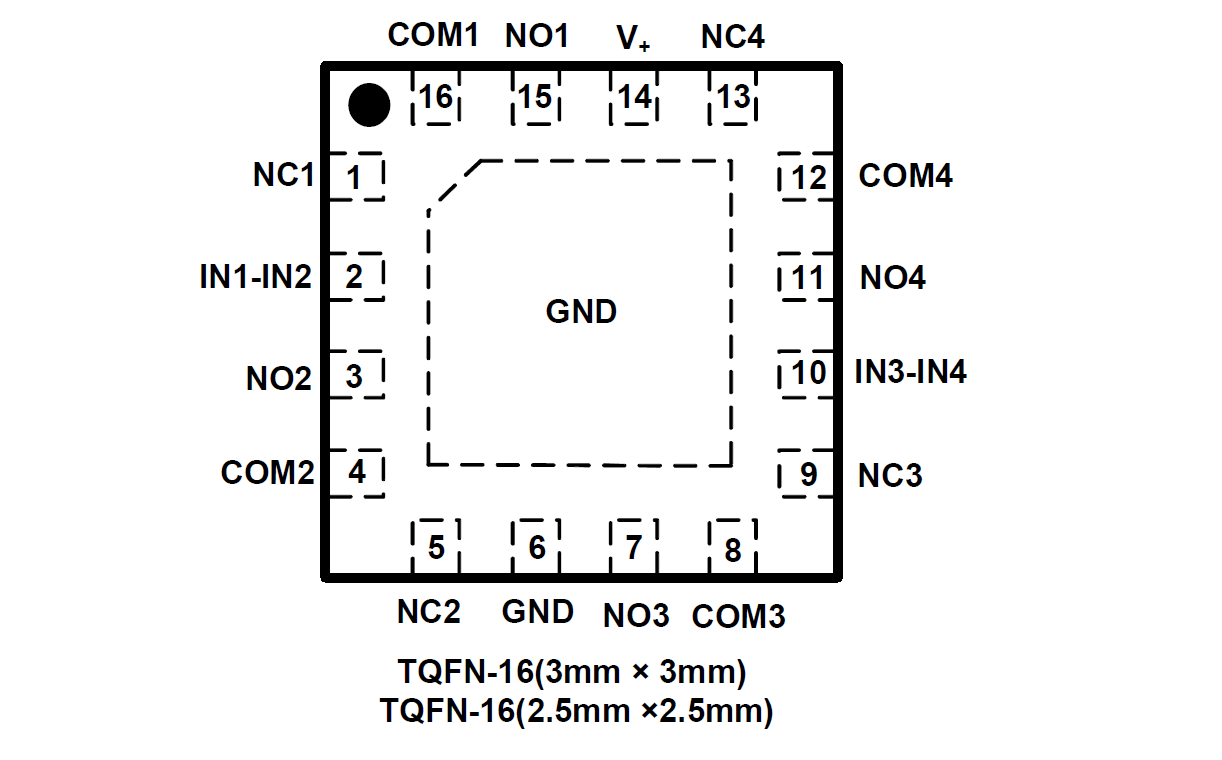

● Lead (Pb) Free TQFN-16 (3mm × 3mm) and
TQFN-16 (2.5mm × 2.5mm) Packages
● Extended Industrial Temperature Range: -40°C to +85°C
The SGM44599 is a high-speed, low-voltage, advanced dual-independent double-pole/double-throw (DPDT) CMOS analog switch that is designed to operate from a single +1.8V to +5.5V power supply. It features highbandwidth (300MHz) and low on-resistance (4Ω TYP).
The SGM44599 is configured as a dual double-pole /double-throw (DPDT) device with two logic control inputs that control two multiplexer/demultiplexer each. The configuration can also be used as a dual differential 2-to-1 multiplexer/ demultiplexer.
SGM44599 is available in TQFN-16 (3mm × 3mm) and TQFN-16 (2.5mm × 2.5mm) packages.
