SGM4516.pdf
No.11144
● Dual Supply Range: ±2.7V to ±12V
● Single Supply Range: 2.7V to 24V
● On-Resistance for Switches: 11Ω (TYP)
● VEE to VCC Rail-to-Rail Low Distortion Signal Passing
● VEE Can be Connected to Negative Power Supply or GND
● Fast Switching Times
● High Off-Isolation
● Very Low Crosstalk
● 1.8V Logic Compatible Control Pin
● Break-Before-Make Switching
● -40℃ to +85℃ Operating Temperature Range

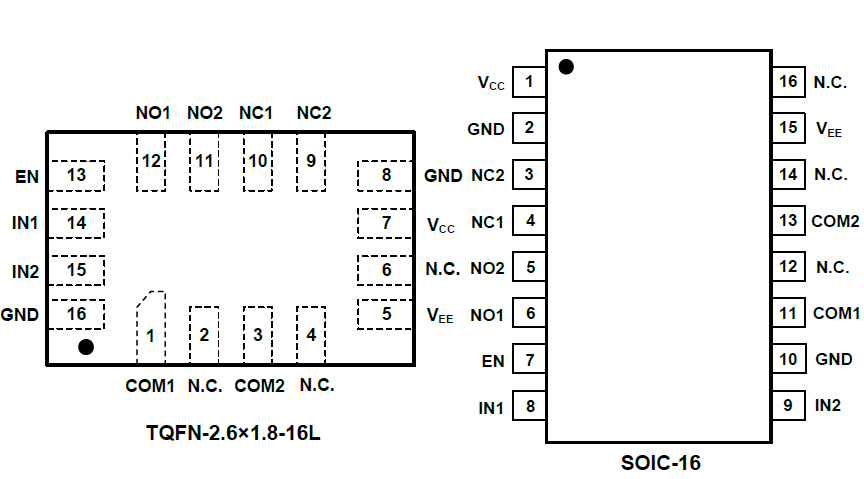

● Available in Green TQFN-2.6×1.8-16L and SOIC-16 Packages
The SGM4516 is a high voltage, rail-to-rail signal passing, dual single-pole/double-throw (SPDT) analog switch that is designed to operate for single power supply or dual power supply. Targeted applications include battery powered equipment that benefit from the SGM4516’s low 11Ω (TYP) on-resistance, high off-isolation, very low crosstalk and fast switching speeds.
The SGM4516 is a committed dual single-pole/double- throw (SPDT) switches that consist of two normally open (NO) and two normally closed (NC) switches. This configuration can be used as a dual 2-to-1 multiplexer.
The SGM4516 can pass VEE to VCC wide range rail-to-rail signals with very low distortion.
The SGM4516 is available in Green TQFN-2.6×1.8-16L and SOIC-16 packages. It operates over an ambient temperature range of -40℃ to +85℃.
