SGM4583.pdf
No.11140
● Guaranteed On-Resistance
51Ω with ±5V Supplies
84Ω with Single +5V Supply
● Guaranteed On-Resistance Match Between Channels
● Low Off-Leakage Current 10nA at +25℃
● Low On-Leakage Current 10nA at +25℃
● ±1.8V to ±5.5V Dual-Supply Operation or
+3.6V to +11V Single-Supply Operation
● TTL/CMOS-Logic Compatible
● Low Distortion: 0.02% (RL = 600Ω, f = 20Hz to 20kHz)
● High Off-Isolation: -62dB (RL = 50Ω, f = 1MHz)
● Low Crosstalk: -85dB (RL = 50Ω, f = 1MHz)
● Extended Industrial Temperature Range: -40℃ to +85℃

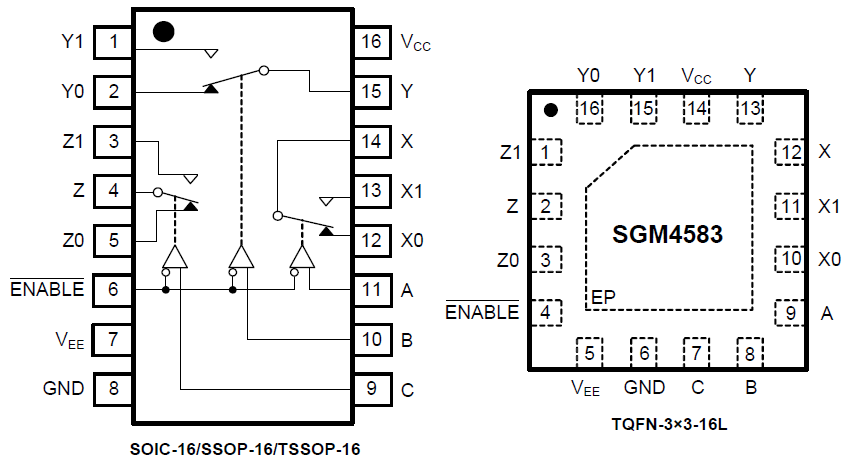

● Available in Green SOIC-16, SSOP-16, TSSOP-16 and
TQFN-3×3-16L Packages

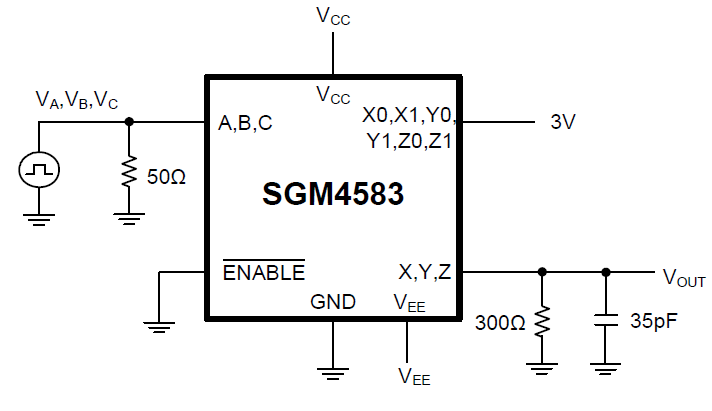

The SGM4583 is a high voltage, CMOS analog IC configured as three single-pole/double-throw (SPDT) switches. This CMOS device can operate from ±1.8V to ±5.5V dual power supplies or from +3.6V to +11V single supplies. Each switch can handle rail-to-rail analog signals. The off-leakage current is only 10nA at +25℃. All digital inputs have 0.8V to 2.4V logic thresholds, ensuring TTL/CMOS-logic compatibility when using a single +5V or dual ±5V supplies.
SGM4583 is available in Green SOIC-16, SSOP-16, TSSOP-16 and TQFN-3×3-16L packages. It operates over an ambient temperature range of -40℃ to +85℃.
