SGM4782.pdf
No.11135
● Voltage Operation: 1.8V to 4.2V
● Low On-Resistance: 0.5Ω (TYP) at 4.2V
● Low On-Resistance Flatness
● -3dB Bandwidth: 30MHz

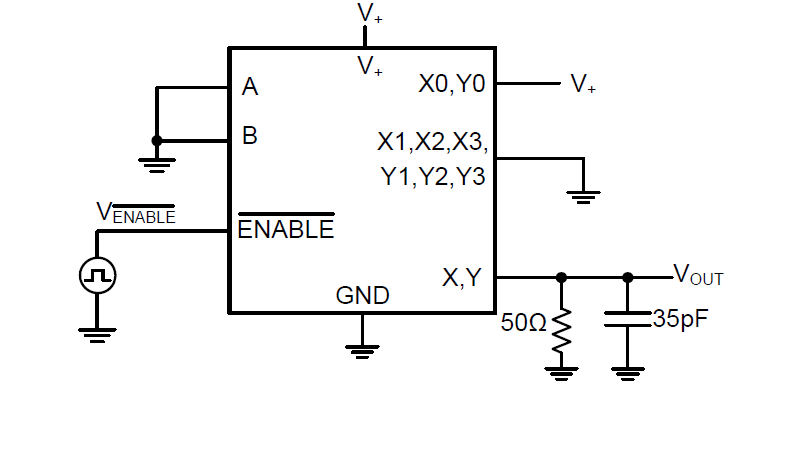

● Fast Switching Times (+4.2V)
tON 20ns
tOFF 20ns
● Low Crosstalk: -108dB at 1MHz
● Typical Power Consumption (< 0.01μW)
● TTL/CMOS Compatible
● Rail-to-Rail Input and Output Operation
● Break-Before-Make Switching
● Extended Industrial Temperature Range: -40°C to +85°C

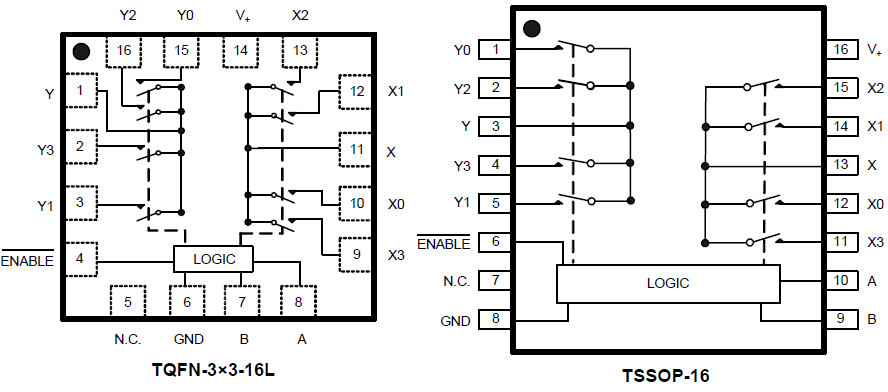

● Available in Green TQFN-3×3-16L and TSSOP-16 Packages
The SGM4782 is high-speed, low-voltage, low on-resistance, CMOS analog multiplexer/switch that configured as two 4-channel multiplexers. It operates from a single +1.8V to +4.2V power supply. Targeted applications include battery powered equipment that benefit from low RON (0.5Ω) and fast switching speeds (tON = 20ns, tOFF = 20ns).
The SGM4782 can handle rail-to-rail analog signals and is available in Green TQFN-3×3-16L and TSSOP-16 packages.
