Power MOSFET and IGBT Gate Drivers with Comprehensive Protections.
SGM48017 SGM48017.pdf

No.13365

FEATURES

? Simple and Reliable

? 8A Source and 13A Sink Peak Currents

? Wide Supply Voltage Range: 4.5V to 20V

? Fast Propagation Delay: 30ns (TYP)

? Fast Rise Time: 7ns (TYP)

? Fast Fall Time: 8ns (TYP)

? Ringing Suppression

? Negative Voltage Capability on INx Pin:

  -10V when (VDD - VINx) ≤ 22V

? Negative Voltage Capability on EN Pin:

  -10V when (VDD - VEN) ≤ 22V

? Negative Voltage Capability on OUT Pin:

  -5V (Pulse < 500ns)

? Comprehensive Protection Features

  Thermal Shutdown Protection

  Under-Voltage Lockout

  Short-Circuit Protection

? -40℃ to +125℃ Operating Temperature Range

? Available in a Green SOT-23-5 Package

DESCRIPTION

The SGM48017/8/9 are high-speed gate drivers capable of effectively driving MOSFET and IGBT power switches. They allow for up to 8A source and 13A sink peak currents at VDD = 20V. The SGM48017/8/9 provide a set of comprehensive protection features such as thermal shutdown protection, under-voltage lockout and short-circuit protection. They operate with a wide supply range of 4.5V to 20V.
The SGM48017/8/9 are available in a Green SOT-23-5 package. They operate over a temperature range of -40to +125.

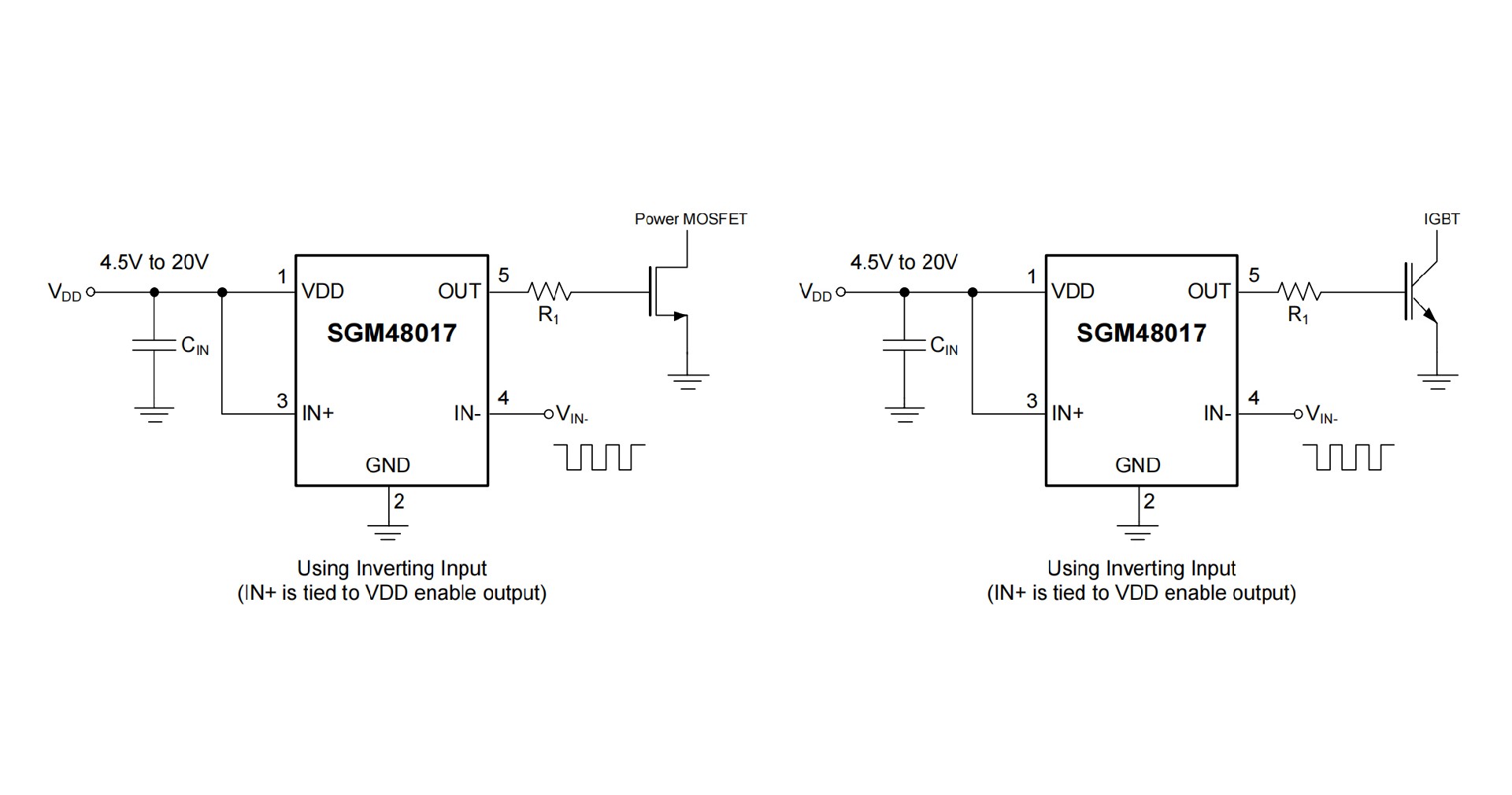

APPLICATION CIRCUIT

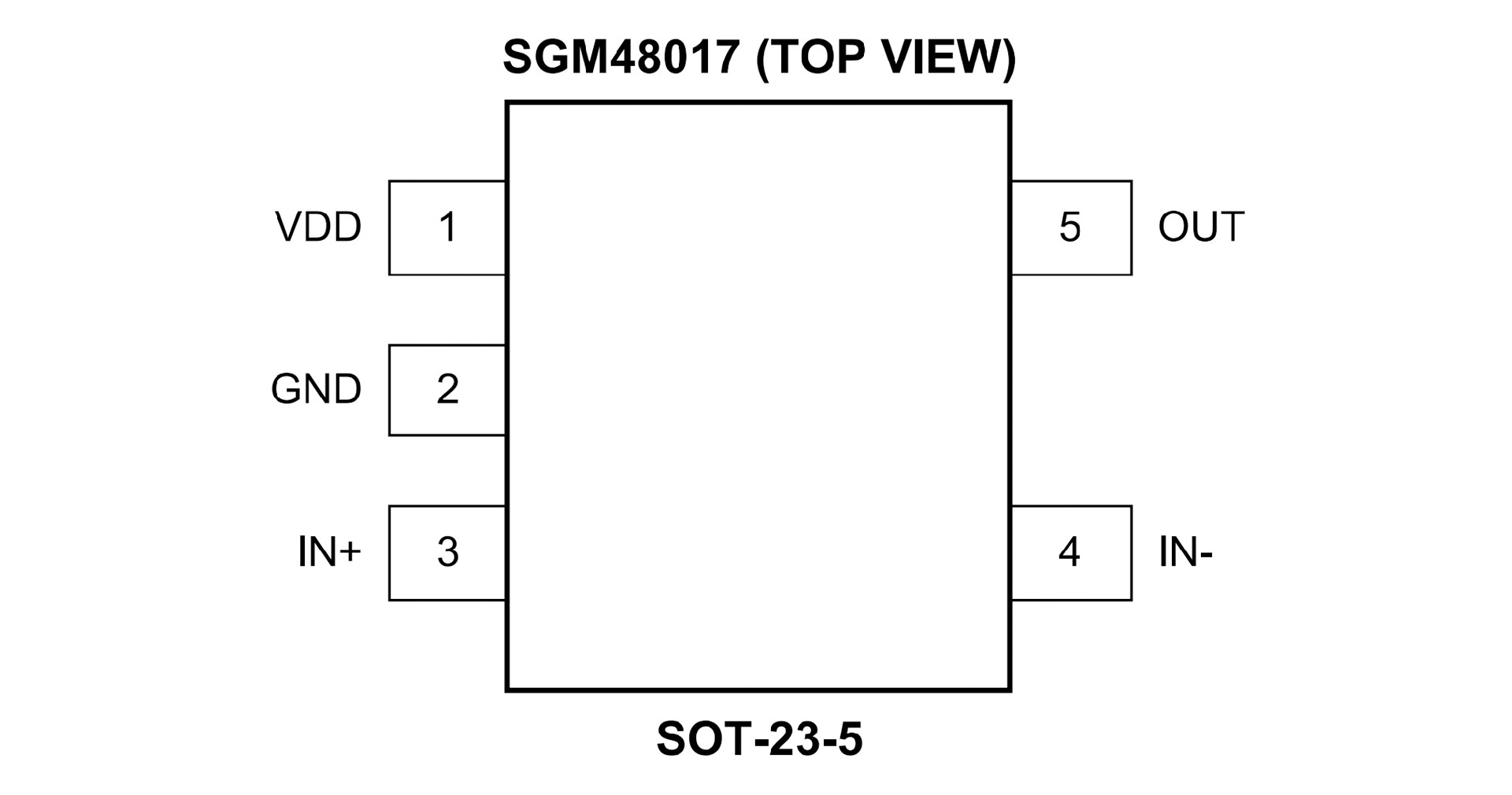

PIN CONFIGUTION
