SGM4808.pdf
No.11208
● Wide Voltage Operation: 2.7V to 12V
● Low On-Resistance from Audio Signals Input to Output: 1Ω (TYP)
● -VCC to +VCC Rail-to-Rail Low Distortion Audio Signals Passing
● Fast Switching Times
● High Off-Isolation
● Very Low Crosstalk
● 1.8V Logic Compatible Control Pin
● -40℃ to +85℃ Operating Temperature Range

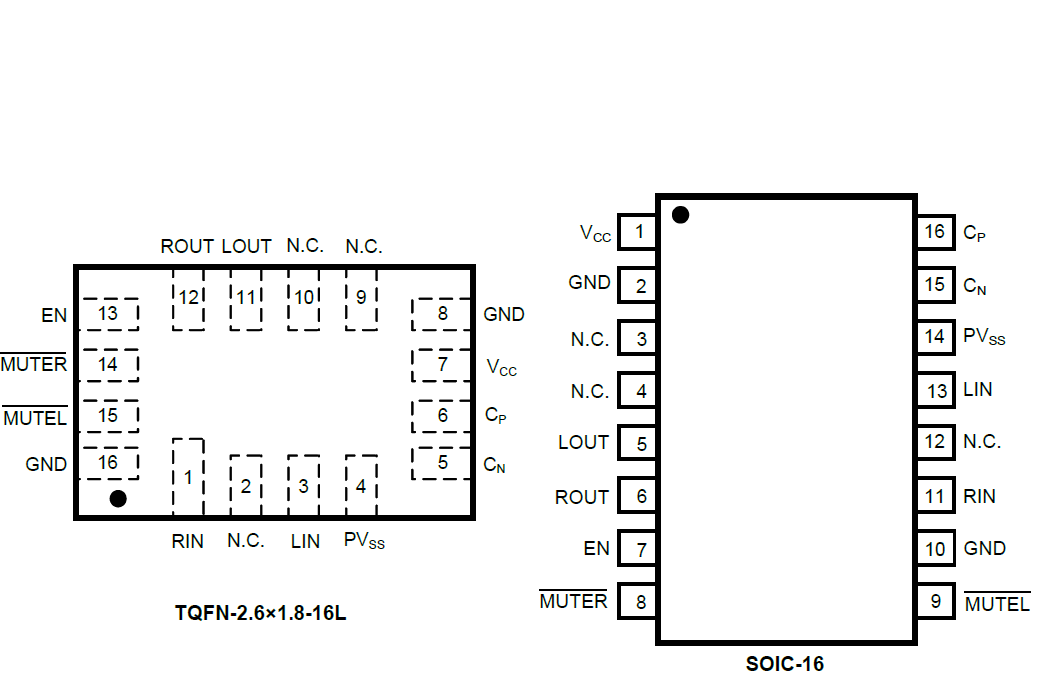

● Available in Green TQFN-2.6×1.8-16L and SOIC-16 Packages

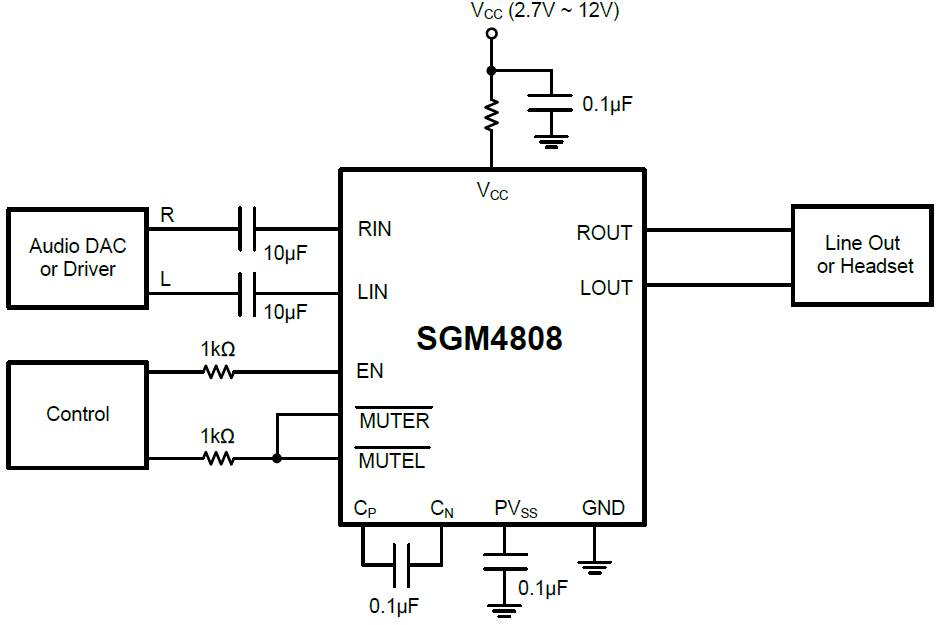

The SGM4808 is an audio click-pop eliminator that is designed to operate from a single 2.7V to 12V power supply. Targeted applications include HiFi level audio sub-system in battery powered equipment or professional audio system.
The SGM4808 can pass -VCC to +VCC wide range positive and negative audio signals with very low distortion. The SGM4808 can eliminate the click-pop noise under the control of external processor.
The SGM4808 is available in Green TQFN-2.6×1.8-16L and SOIC-16 packages. It operates over an ambient temperature range of -40℃ to +85℃.
