SGM48510.pdf
No.11698
? High Current Drive Capability: ±10A
? TTL/CMOS Compatible Inputs Independent of Supply Voltage
? High Reverse Current Capability (10A) Peak
? 4ns Typical Rise and 4ns Typical Fall Times with 1.8nF Load
? Fast Propagation Delay Times of 13ns with Input Falling and
13ns with Input Rising
? Input Voltage Range: 4.5V to 24V
? Split Output Configuration
? Dual Input Design Offering Drive Flexibility

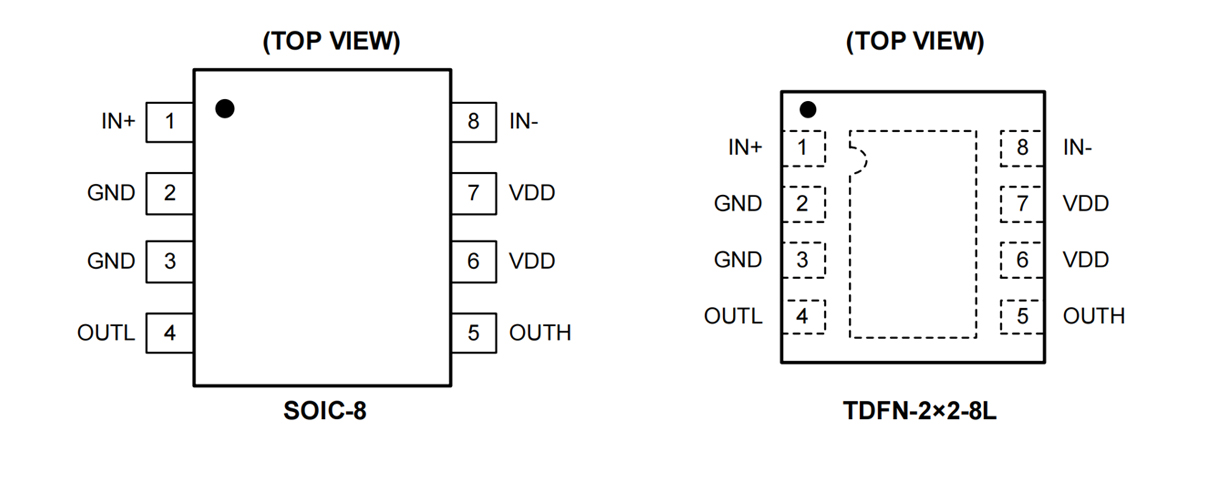

? Available in Green SOIC-8 and TDFN-2×2-8L Packages

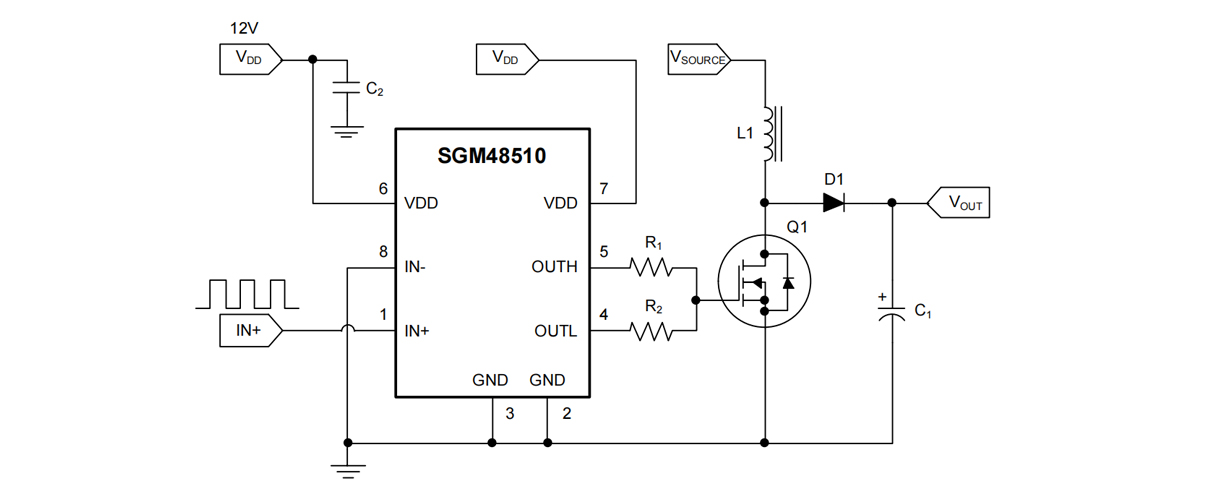

The SGM48510 is a single low-side MOSFET driver. It is capable of providing large peak currents into capacitive loads. This driver can deliver a 7A peak current at the Miller plateau region to help reduce the Miller effect during MOSFETs switching transitions.
It exhibits a split output configuration allowing the user to control the turn-on and turn-off slew rates. The SGM48510 is available in Green SOIC-8 and TDFN-2×2-8L packages.
