SGM48755.pdf
No.11130
● Guaranteed On-Resistance 24Ω (TYP) with +5V Supply
● Guaranteed On-Resistance Match Between Channels
● “T” Type Switch
● Low Off Leakage Current 1nA (TYP) at +25℃
● Low On Leakage Current 1nA (TYP) at +25℃
● Optimized Rise Time and Fall Time of ADDA and ADDB Control
Pins to Reduce Clock Feedthrough Effect
● 2.5V to 5.5V Single-Supply Operation
● 1.8V Logic Compatible
● Low Distortion: 0.35% (RL = 600Ω, f = 20Hz to 20kHz)
● High Off-Isolation: -80dB (RL = 50Ω, f = 1MHz)
● -40℃ to +85℃ Operating Temperature Range

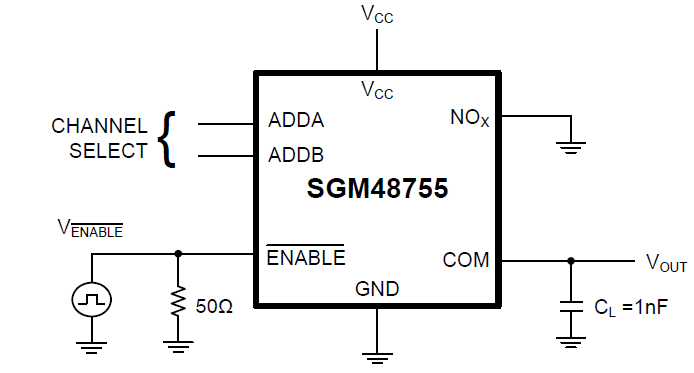

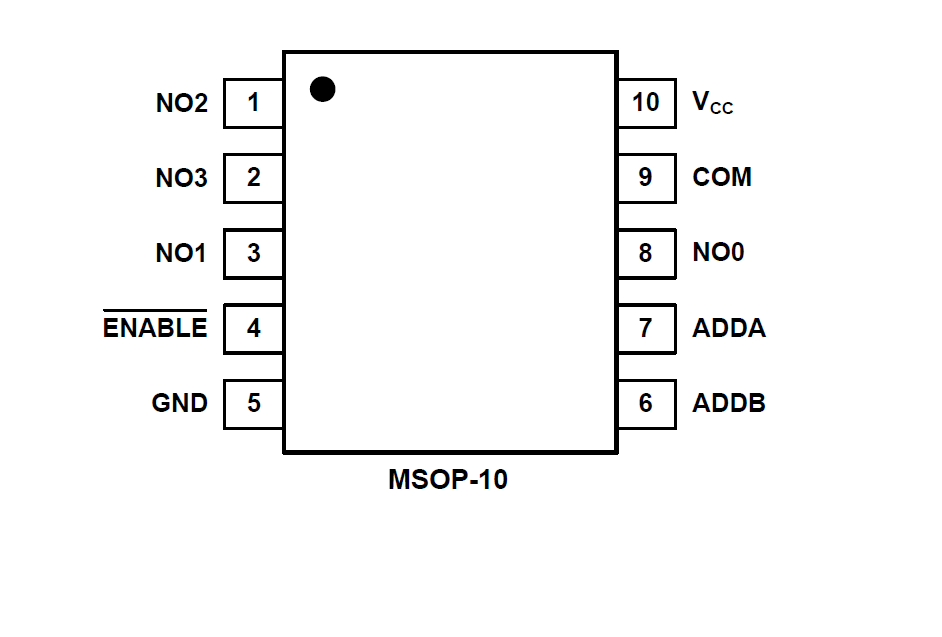

● Available in Green MSOP-10 Package
The SGM48755 is a CMOS analog switch configured as a 4:1 multiplexer. This CMOS device can operate from 2.5V to 5.5V single supplies. Each switch can handle rail-to-rail analog signals. The off leakage current is only 1nA (TYP) at +25℃. All digital inputs can support 1.8V logic control I/O.
The SGM48755 is available in Green MSOP-10 package. It operates over an ambient temperature range of -40℃ to +85℃.
