SGM6021.pdf
No.10986
● Industry's Highest Efficiency at Low Output Currents:
Up to 90% with IOUT = 0.1mA
● Ultra-Low Power Step-Down Converters
● 200mA Maximum Output Current
● Output Voltage Programmable in Operation
● 1.8V to 5.5V Input Operating Range
● 400nA Quiescent Current
● 100% Duty Cycle (Pass Mode)

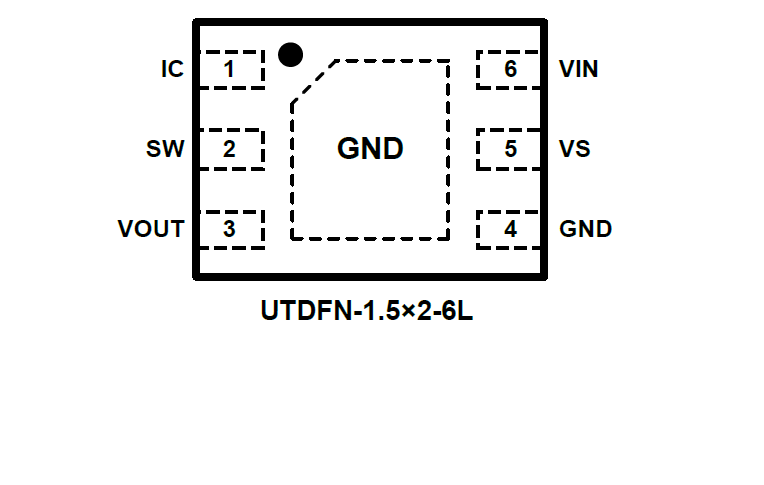

● Available in Green UTDFN-1.5×2-6L Package
● -40℃ to +85℃ Ambient Temperature Range

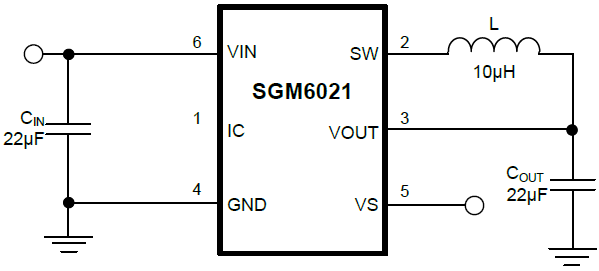

The SGM6021 family provides a highly integrated ultra-low power step-down converter solution that is well suited for meeting the special needs of ultra-low power applications such as energy harvesting. The SGM6021 family provides the system with an externally programmable regulated supply to preserve the overall efficiency of the power-management stage compared to a linear step-down converter. The regulators are intended to step-down the voltage from an energy storage element such as a battery or super capacitor to supply the rail to low-voltage electronics. The regulated output has been optimized to provide high efficiency across low output currents (<10μA) to high currents (200mA).
The SGM6021 family integrates an optimized hysteretic controller for low-power applications. The internal circuitry uses a time-based sampling system to reduce the average quiescent current. The output regulator levels are programmed through VS pin.
