SGM6510.pdf
No.11117
? Supply Range: 2.7V to 5.5V
? 16 × 4 Crosspoint Switch
? One-to-One or One-to-Many Output Switching
? Supports Bidirectional Transmission
? I2C-Compatible Digital Interface, Standard Mode
? Supports XVGA (1280 × 960) Video
? Supports -110dB Off Isolation for 1kHz Audio Signal
? Supports -110dB Channel-to-Channel Crosstalk for 1kHz Audio Signal
? Supports Low Noise Analog Signal Switching
? -3dB Bandwidth: 120MHz

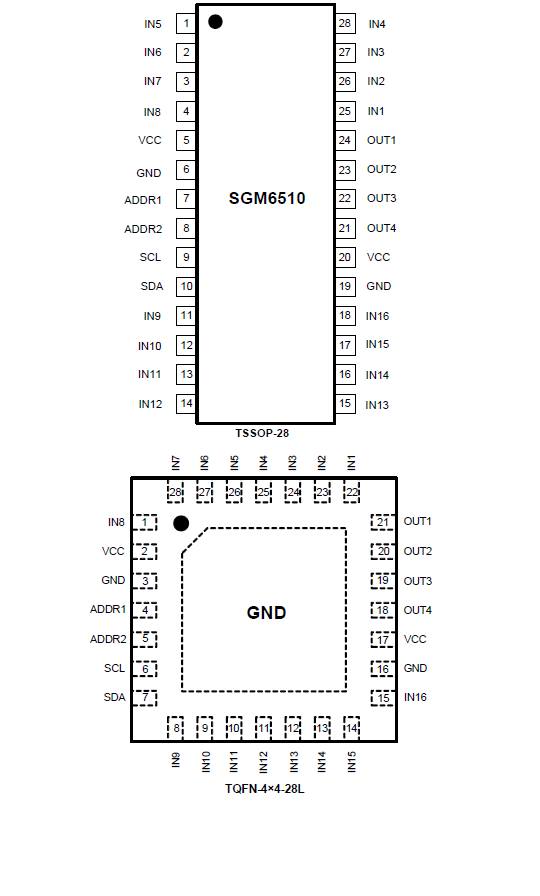

? Available in Green TSSOP-28 and TQFN-4×4-28L Packages
? Extended Industrial Temperature Range: -40℃ to +85℃

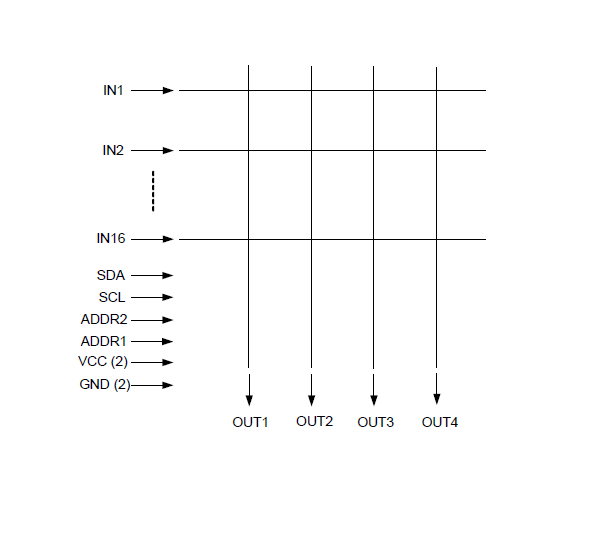

The SGM6510 crosspoint switch provides flexible options for applications. The 16 inputs can be routed to any of 4 outputs. Each input can be routed to one or more outputs, but only one input can be routed to any one output. More than one output can connect to the same input channel for one-to-many routing. The input to output routing is controlled via an I2C-compatible digital interface. For analog signal switching application, 4 outputs can be 4 single outputs or 2 differential outputs depending on configuration. Crosspoint structure can reduce PCB complexity. For digital signal switching, SGM6510 supports up to 400kHz digital signal.
The resistance profile of SGM6510 is very flat over the full analog input range, ensuring excellent linearity and low distortion when switching audio signals. For video application, SGM6510 supports up to 1080p or VGA video.
