SGM6513.pdf
No.11114
? 24Ω Typical On-Resistance
? 12Ω On-Resistance Flatness
? ±3.3V to ±6V Dual Supplies Operation
? 3.3V to 13.2V Single Supply Operation
? -3dB Bandwidth: 105MHz
? No VL Supply Required
? 3V Logic-Compatible Inputs
? Rail-to-Rail Operation

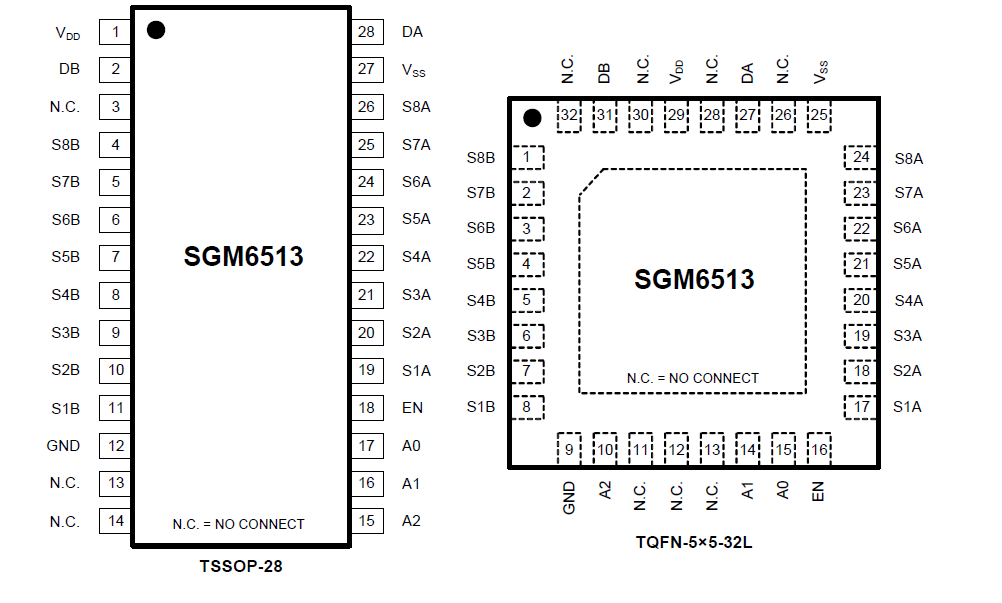

? Available in Green TQFN-5×5-32L and TSSOP-28 Packages
? -40℃ to +85℃ Operating Temperature Range

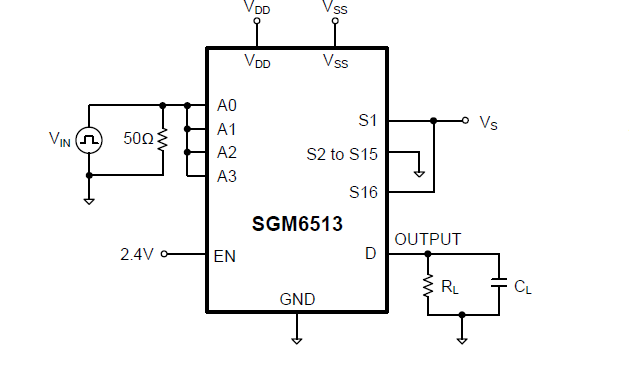

The SGM6513 is a high speed monolithic analog multiplexer comprising of 8 differential channels. The SGM6513 switches one of 8 differential inputs to a
common differential output, as determined by the 3-bit binary address lines (A0, A1 and A2). An EN input enables or disables the device. When disabled, all channels switch off; when enabled, each channel conducts equally well in both directions and has an input signal range that extends to the supplies.
The 24Ω on-resistance and on-resistance flatness of these switches make them ideal solutions for data acquisition and gain switching applications where low distortion is critical.
SGM6513 is available in Green TQFN-5×5-32L and TSSOP-28 packages. It operates over an ambient temperature range of -40℃ to +85℃
