SGM6602.pdf
No.11006
● Input Voltage Range: 1.8V to 5.5V, 1.6V after Start-Up
● Output Voltage Up to 20V
● Integrated Isolation Switch
● 1050mA (TYP) Switch Current
● Up to 85% Efficiency at 3.6V Input and 12V Output
● 0.1μA Ultra-Low Shutdown Current
● Power-Save Operation Mode at Light Load
● Internal 5ms Soft-Start Time
● True Disconnection between Input and Output during Shutdown
● Output Short Circuit Protection
● Output Over-Voltage Protection
● Thermal Shutdown Protection
● -40℃ to +85℃ Operating Temperature Range
● Available in Green WLCSP-0.8×1.2-6B and TDFN-2×2-6L Packages
The SGM6602 is a highly integrated boost converter designed for applications requiring high voltage and tiny solution size such as PMOLED panel and sensor module. The SGM6602 integrates a 20V power switch, input/output isolation switch. It can output up to 20V from input of a Li+ battery or two cell alkaline batteries in series.

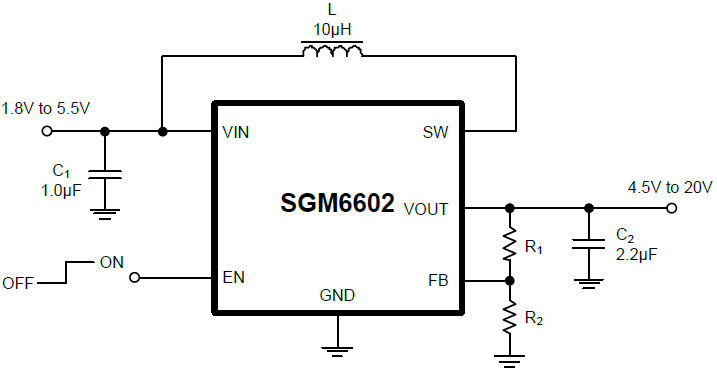

The SGM6602 operates with a switching frequency at 1.15MHz. This allows the use of small external components. The SGM6602 has an internal default 12V output voltage setting by connecting the FB pin to the VIN pin. Thus it only needs three external components to get 12V output voltage. Together with CSP package, the SGM6602 gives a very small overall solution size. The SGM6602 has typical 1050mA switch current limit. It has 5ms built-in soft-start time to minimize the inrush current. When the SGM6602 is in shutdown mode, the isolation switch disconnects the output from input to minimize the leakage current. The SGM6602 also implements output short circuit protection, output over-voltage protection and thermal shutdown.
