SGM6608.pdf
No.10997
● 2.4V to 5.0V Input Voltage Range
● Adjustable 3.0V to 5.0V Output Voltage
● Internal Compensation
● 660kHz Switching Frequency
● Synchronous P-Channel MOSFET
● Programmable Peak Current Limit (Up to 4A)
● True Load Disconnect in Shutdown
● Reverse Current Block When Enabled
● Up to 95% Efficiency
● Power-Good Indication
● Very Low 55μA No-Load Operating Current
● Less than 1μA Shutdown Current
● 5.55V Output Over-Voltage Protection
● Thermal Shutdown Protection
● Output Short-Circuit Protection
● Soft-Start to Reduce Input Peak Current

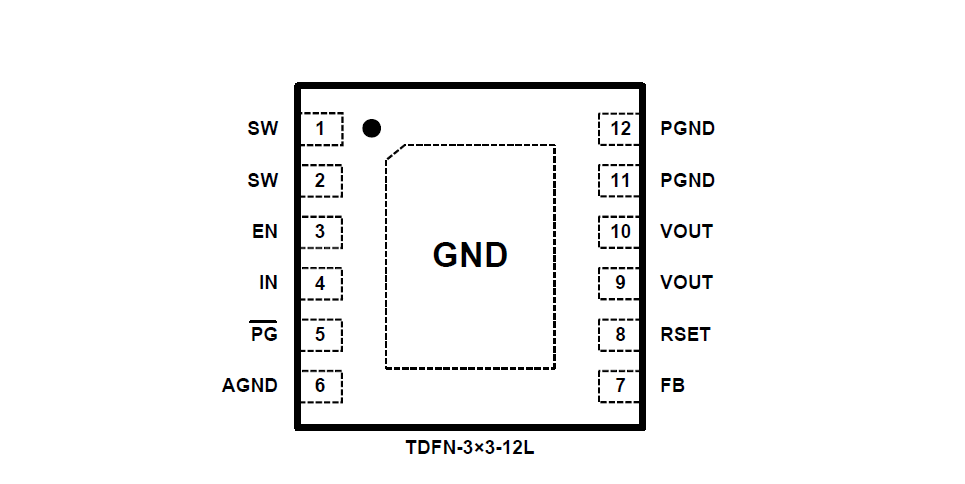

● Available in Green TDFN-3×3-12L Package
● -40℃ to +85℃ Operating Temperature Range

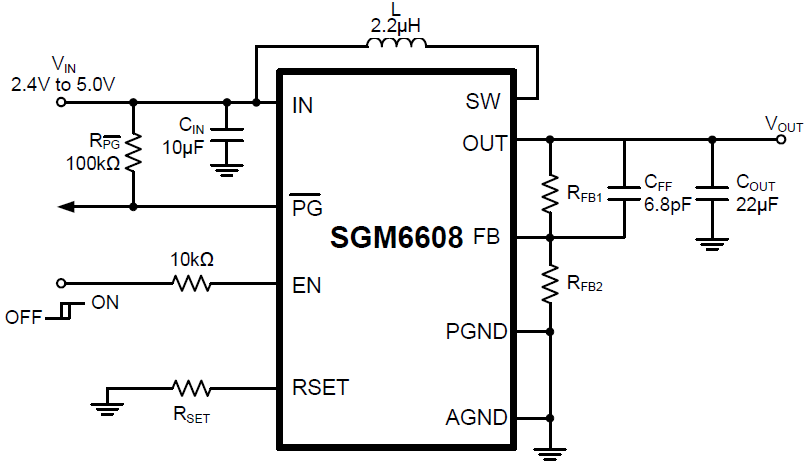

The SGM6608 is a high current, synchronous step-up regulator with a programmable peak current limit. It is ideal to prevent the output current of SGM6608 from overloading. The SGM6608's internal compensation is optimized for the large output capacitors needed to support the output voltage during large load pulses. The output voltage may be programmed from 3.0V to 5.0V by an external resistor divider. Light load switching frequency modulation and low quiescent current maintains high efficiency performance for light load mode conditions.
The peak current limit can be set by an external resistor RSET. The SGM6608 includes an internal over-voltage protection and a power-good indication. SGM6608 has an internal soft-start circuit to reduce the input peak current.
