SGM66099B.pdf
No.13516
? Operating Input Voltage Range: 1.15V to 5.2V
? Ultra-Low Quiescent Current
1.7μA (TYP) Ultra-Low IQ into VOUT Pin
0.05μA (TYP) Ultra-Low IQ into VIN Pin
? 1.2MHz Fixed Frequency Operation
? Adjustable Output Voltage from 2.5V to 5.2V
? 5.0V Fixed Output Voltage Version
? Power-Save Mode for Improved Efficiency at Low
Output Power
? Regulated Output Voltage in Down Mode
? True Disconnection During Shutdown
? Up to 93% Efficiency from 10mA to 300mA Load
? -40℃ to +85℃ Operating Temperature Range

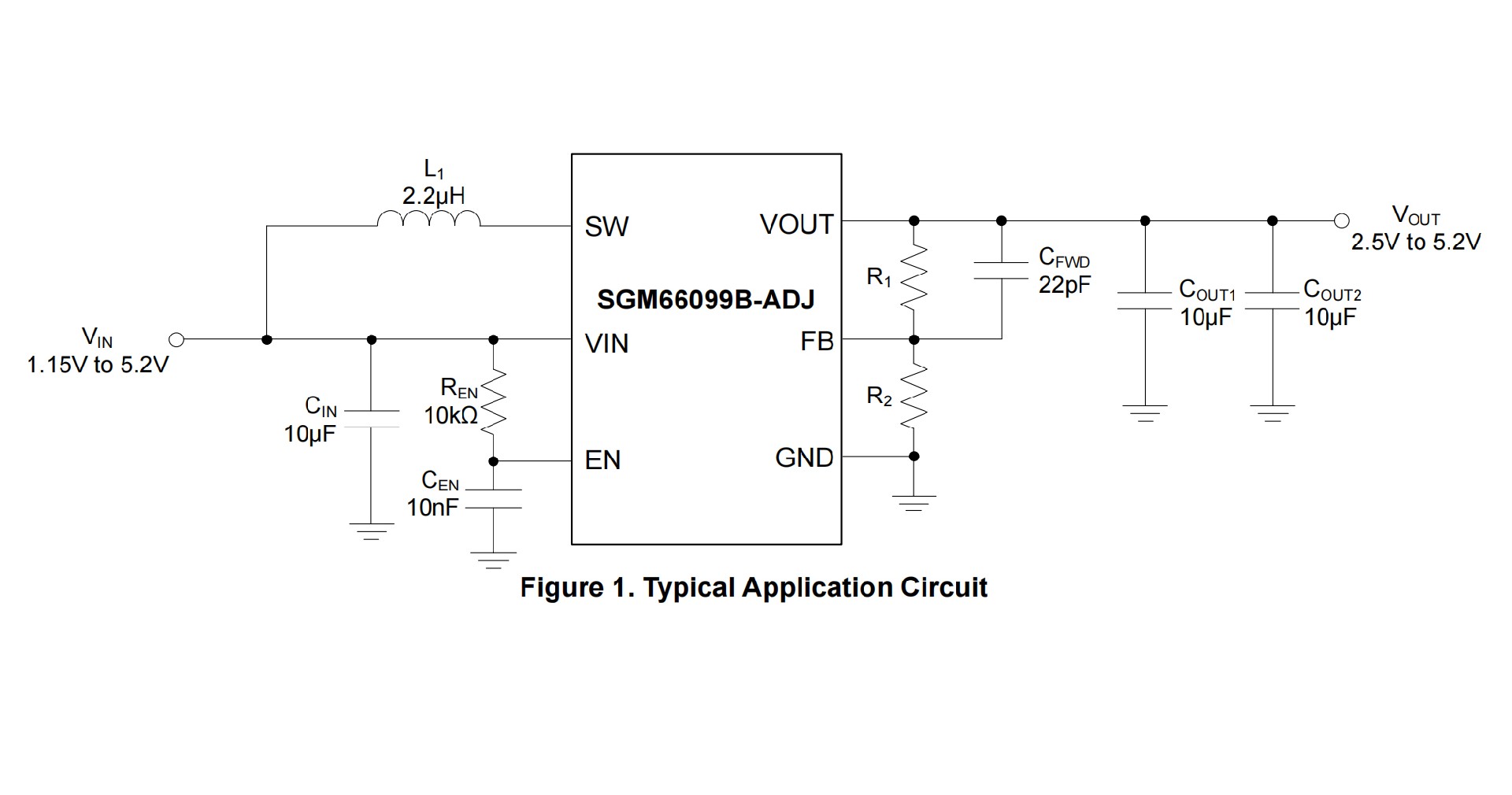

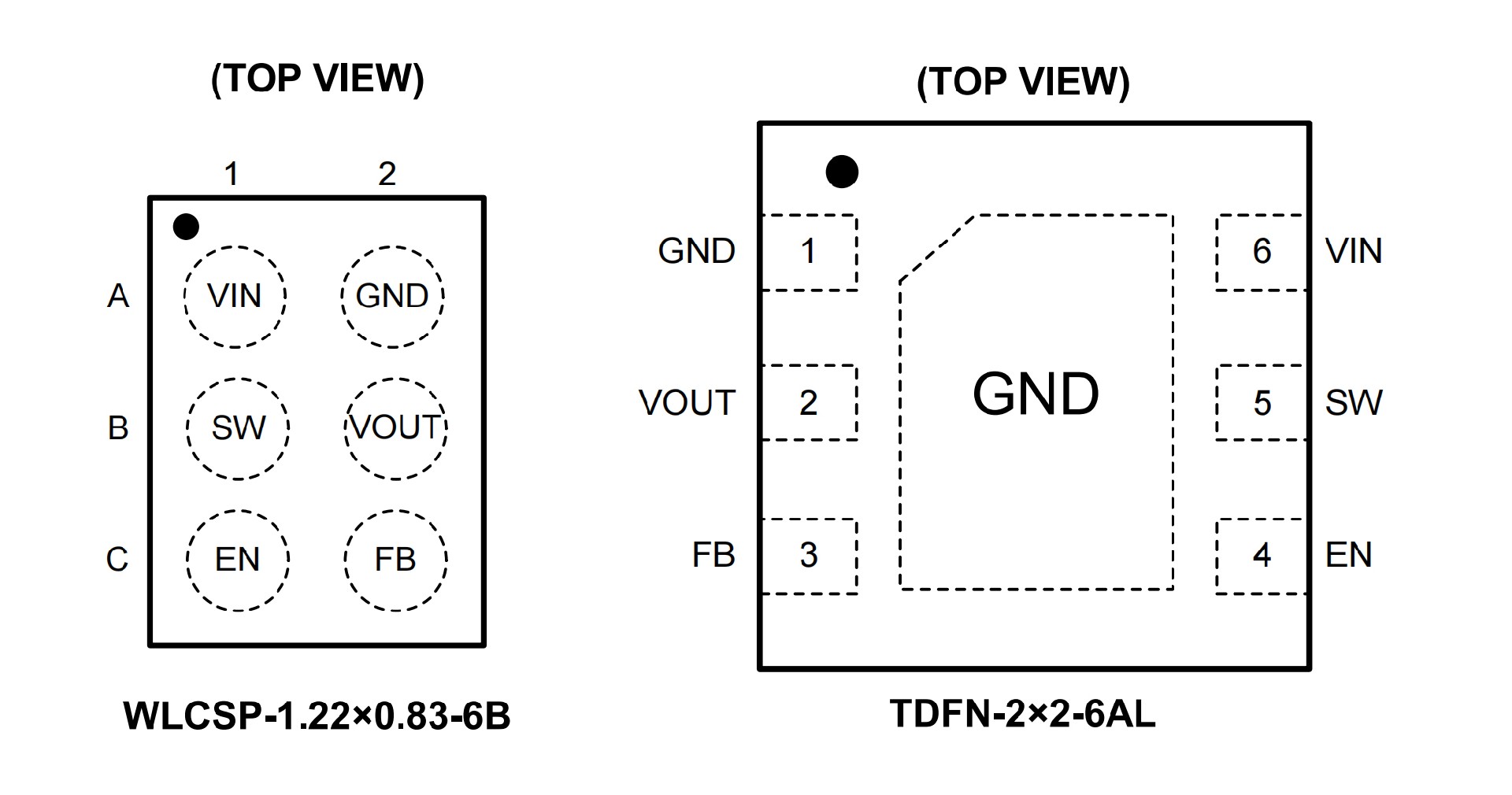

? Available in Green WLCSP-1.22×0.83-6B and
TDFN-2×2-6AL Packages
The SGM66099B is an ultra-low quiescent current synchronous boost converter. 1.15V to 5.2V operation input voltage is suitable for Li-Mn battery, NiMH and Li-Ion rechargeable batteries. The 1.7μA (TYP) quiescent current maximizes the light load efficiency and also increases the effective battery operation time. In addition, the high-side synchronous rectifier provides output disconnect feature which minimizes unnecessary current drawn from the battery during shutdown mode.
