SP6T Diversity RF Switch.
SGM72006
SGM72006.pdf
SGM72006.pdf
No.13371
FEATURES
? Supply Voltage Range: 2.4V to 3.4V
? GPIO Controller
? Low Insertion Loss: 0.6dB (TYP) at 2.7GHz
? Operating Frequency Range: 0.1GHz to 3GHz
? High Isolation: 20dB (MIN) at 2.7GHz
? Advanced Silicon-On-Insulator (SOI) Process
? No External DC Blocking Capacitors Required
? Available in a Green UTQFN-2×2-14L Package
DESCRIPTION
The SGM72006 is a single-pole/six-throw (SP6T) antenna switch, which supports from 0.1GHz to 3GHz. The device features low insertion loss and high isolation, which make it suitable for diversity reception applications. It also has the advantage of high linearity performance. The SGM72006 is not subject to cellular interference and is applied to multi-mode and multi-band LTE mobile phones.
The SGM72006 has the ability to integrate SP6T RF switch and GPIO controller on a SOI chip. Internal driver and decoder for switch control signals are offered by the GPIO controller, which makes it flexible in RF path band and routing selection.No external blocking capacitor requirements on the RF paths as long as no external DC voltage is applied which can save PCB area and cost.
The SGM72006 is available in a Green UTQFN-2×2-14L package.

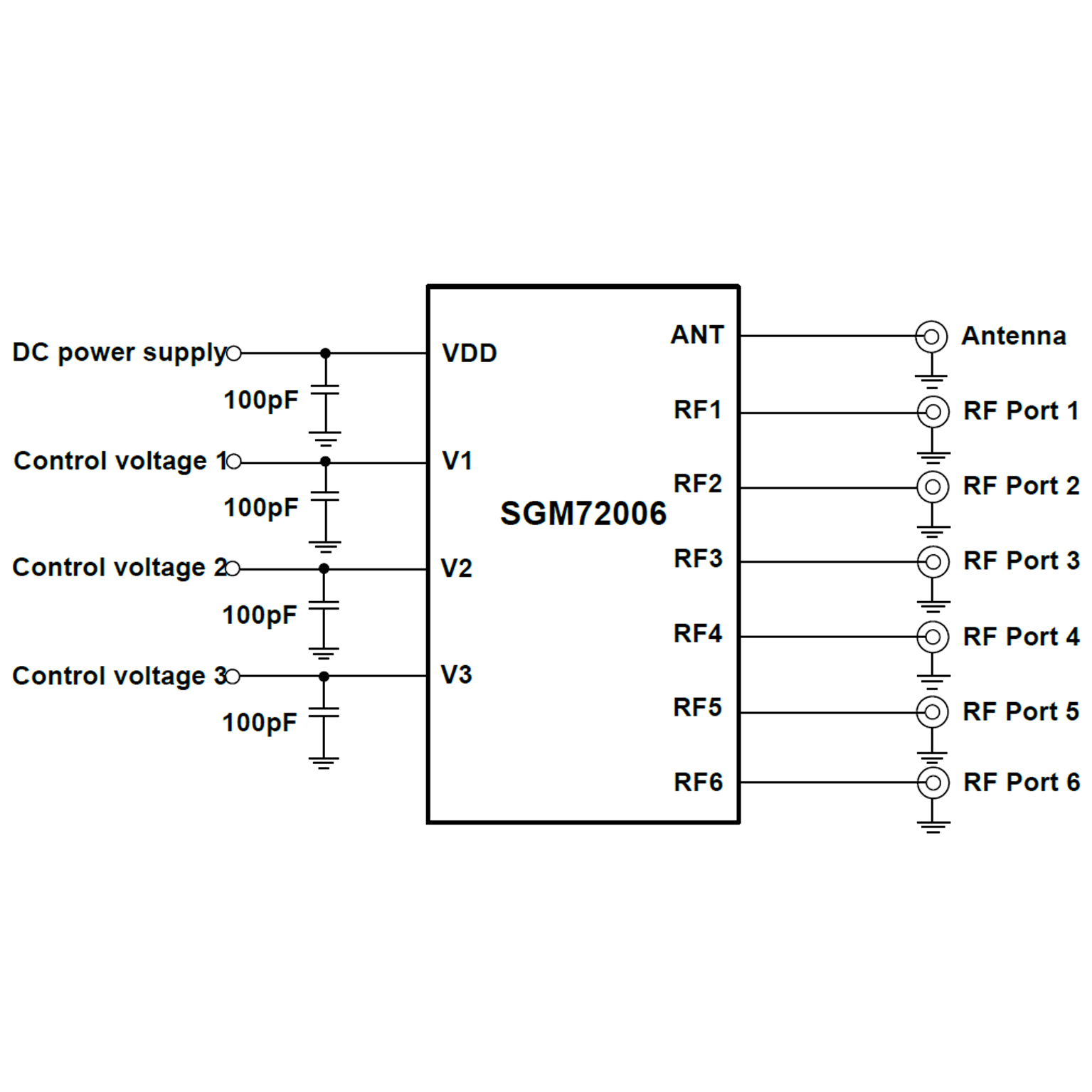

APPLICATION CIRCUIT

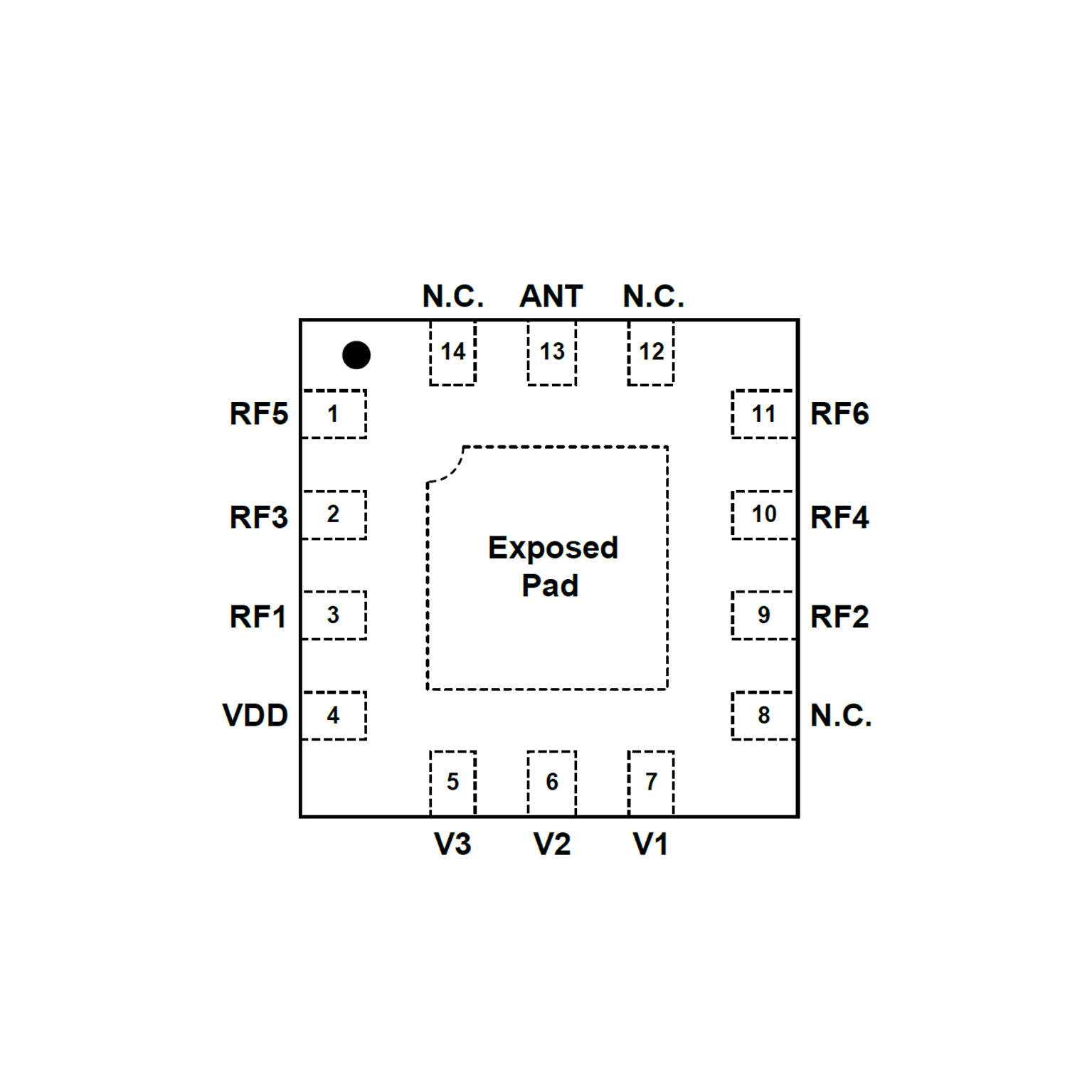

PIN CONFIGUTION
