Automotive, 11MHz, Rail-to-Rail I/O CMOS Operational Amplifier.
SGM722Q
SGM722Q.pdf
SGM722Q.pdf
No.14068
FEATURES
? AEC-Q100 Qualified for Automotive Applications Device Temperature Grade 1
TA = -40℃ to +125℃
? Input Offset Voltage: 1.5mV (TYP)
? High Gain-Bandwidth Product: 11MHz
? High Slew Rate: 7V/μs
? Settling Time to 0.1% with 2V Step: 0.4μs
? Overload Recovery Time: 0.5μs
? Low Noise: 8.5nV/√Hz at 10kHz
? Rail-to-Rail Input and Output
? Supply Voltage Range: 2.1V to 5.5V
? Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
? Low Quiescent Current: 2.4mA (TYP)
? Available in Green SOIC-8 and MSOP-8 Packages
DESCRIPTION
The SGM722Q is a dual, low voltage, low noise and low power operational amplifier for automotive applications. This device can operate from 2.1V to 5.5V single supply, and consumes low quiescent current.
The SGM722Q features a 1.5mV typical input offset voltage. The minimum input common mode voltage is within 0.1V below the negative rail, and the output swing is rail-to-rail with heavy loads. It exhibits a high gain-bandwidth product of 11MHz and a slew rate of 7V/μs. These specifications make the operational amplifier appropriate for various applications.
The SGM722Q is available in Green SOIC-8 and MSOP-8 packages. It is specified over the extended industrial temperature range (-40℃ to +125℃).
This device is AEC-Q100 qualified (Automotive Electronics Council (AEC) standard Q100 Grade 1) and it is suitable for automotive applications.
APPLICATION CIRCUIT

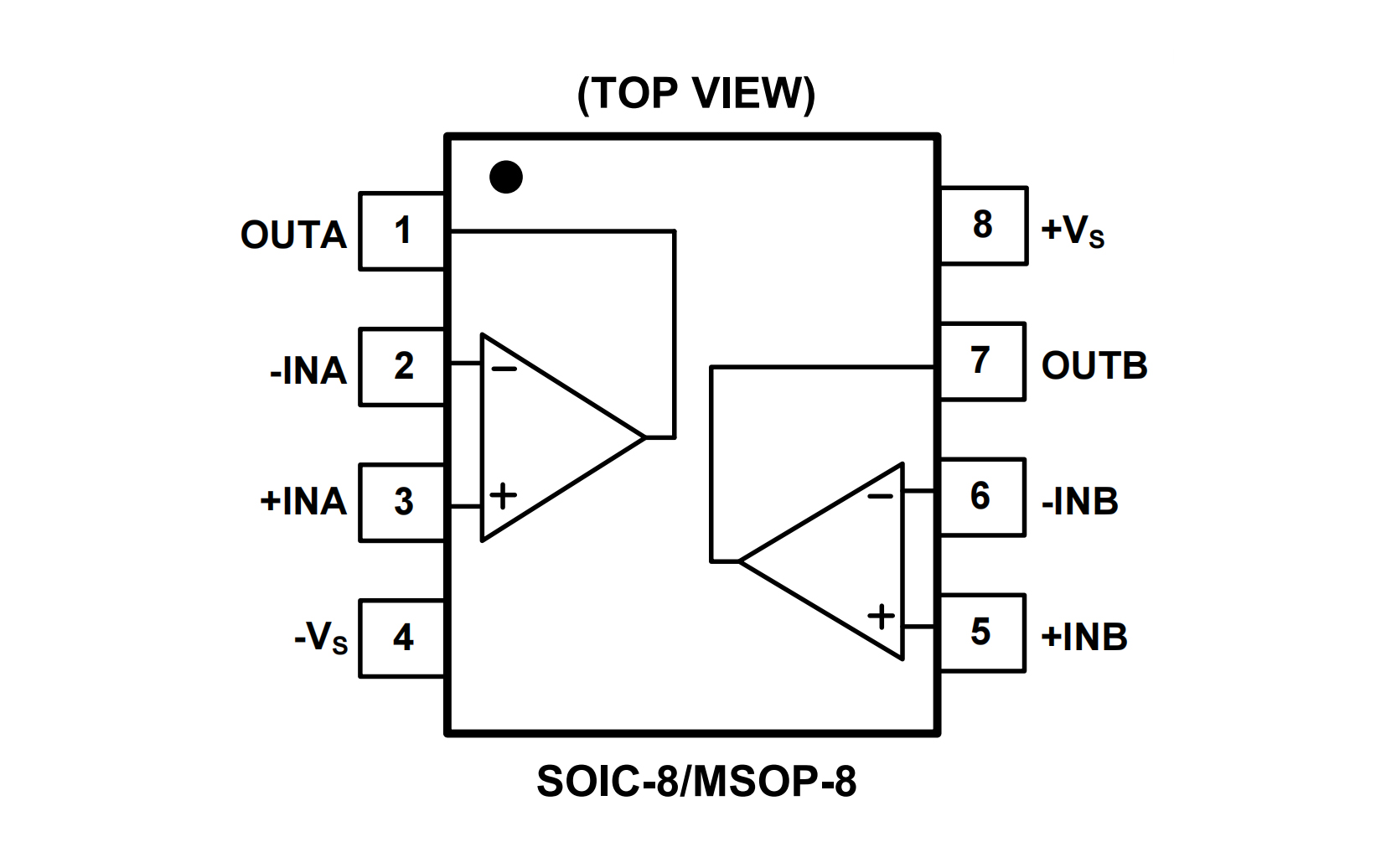

PIN CONFIGUTION
