SGM8040-2.pdf
No.11335
● Low Quiescent Current: 550nA/Amplifier (TYP)
● Rail-to-Rail Input and Output
● Gain-Bandwidth Product: 11kHz (TYP)
● Wide Supply Voltage Range: 1.4V to 5.5V
● Unity Gain Stable
● Low Offset Voltage: 230μV (MAX)
● -40℃ to +85℃ Operating Temperature Range
The high precision single SGM8040-1 and dual SGM8040-2 operational amplifiers are guaranteed to operate with a single supply voltage as low as 1.4V, while drawing 550nA/Amplifier (TYP) of quiescent current. These devices are also designed to support rail-to-rail input and output operation. This combination of features supports battery-powered and portable applications.

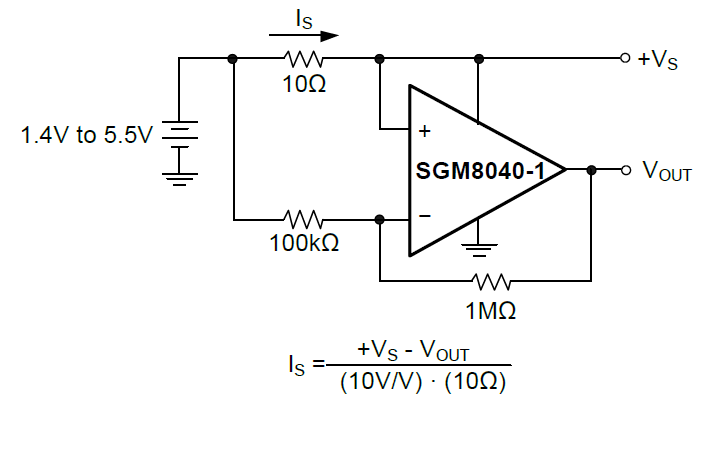

The SGM8040-1/2 have a gain-bandwidth product of 11kHz (TYP) and are unity gain stable. These specifications make the operational amplifiers appropriate for low frequency applications, such as battery current monitoring and sensor conditioning.
