Nano Power Operational Amplifier
SGM8041 SGM8041.pdf

No.10691

FEATURES

? Low Quiescent Current: 710nA (TYP)

? Rail-to-Rail Input and Output
? Gain-Bandwidth Product: 14.5kHz at VS = 5V (TYP)
? Wide Supply Voltage Range: 1.4V to 5.5V
? Unity Gain Stable
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOT-23-5, SOIC-8 and MSOP-8

  Packages

DESCRIPTION

The SGM8041 is guaranteed to operate with a single supply voltage as low as 1.4V, while drawing less than 710nA (TYP) of quiescent current. This device is also designed to support rail-to-rail input and output operation. This combination of features supports battery-powered and portable applications. The SGM8041 has a gain-bandwidth product of 14.5kHz (TYP) and is unity gain stable. These specifications make this operational amplifier appropriate for low frequency applications, such as battery current monitoring and sensor conditioning.

The SGM8041 is offered in single configuration. It is specified for the extended industrial (-40℃ to +85℃) temperature range. The SGM8041 is available in the Green SOT-23-5, SOIC-8 and MSOP-8 packages.

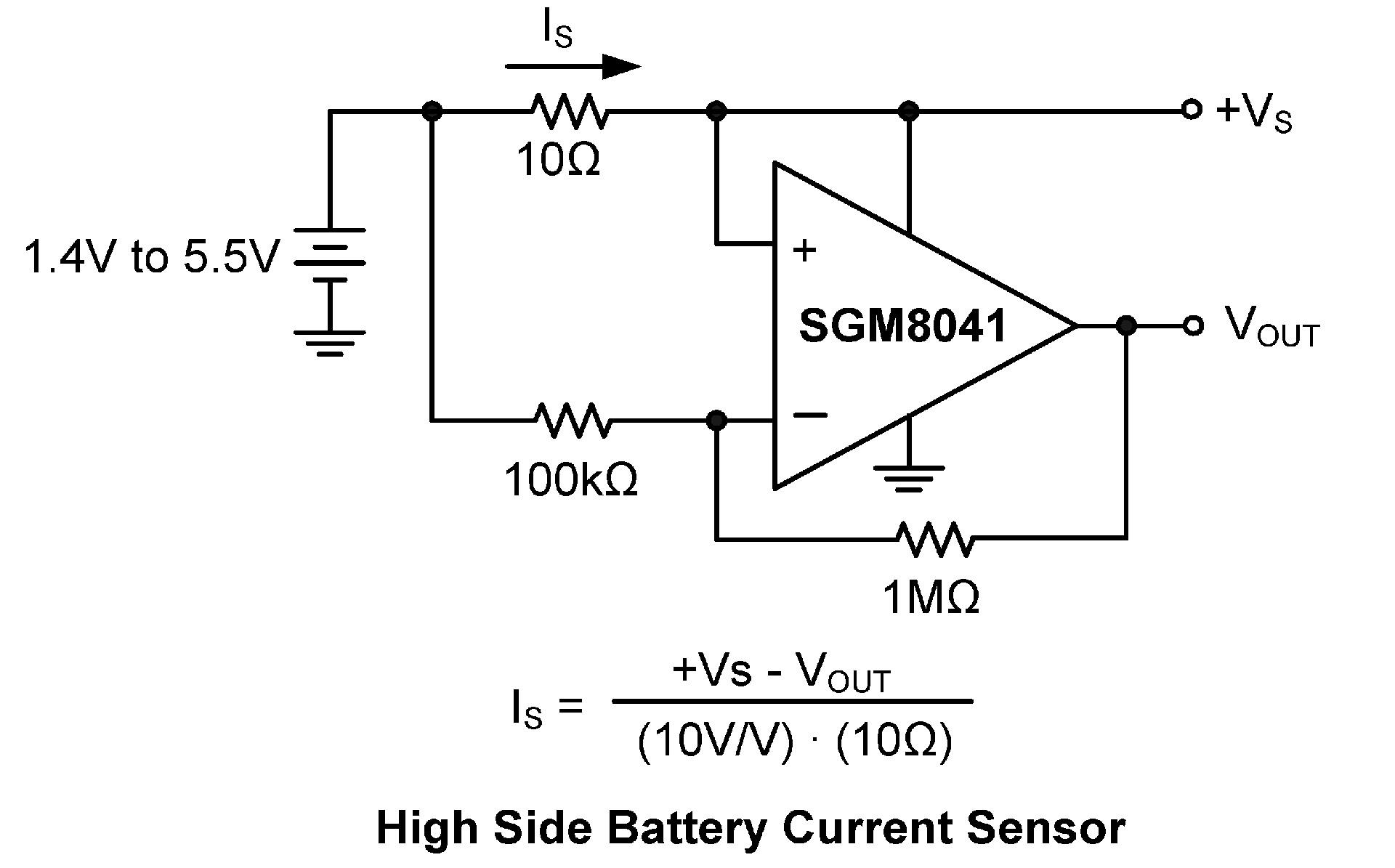

APPLICATION CIRCUIT

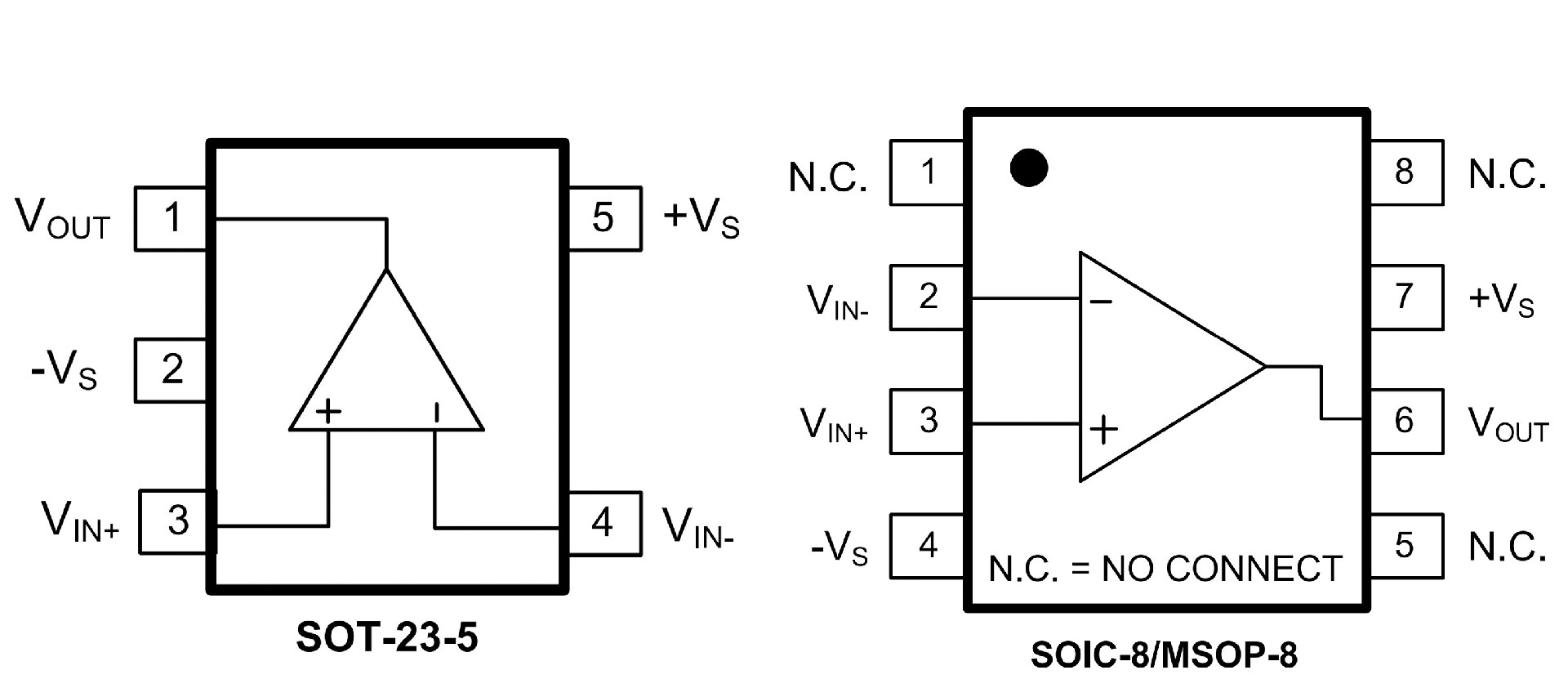

PIN CONFIGUTION
