SGM8045.pdf
No.10711
? Low Quiescent Current: 710nA (TYP)
? Rail-to-Rail Input and Output
? Gain Bandwidth Product: 100kHz (TYP)
? Wide Supply Voltage Range: 1.4V to 5.5V
? Stable for Gains of 10
? -40°C to +85°C Operating Temperature Range

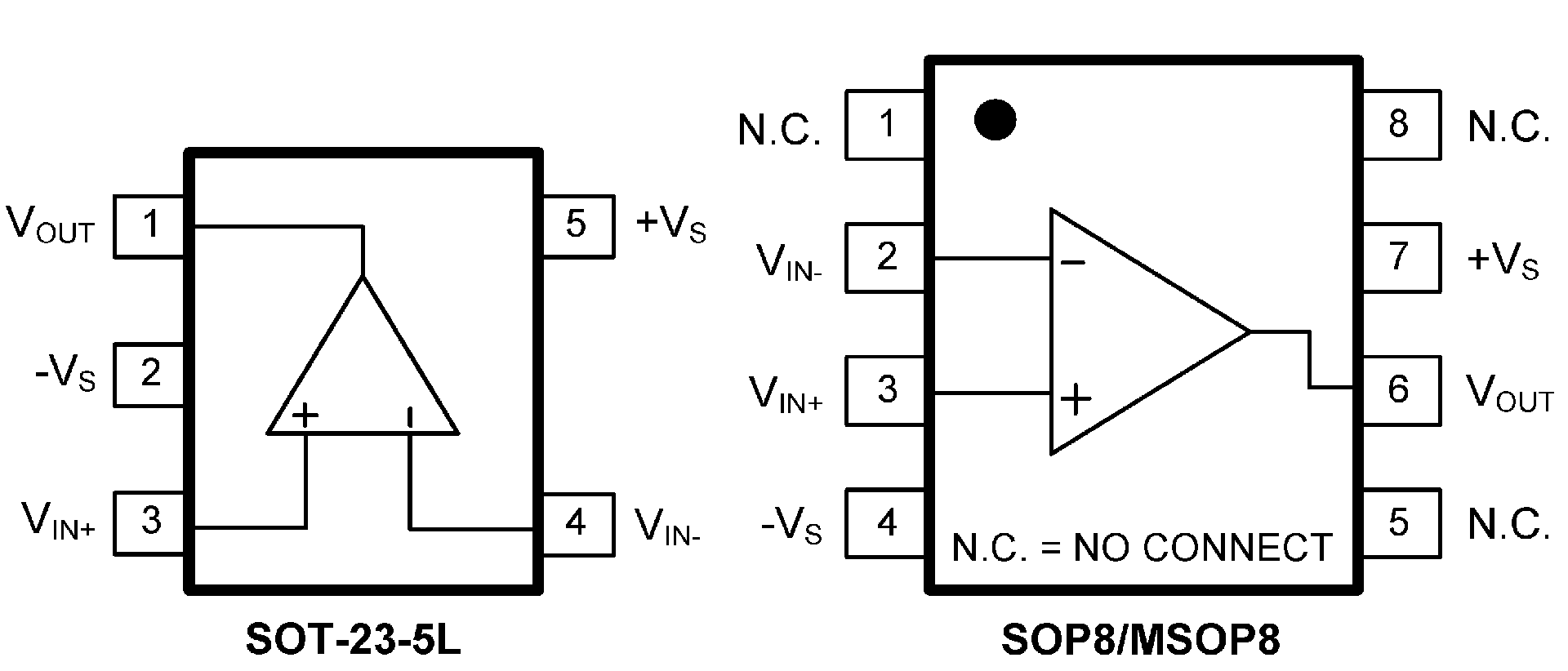

? Available in Green SOT-23-5L, SOP8 and MSOP8 Packages
The SGM8045 operates with a single supply voltage as low as 1.4V, while drawing less than 710nA (TYP) of quiescent current. This device is also designed to support rail-to-rail input and output operation. This combination of features supports battery-powered and portable applications.

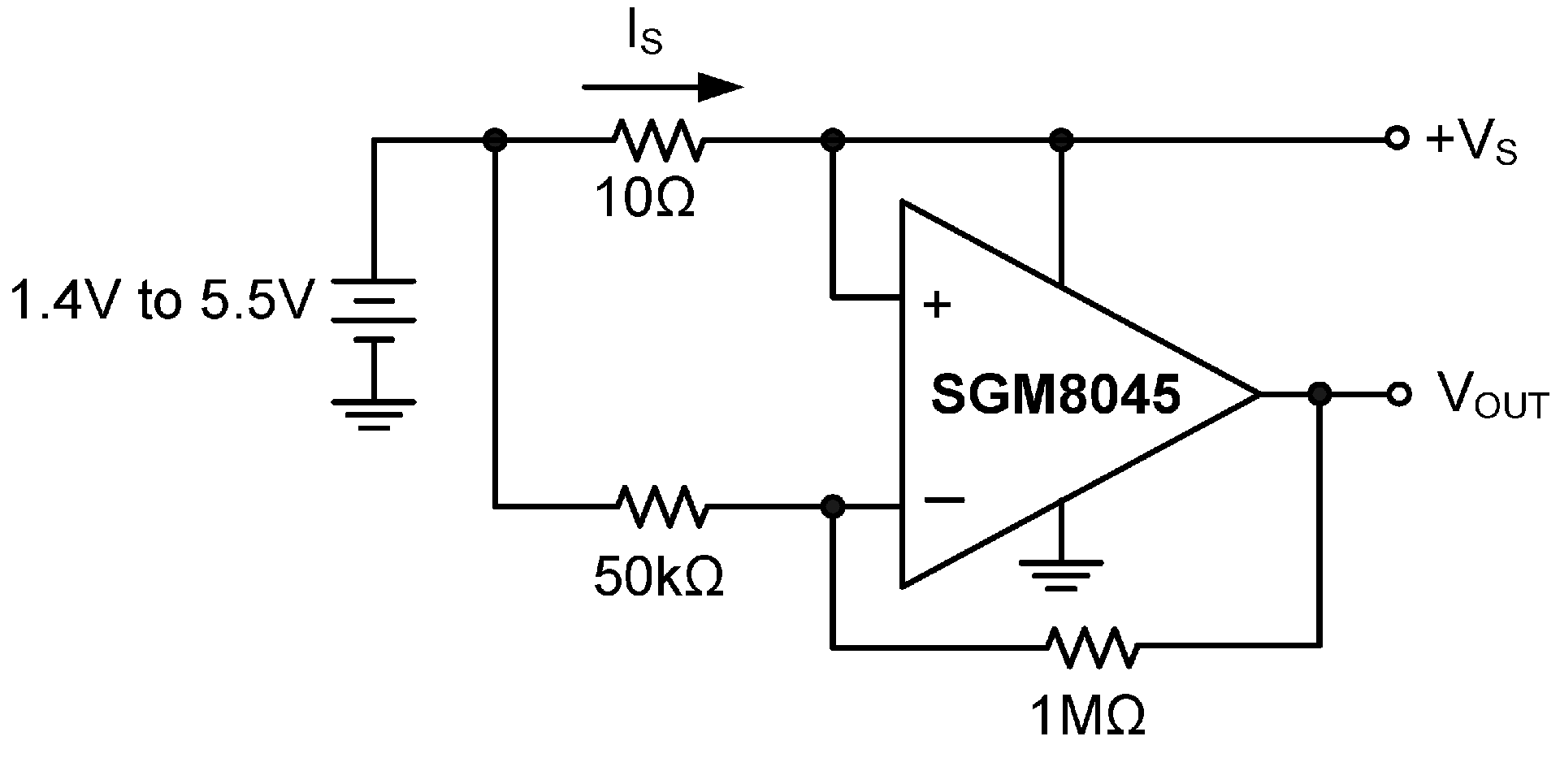

The SGM8045 has a gain-bandwidth product of 100kHz (TYP) and is stable for gains of 10. The combination of characteristics makes the SGM8045 ideal for low frequency applications, such as battery current monitoring and sensor conditioning. The SGM8045 operational amplifier is offered in single configuration and it is specified for the extended industrial (-40℃ to +85℃) temperature range. The SGM8045 is available in the Green SOT-23-5L, SOP8 and MSOP8 packages.
