SGM8048.pdf
No.10713
? Low Quiescent Current: 690nA/Amplifier (TYP)
? Rail-to-Rail Input and Output
? Gain Bandwidth Product: 100kHz (TYP)
? Stable for Gains ≥ 10
? Wide Supply Voltage Range: 1.4V to 5.5V
? -40°C to +85°C Operating Temperature Range

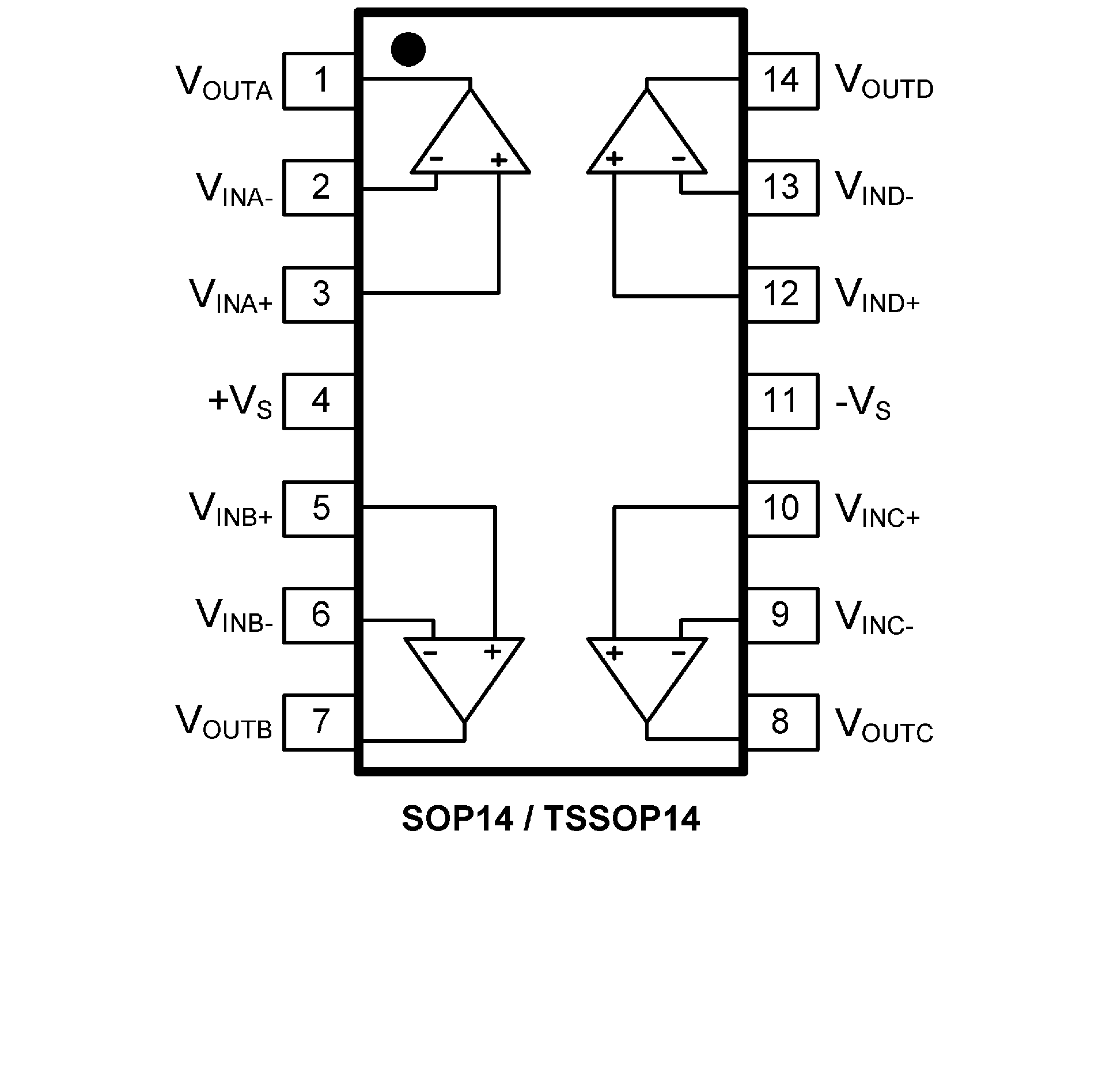

? Available in Green SOP14, TSSOP14 Packages

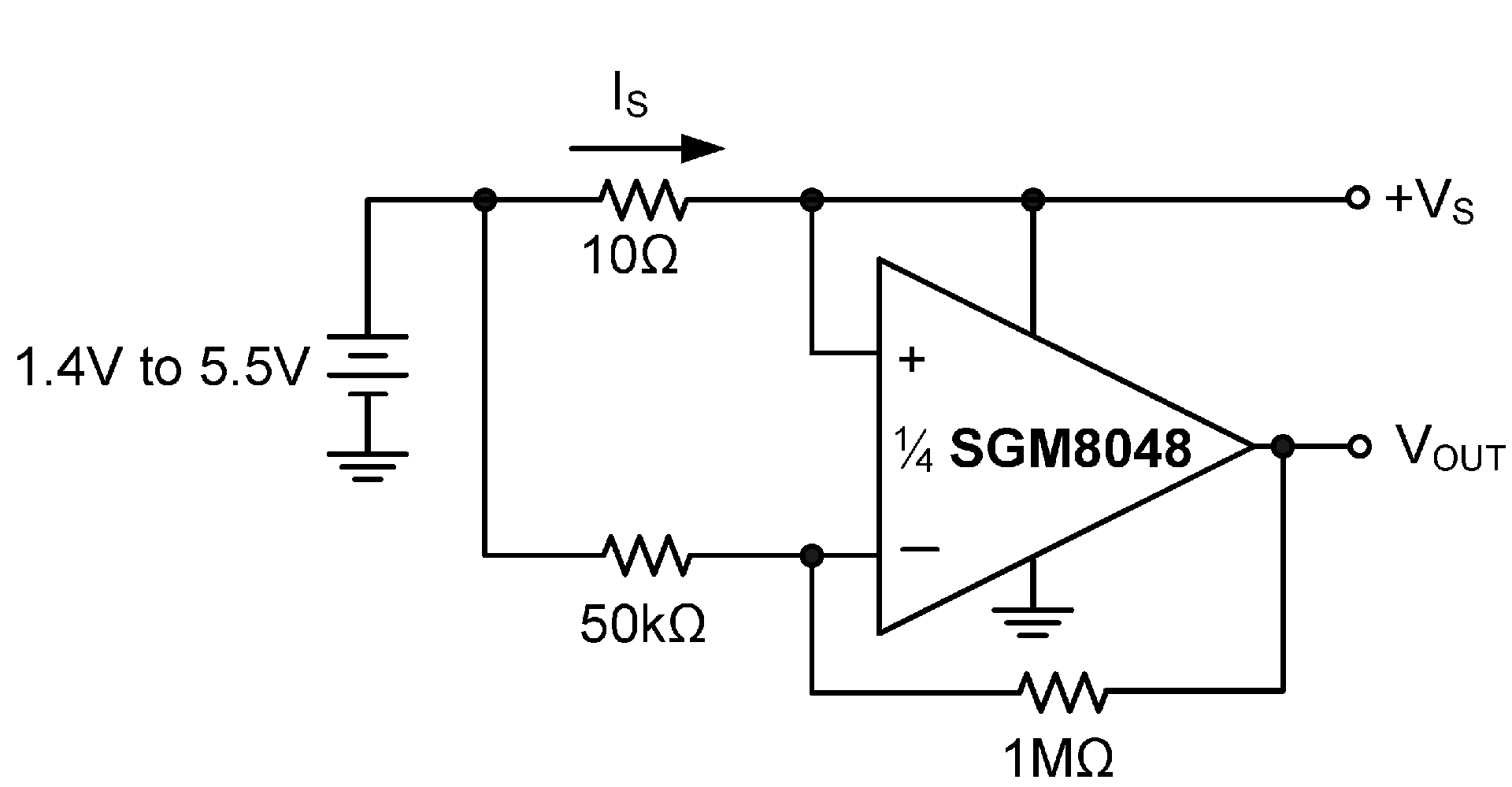

The SGM8048 operates with a single supply voltage as low as 1.4V, while drawing less than 690nA (TYP) of quiescent current per amplifier. This device is also designed to support rail-to-rail input and output operation. This combination of features supports battery-powered and portable applications. The SGM8048 has a gain-bandwidth product of 100kHz (TYP) and is stable for gains ≥ 10. The combination of characteristics makes the SGM8048 ideal for low frequency applications, such as battery current monitoring and sensor conditioning.
The SGM8048 operational amplifier is offered in quad configuration and it is specified for the extended industrial (-40℃ to +85℃) temperature range. The SGM8048 is available in the Green SOP14, TSSOP14 packages.
