SGM8199L.pdf
No.11286
? Wide Common Mode Range: 0V to 26V
? Offset Voltage: ±30μV (TYP)
(Enables shunt drops of 10mV full-scale)
? Accuracy: ±0.02% Gain Error (TYP)
? SGM8199L1 Gain: 50V/V
? Quiescent Current: 70μA (TYP)

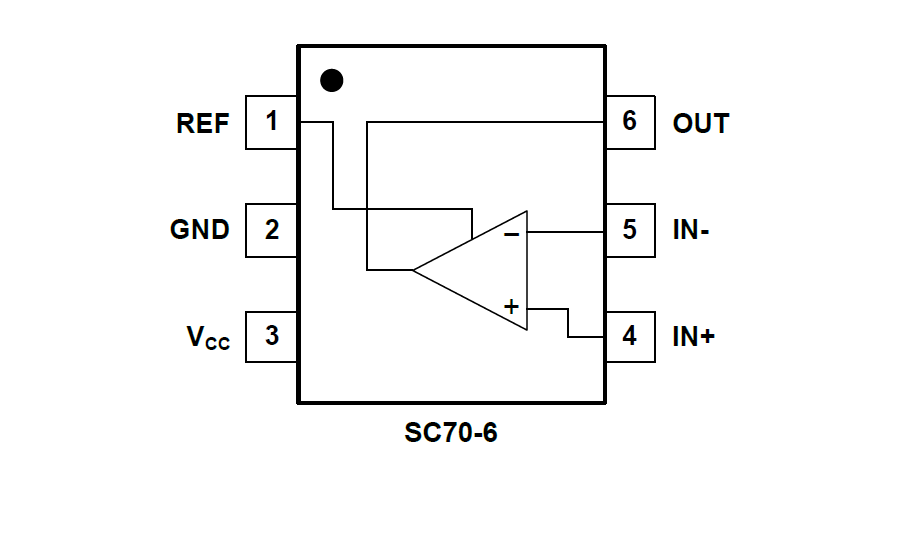

? Available in Green SC70-6 Package

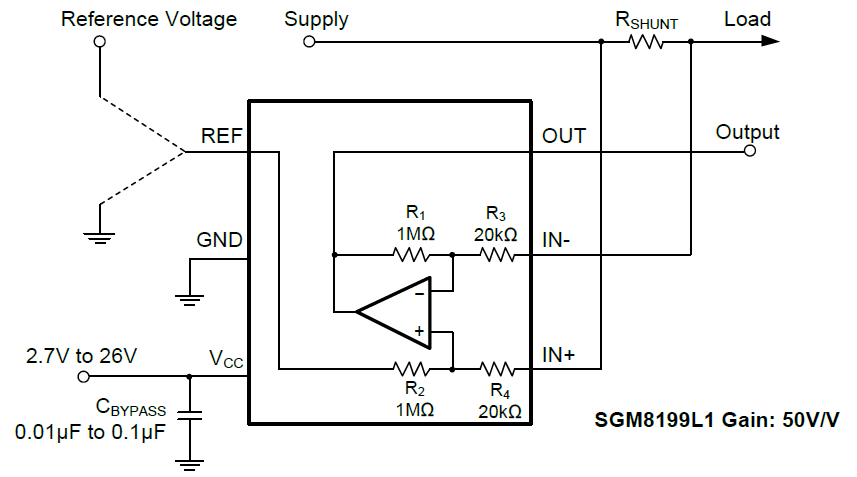

The SGM8199L is a voltage output current shunt monitor which can sense drop across shunt at common mode voltages from 0V to 26V, independent of the supply voltage. The gain of SGM8199L1 is 50V/V. The low offset enables current sensing with maximum drops across the shunt as low as 10mV full-scale.
This device operates from a single 2.7V to 26V power supply, drawing a typical 70μA of supply current.
The SGM8199L is available in Green SC70-6 package. It is specified over the extended -40℃ to +125℃ temperature range.
