SGM8210-2.pdf
No.10776
The SGM8210-1, SGM8210-2 and SGM8210-4 low
power, wide power supply range operational amplifiers
are designed for battery-powered applications. The
amplifiers operate with a supply voltage from 3.3V
(±1.65V) to 24V (±12V). High-performance, single-supply
operation and rail-to-rail capability make the
SGM8210-1/2/4 useful for a wide range of applications.
In addition of small packages, the SGM8210-1/2/4
operational amplifiers feature impressive bandwidth,
low bias current and low noise relative to the low
quiescent current.
The single SGM8210-1 is available in Green SOT-23-5

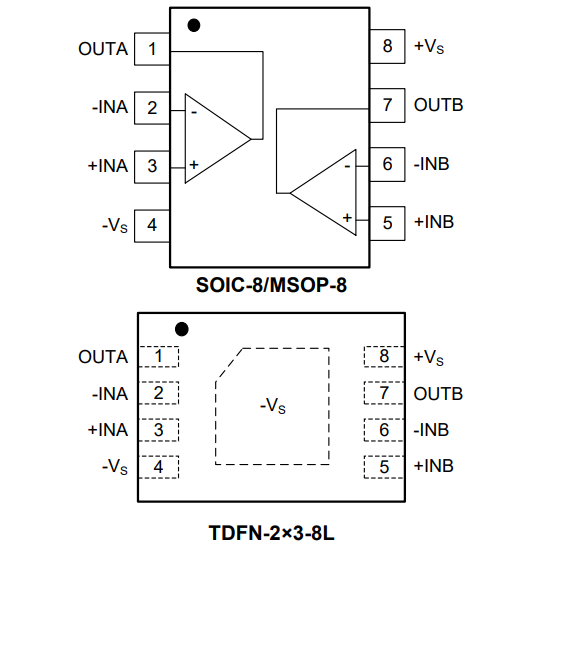

and SC70-5 packages. The dual SGM8210-2 is
available in Green SOIC-8, MSOP-8 and TDFN-2×3-8L
packages. The quad SGM8210-4 is available in Green
SOIC-14 package. They are specified over the extended
industrial temperature range (-40℃ to +125℃).
