Micro Power Operational Amplifier
SGM8210-4
SGM8210-4.pdf
SGM8210-4.pdf
No.10777
FEATURES
? Low 0.1Hz to 10Hz Noise: 3μVP-P
? Wide Supply Voltage Range: 3.3V to 24V
? Low Power Consumption: 50μA/Amplifier (TYP)
? Low Offset Voltage: 1mV (MAX)
? Input Voltage Noise Density: 25nV/ Hz at 1kHz
? Slew Rate: 0.3V/μs
? Rail-to-Rail Input and Output
? High DC Precision:
CMRR: 115dB
PSRR: 120dB
AOL: 120dB
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8210-4 Available in Green SOIC-14 Package
DESCRIPTION
The SGM8210-1, SGM8210-2 and SGM8210-4 low power, wide power supply range operational amplifiers are designed for battery-powered applications. The amplifiers operate with a supply voltage from 3.3V (±1.65V) to 24V (±12V). High-performance, single-supply operation and rail-to-rail capability make the SGM8210-1/2/4 useful for a wide range of applications. In addition of small packages, the SGM8210-1/2/4 operational amplifiers feature impressive bandwidth, low bias current and low noise relative to the low quiescent current.
The quad SGM8210-4 is available in Green SOIC-14 package. They are specified over the extended industrial temperature range (-40℃ to +125℃).

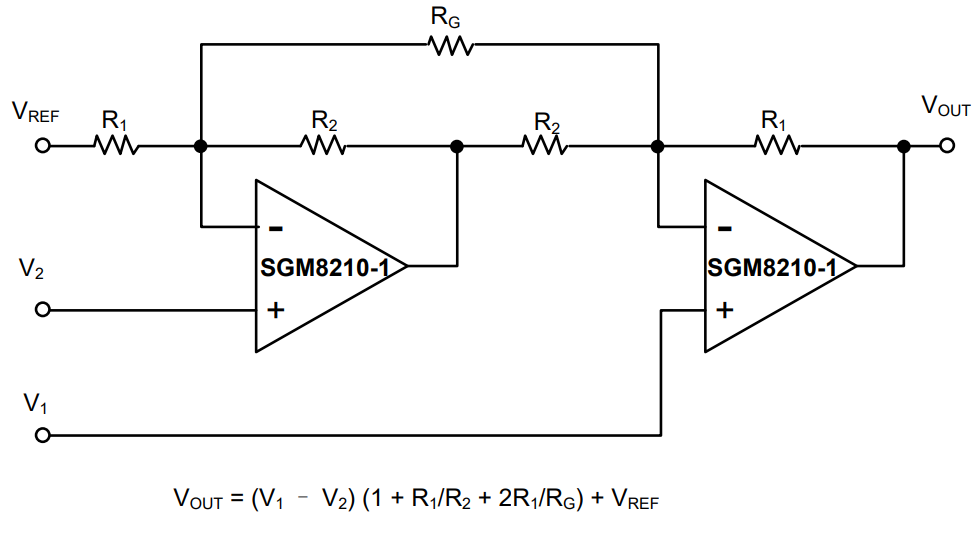

APPLICATION CIRCUIT

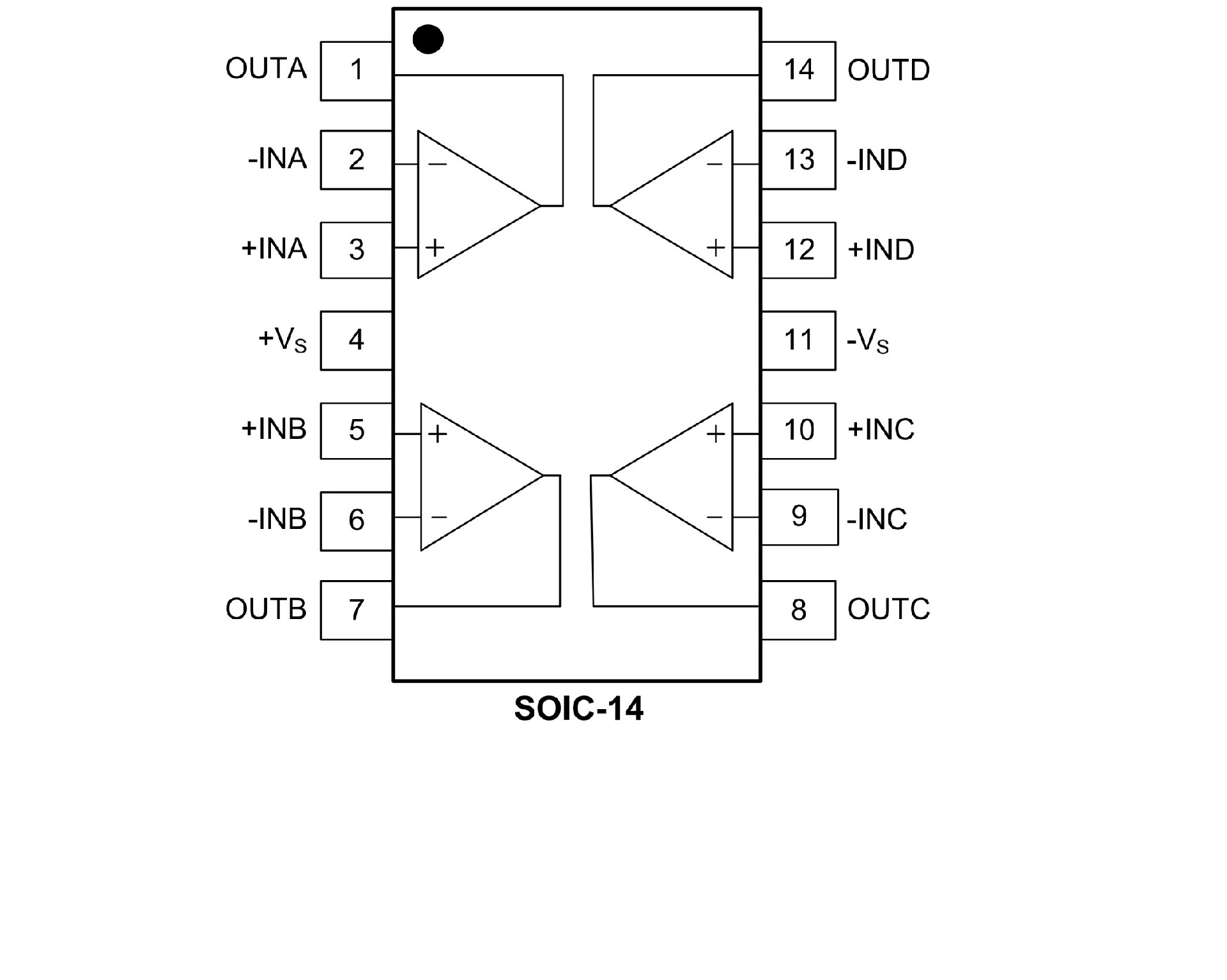

PIN CONFIGUTION
