SGM824.pdf
No.10897
● Ultra-Low Supply Current: < 1μA (TYP)
● Precision Supply-Voltage Monitor
4.63V for SGM824-L
3.08V for SGM824-T
2.93V for SGM824-S
2.63V for SGM824-R
● Guaranteed Reset Valid at VCC = 1V
● Fully Specified over Temperature
● 200ms Reset Pulse Width
● Power-Supply Transient Immunity
● Watchdog Timer with 1.6s Timeout
● Debounced TTL/CMOS-Compatible
● No External Components
● -40℃ to +125℃ Operating Temperature Range

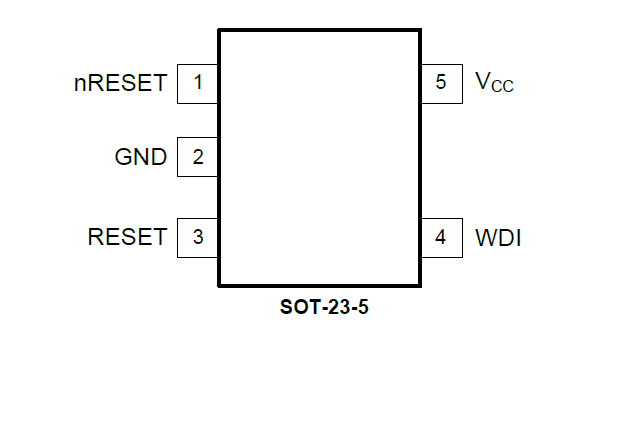

● Available in Green SOT-23-5 Package

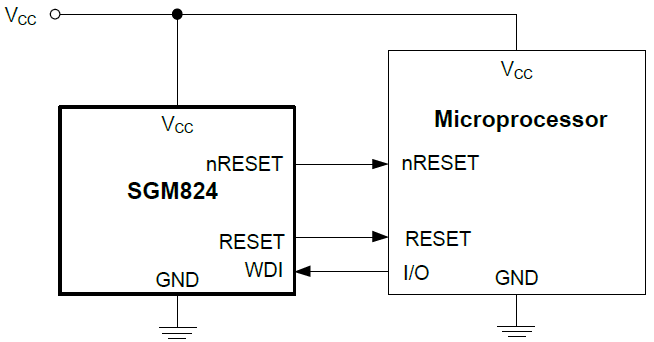

The SGM824 microprocessor (μP) supervisory circuit combines reset output, watchdog input functions in SOT-23-5 package. It significantly improves system reliability and accuracy compared to separate ICs or discrete components. The SGM824 is specifically designed to ignore fast transients on VCC.
Four preprogrammed reset threshold voltages are available. This device has an active-low reset output, which is guaranteed to be in the correct state for VCC down to 1V. The SGM824 offers a watchdog input and a complementary active-high reset.
The SGM824 is available in a Green SOT-23-5 package. It operates over an ambient temperature range of -40℃ to +125℃.
