High Speed, Ultra-Low Noise, Rail-to-Rail Output, High Output Current Amplifier.
SGM8262-2
SGM8262-2.pdf
SGM8262-2.pdf
No.11305
FEATURES
? Ultra-Low Noise:
Voltage Noise: 3.5nV/√Hz at 100kHz
Current Noise: 4pA/√Hz at 100kHz
? High Speed:
-3dB Bandwidth: 22MHz (G = +1)
Slew Rate: 33V/μs (RLOAD = 32Ω)
? Unity-Gain Stable
? High Output Current with Excellent Linearity: 310mA
? High Open-Loop Gain: 110dB
? Rail-to-Rail Output
? Support Single or Dual Power Supplies:
4.5V to 36V or ±2.25V to ±18V
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOIC-8 and TDFN-3×3-8BL
Packages
DESCRIPTION
The SGM8262-2 is a dual, low noise, high speed operational amplifier with voltage feedback function. The output swing is rail-to-rail with heavy loads. This maximizes the dynamic range and offers high linearity.
The SGM8262-2 features 3.5nV/√Hz low voltage noise at 100kHz with ultra-low distortion. It also has 22MHz wide bandwidth at -3dB and 33V/μs high slew rate. The device is unity-gain stable and has high output drive capability.
The SGM8262-2 is available in Green SOIC-8 and TDFN-3×3-8BL packages. It operates over an ambient temperature range of -40℃ to +85℃.
APPLICATION CIRCUIT

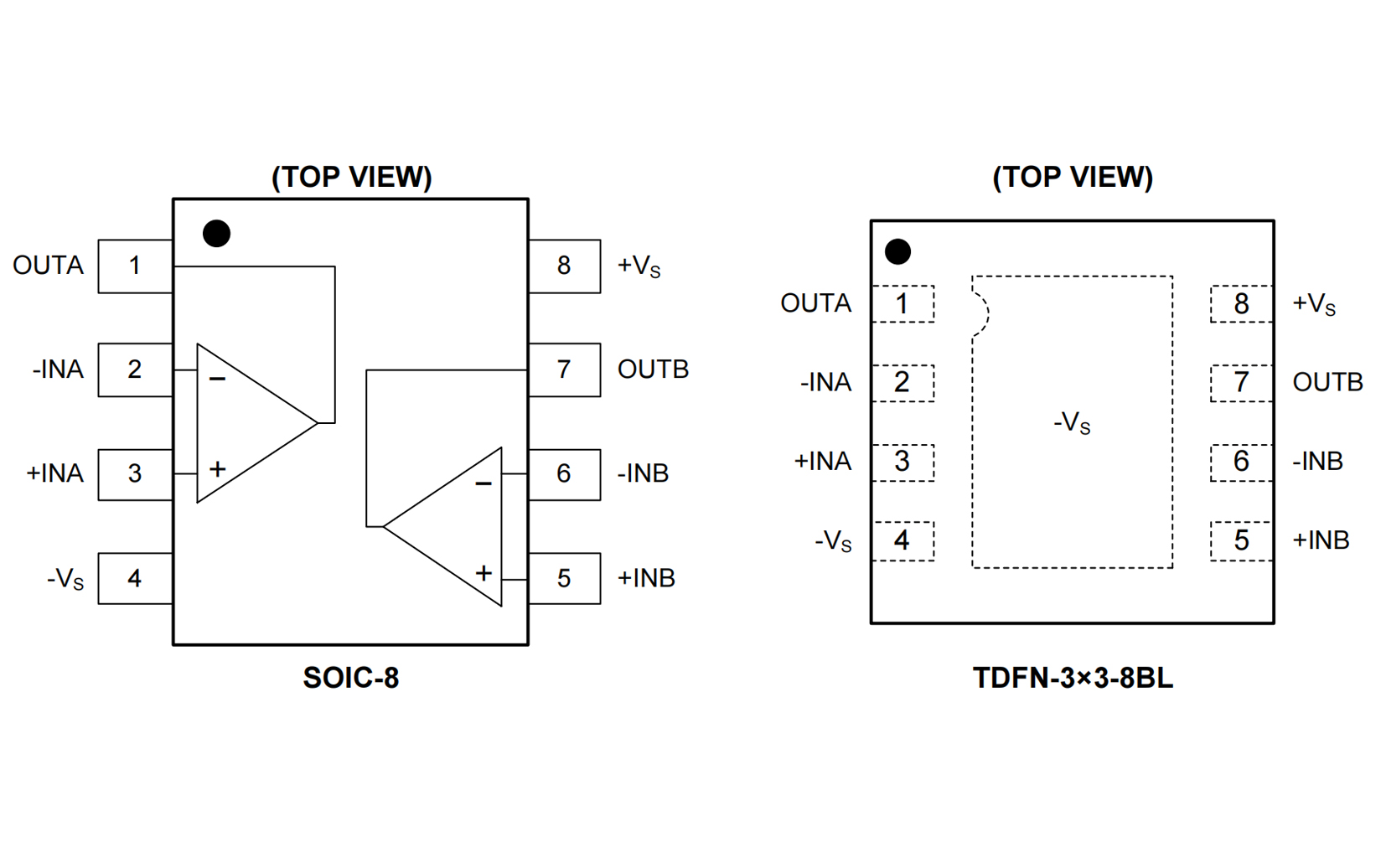

PIN CONFIGUTION
