SGM8263-2.pdf
No.11303
● Ultra Low Offset Voltage: 8.5μV (MAX)
● Ultra Low Input Offset Voltage Drift: 10nV/℃
● Low Noise: 4.5nV/Hz at 1kHz
● Low Distortion: 0.0001% at 1kHz
● High Slew Rate: 10V/μs
● Gain-Bandwidth Product: 10MHz (G = +1)
● High Open-Loop Gain: 145dB
● Unity-Gain Stable
● Low Quiescent Current: 2.5mA/Amplifier
● Rail-to-Rail Output
● Support Single or Dual Power Supplies: 4V to 36V or ±2V to ±18V
● -40℃ to +85℃ Operating Temperature Range

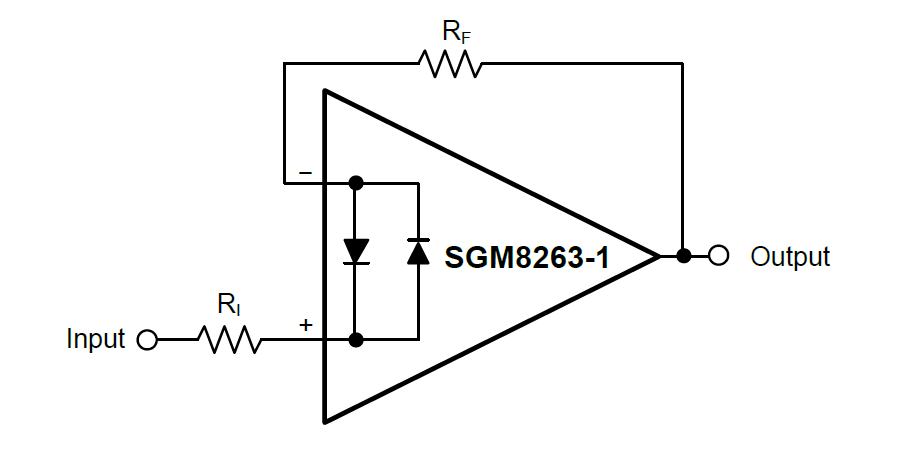

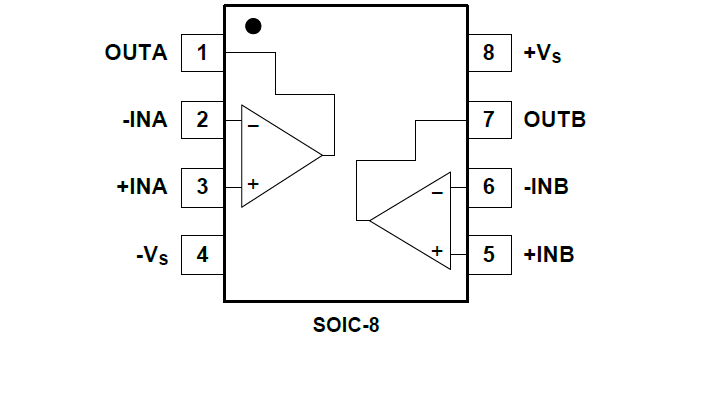

The SGM8263-1 (single) and SGM8263-2 (dual) bipolar-input operational amplifiers achieve very low noise density with a low distortion of 0.0001% at 1kHz. The SGM8263-1/2 offer rail-to-rail output swing to within 190mV of supply rails with a 2kΩ load, which increases headroom and maximizes dynamic range. The devices also have a high output drive capability of ±55mA.
SGM8263-1/2 have ultra low offset voltage and ultra low offset voltage drift over temperature. The maximum offset voltage is 8.5μV. SGM8263-1/2 are very suitable for amplifying low noise and low amplitude signal.
The devices operate over a wide supply range of 4V to 36V or ±2V to ±18V, on only 2.5mA of supply current per amplifier. The SGM8263-1/2 operational amplifiers are unity-gain stable and provide excellent dynamic behavior over a wide range of load conditions.
