1.4MHz, 7V/μs, Low Power, Rail-to-Rail Output
SGM8271
SGM8271.pdf
SGM8271.pdf
No.11334
FEATURES
? Low Power Consumption: 150μA/Amplifier
? Wide Input Common Mode Voltage Range
? Low Input Bias and Offset Currents
? Output Short-Circuit Protection
? Rail-to-Rail Output
? High Input Impedance
? Low Offset Voltage: 3mV (MAX)
? High Slew Rate: 7V/μs
DESCRIPTION
The SGM8271 (single), SGM8272 (dual) and SGM8274 (quad) are high voltage operational amplifiers that are designed to offer a wide input common mode voltage range and output voltage swing. These devices can operate from ±2.25V to ±18V dual power supplies or from 4.5V to 36V single supply.
The devices feature high slew rate, low input bias and offset current, low offset voltage and low offset-voltage temperature coefficient.

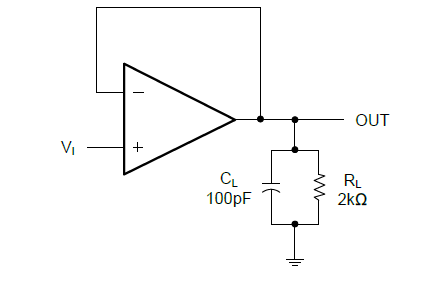

APPLICATION CIRCUIT

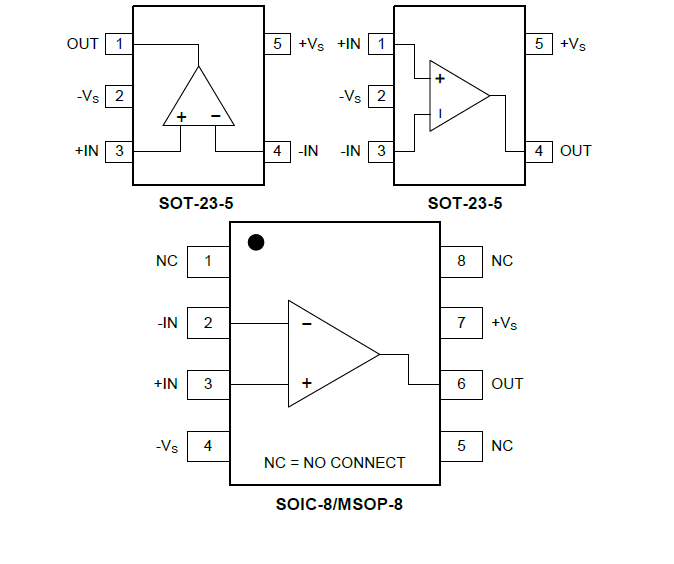

PIN CONFIGUTION
