SGM8422.pdf
No.10819
● ±2.25V to ±15V Dual Power Supplies or +4.5V to
+30V Single Supplies
● Gain-Bandwidth Product: 2.4MHz (TYP)
● Supply Current/Amplifier: 0.72mA
● High Slew Rate: 2V/μs
● Beyond the Rails Input Capability
● Rail-to-Rail Output Swing
● Small Packaging:

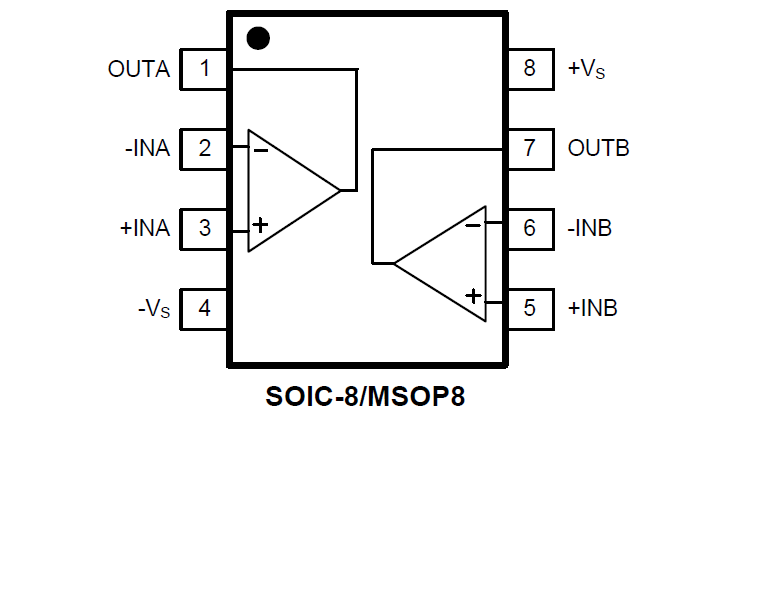

SGM8422 Available in SOIC-8 and MSOP-8 Packages
● -40℃ to +85℃ Operating Temperature Range
The SGM8422 (dual) and SGM8424 (quad) are low power, high voltage, rail-to-rail input and output operational amplifiers. These devices can operate from ±2.25V to ±15V dual power supplies or from +4.5V to +30V single supplies. The SGM8422/4 have a gain-bandwidth product of 2.4MHz (TYP), while consuming only 0.72mA per amplifier. They also provide common mode input ability beyond the supply rails, as well as rail-to-rail output capability. This enables the SGM8422/4 to offer maximum dynamic range at any supply voltage.
The SGM8422/4 also feature fast slewing and settling times. These features make these amplifiers ideal for use as voltage reference buffers in Thin Film Transistor Liquid Crystal Displays (TFT-LCD). Other applications include battery power, portable devices, and anywhere low power consumption is important.
