SGM8429C-4.pdf
No.11261
? Wide Supply Ranges:
Single Supply: 3V to 32V
Dual Supplies: ±1.5V to ±16V
? Low Supply Current: 860μA (TYP)
? Gain-Bandwidth Product: 1.1MHz
? Input Common Mode Voltage Range Includes Ground,
Allowing Direct Sensing Near Ground
? Low Input Offset Voltage: 6mV (MAX)
? Low Input Offset Current: 10pA (TYP)
? Low Input Bias Current: 10pA (TYP)
? Differential Input Voltage Range Equal to Maximum- Rated
Supply Voltage: 32V
? Open-Loop Differential Voltage Gain: 111dB (TYP)
? Internal Frequency Compensation
? -40℃ to +125℃ Operating Temperature Range

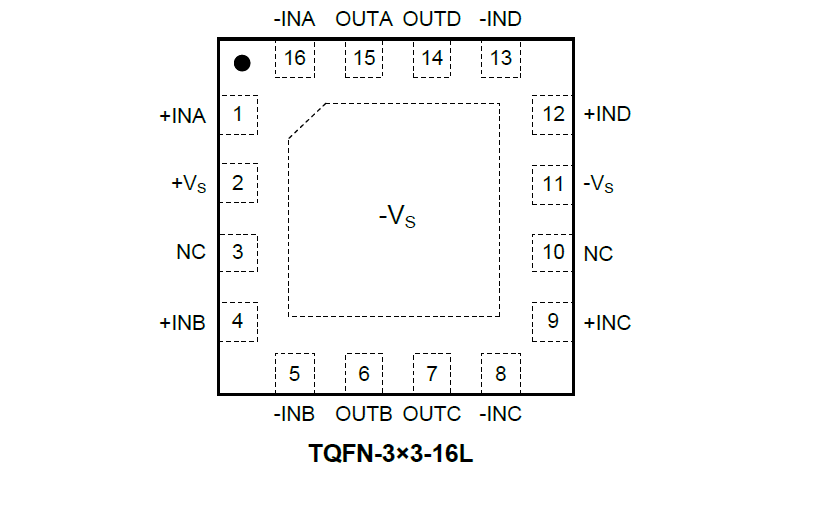

? Available in a Green TQFN-3×3-16L Package
The SGM8429C-4 consists of four independent, high-gain frequency-compensated operational amplifiers which are designed to operate from a single supply or dual supplies over a wide range of voltages.
The SGM8429C-4 is available in a Green TQFN-3×3-16L package. It is specified over the -40℃ to +125℃ temperature range.
