SGM8477-1B.pdf
No.11285
? Low Input Offset Voltage: 10μV (MAX)
? Low Drift: 0.02μV/℃ (TYP)
? Low 0.1Hz to 10Hz Noise: 250nVP-P
? Quiescent Current: 380μA (TYP)
? Shutdown Status Current: < 0.5μA
? Low Noise: 10nV/Hz at 1kHz
? Integrated RFI Filter
? Single Supply Operation
? Supply Voltage Range: 1.8V to 5.5V
? Rail-to-Rail Input and Output
? -40℃ to +125℃ Operating Temperature Range

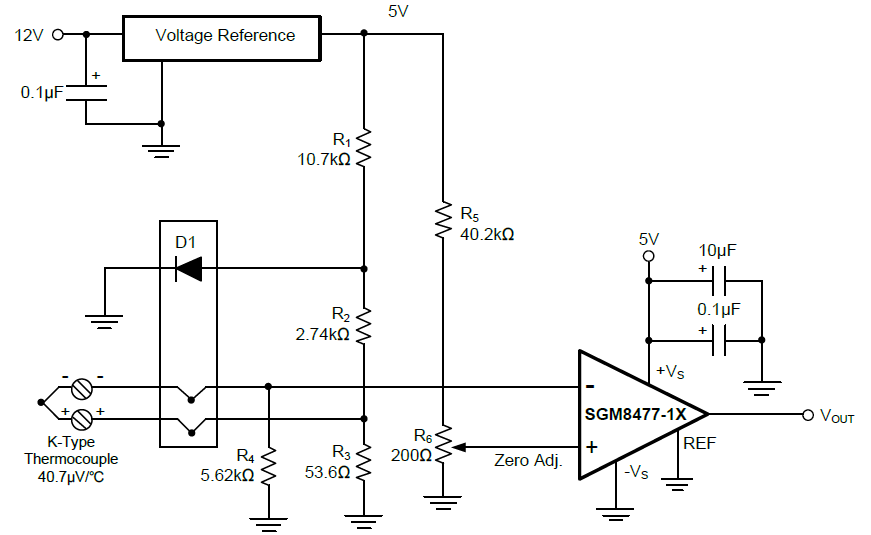

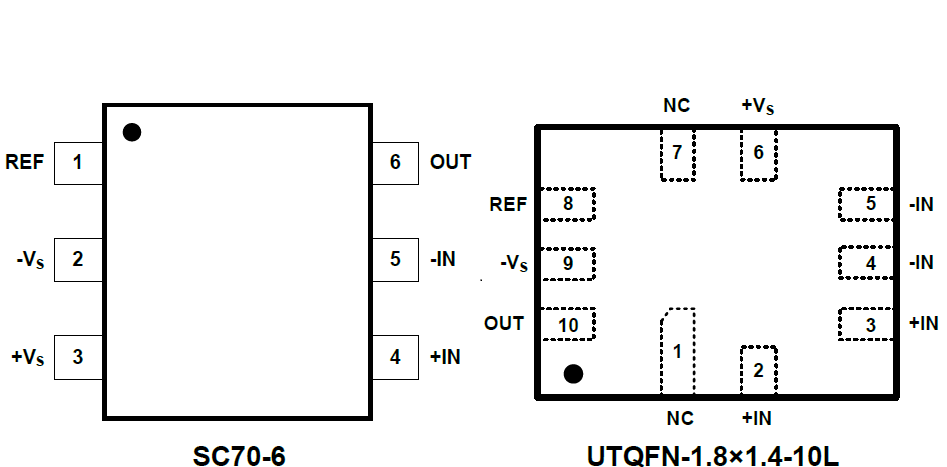

The SGM8477-1/3 CMOS difference amplifiers provide very low offset voltage, low noise and zero-drift over time and temperature for precision differential signal processing.
The miniature, high-precision, low quiescent current amplifiers offer rail-to-rail input and output. Single or dual supplies as low as +1.8V (±0.9V) and up to +5.5V (±2.75V) may be used. It is optimized for low voltage operation.
SGM8477-1/3 are high performance amplifiers for accurate high-side and low-side current sensing, such as single battery voltage. SGM8477-3 can enter into shutdown status (IQ < 0.5μA) when EN pin is logical “low”, controlled by the external MCU.
Integrated matched resistors for differential application save external components. The SGM8477-1/3 have different versions for gains of 50 and 300.
