SGM84782.pdf
No.11134
● Voltage Operation: 1.8V to 4.2V
● Low On-Resistance: 4Ω (TYP) at 4.2V
● Low On-Resistance Flatness
● -3dB Bandwidth: 150MHz

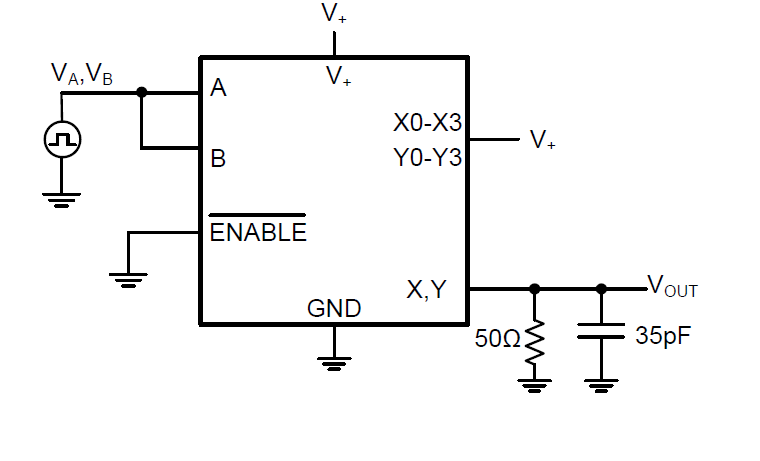

● Fast Switching Times (+4.2V)
tON 17ns
tOFF 9ns
● Low Crosstalk: -92dB at 10MHz
● Rail-to-Rail Input and Output Operation
● Typical Power Consumption (< 0.01μW)
● TTL/CMOS Compatible
● Break-Before-Make Switching
● Extended Industrial Temperature Range: -40℃ to +85℃

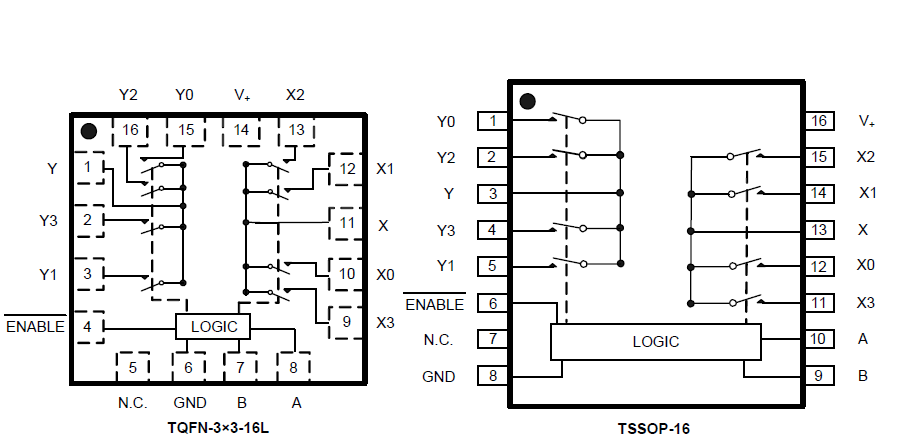

● Available in Green TQFN-3×3-16L and TSSOP-16 Packages
The SGM84782 is high-speed, low-voltage, low on-resistance, CMOS analog multiplexer/switch that configured as two 4-channel multiplexers. It operates from a single +1.8V to +4.2V power supply. Targeted applications include battery powered equipment that benefit from low RON (4Ω) and fast switching speeds (tON = 17ns, tOFF = 9ns).
The SGM84782 can handle rail-to-rail analog signals and is available in Green TQFN-3×3-16L and TSSOP-16 packages.
