Micro Power Operational Amplifier
SGM8524 SGM8524.pdf

No.10783

FEATURES
? Low Cost
? Rail-to-Rail Input and Output 0.8mV Typical VOS
? Unity Gain Stable
? Gain Bandwidth Product: 150kHz
? Very Low Input Bias Currents : 0.5pA
? Operates on 2.1V to 5.5V Supplies
? Input Voltage Range = -0.1V to +5.6V with VS = 5.5V
? Low Supply Current: 4.7μA/Amplifier
? Small Packaging

  SGM8524 Available in SOIC-14 and TSSOP-14

DESCRIPTION

The SGM8521 (single),SGM8522 (dual) and SGM8524 (quad) are rail-to-rail input and output voltage feedback amplifiers offering low cost. They have a wide input common-mode voltage range and output voltage swing, and take the minimum operating supply voltage down to 2.1V and the maximum recommended supply voltage is 5.5V. All are specified over the extended -40℃ to +125℃ temperature range. The SGM8521/2/4 provide 150kHz bandwidth at a low current consumption of 4.7μA per amplifier. Very low input bias currents of 0.5pA enable the SGM8521/2/4 to be used for integrators, photodiode amplifiers, and piezoelectric sensors. Rail-to-Rail inputs and outputs are useful to designers buffering ASIC in single-supply systems.
Applications for these amplifiers include safety monitoring, portable equipment, battery and power supply control, and signal conditioning and interfacing for transducers in very low power systems.

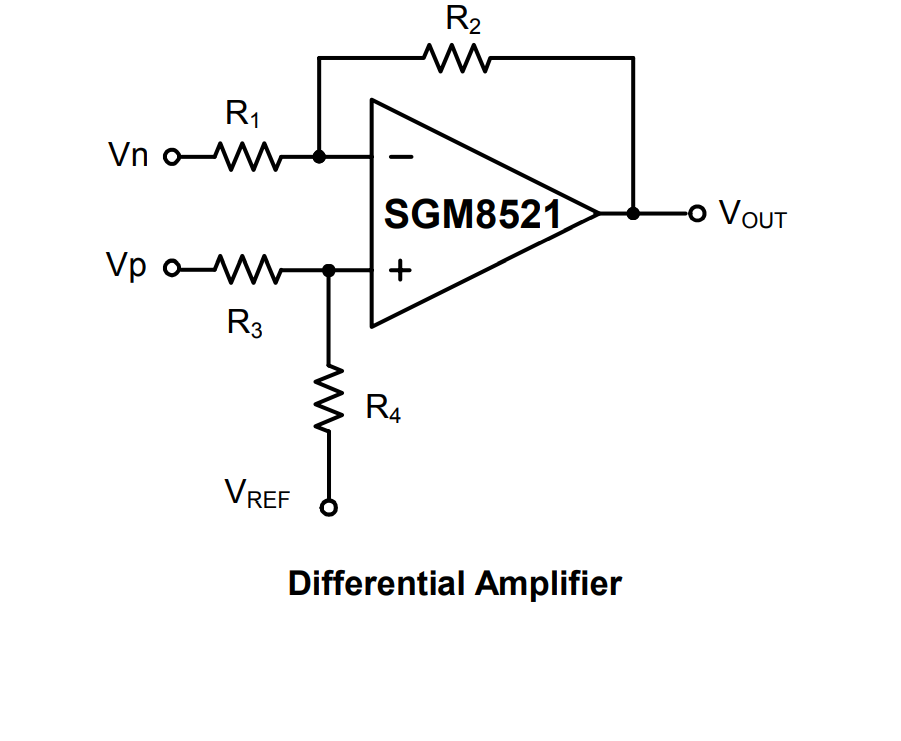

APPLICATION CIRCUIT

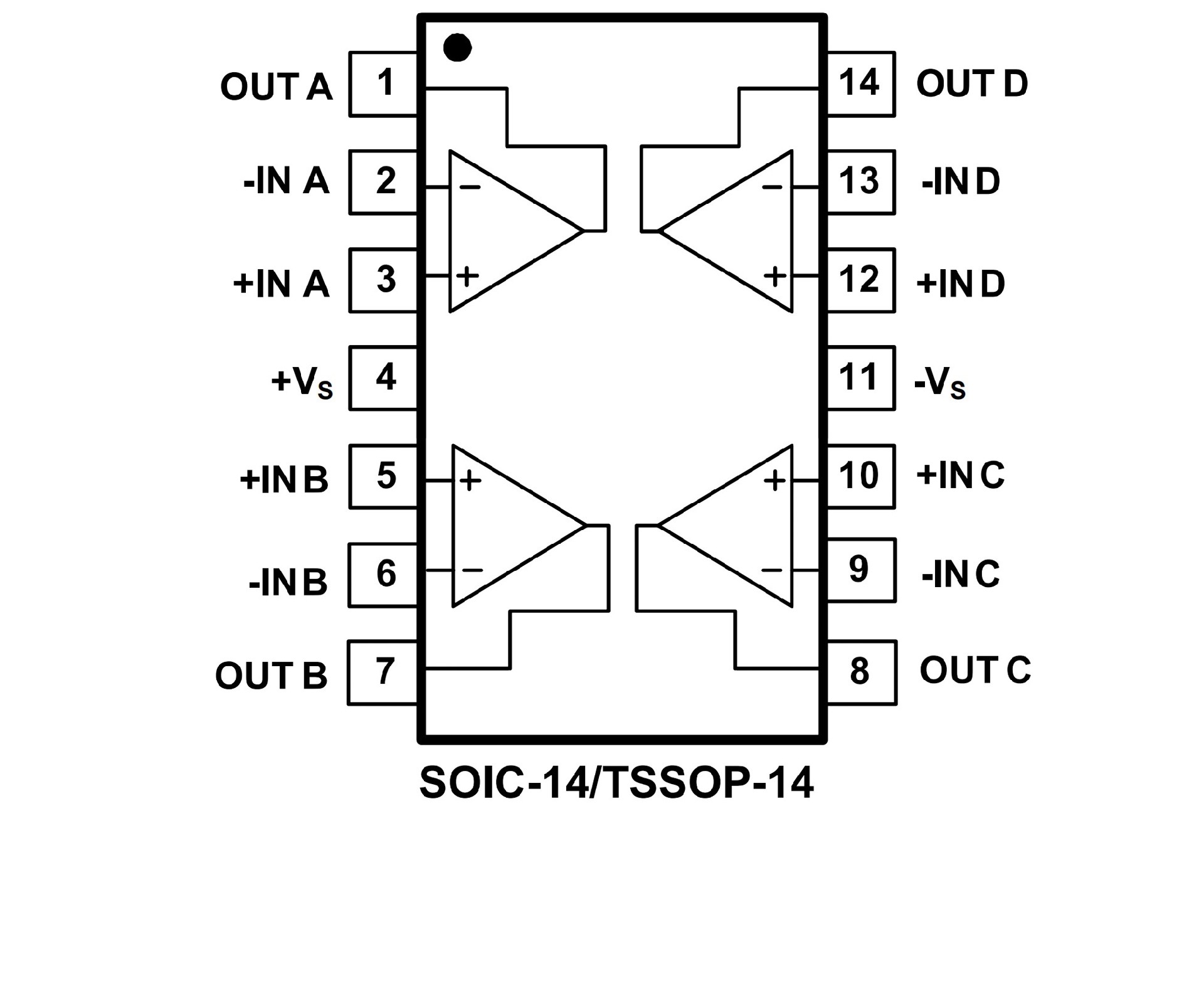

PIN CONFIGUTION
