Micro Power Operational Amplifier
SGM8531 SGM8531.pdf

No.10748

FEATURES

? Low Cost

? Rail-to-Rail Input and Output 0.8mV Typical VOS

? Unity Gain Stable

? Gain Bandwidth Product: 500kHz

? Very Low Input Bias Currents: 0.5pA

? Supply Voltage Range: 2.1V to 5.5V

? Input Voltage Range:

  -0.1V to +5.6V with VS = 5.5V

? Low Supply Current: 18μA/Amplifier

? Small Packaging

  SGM8531 Available in SOIC-8 and SOT-23-5

DESCRIPTION

The SGM8531 (single) and SGM8532 (dual) are low cost, rail-to-rail input and output voltage feedback amplifiers. They have a wide input common-mode voltage range and output voltage swing, and take the minimum operating supply voltage down to 2.1V. The maximum recommended supply voltage is 5.5V. All are specified over the extended -40℃ to +125℃ temperature range. The SGM8531/2 provide 500kHz bandwidth at a low current consumption of 18μA per amplifier. Very low input bias currents of 0.5pA enable the SGM8531/2 to be used for integrators, photodiode amplifiers, and piezoelectric sensors. Rail-to-rail input and output are useful to designers for buffering ASIC in single-supply systems.

Applications for these amplifiers include safety monitoring, portable equipment, battery and power supply control, and signal conditioning and interfacing for transducers in very low power systems.

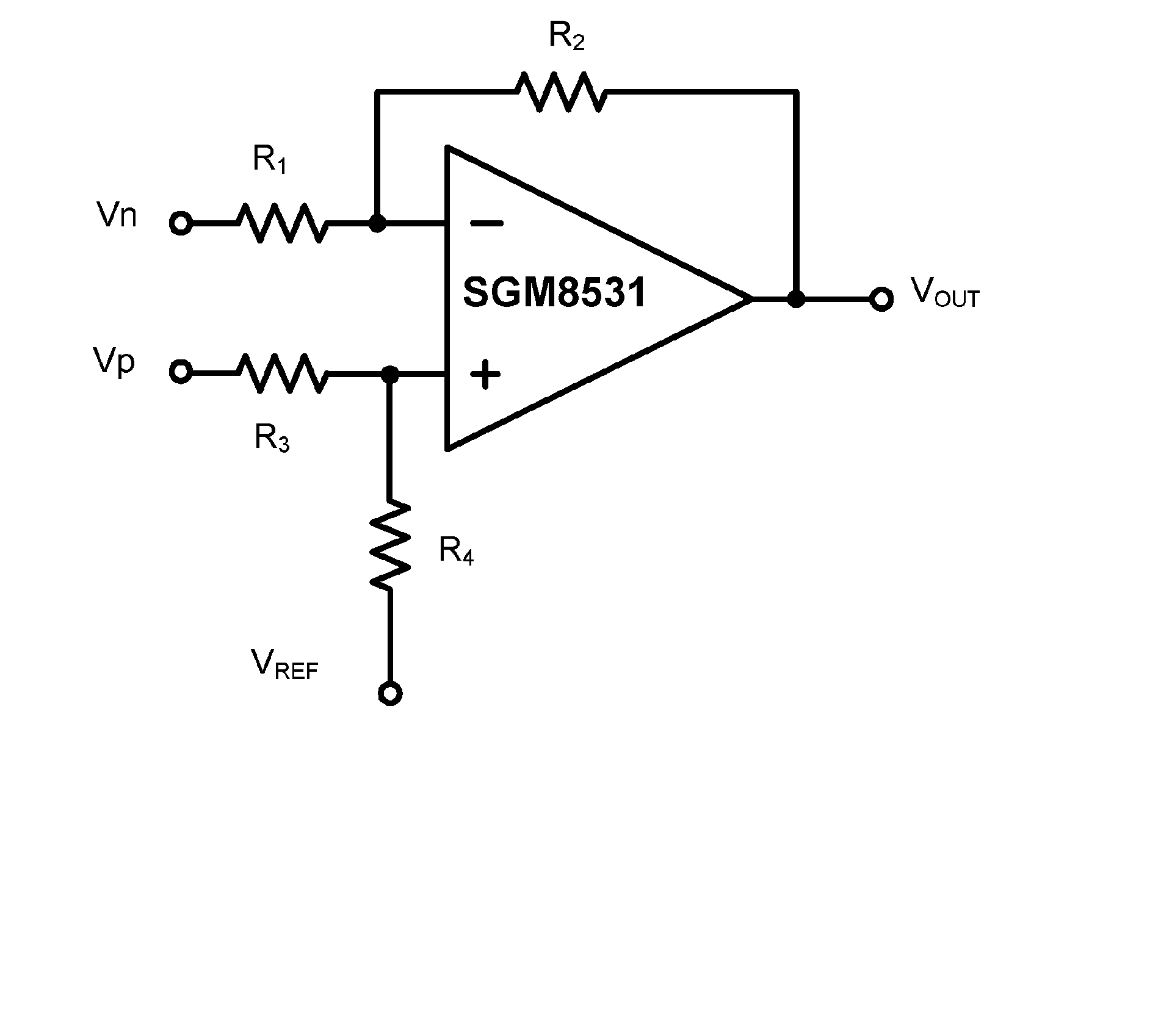

APPLICATION CIRCUIT

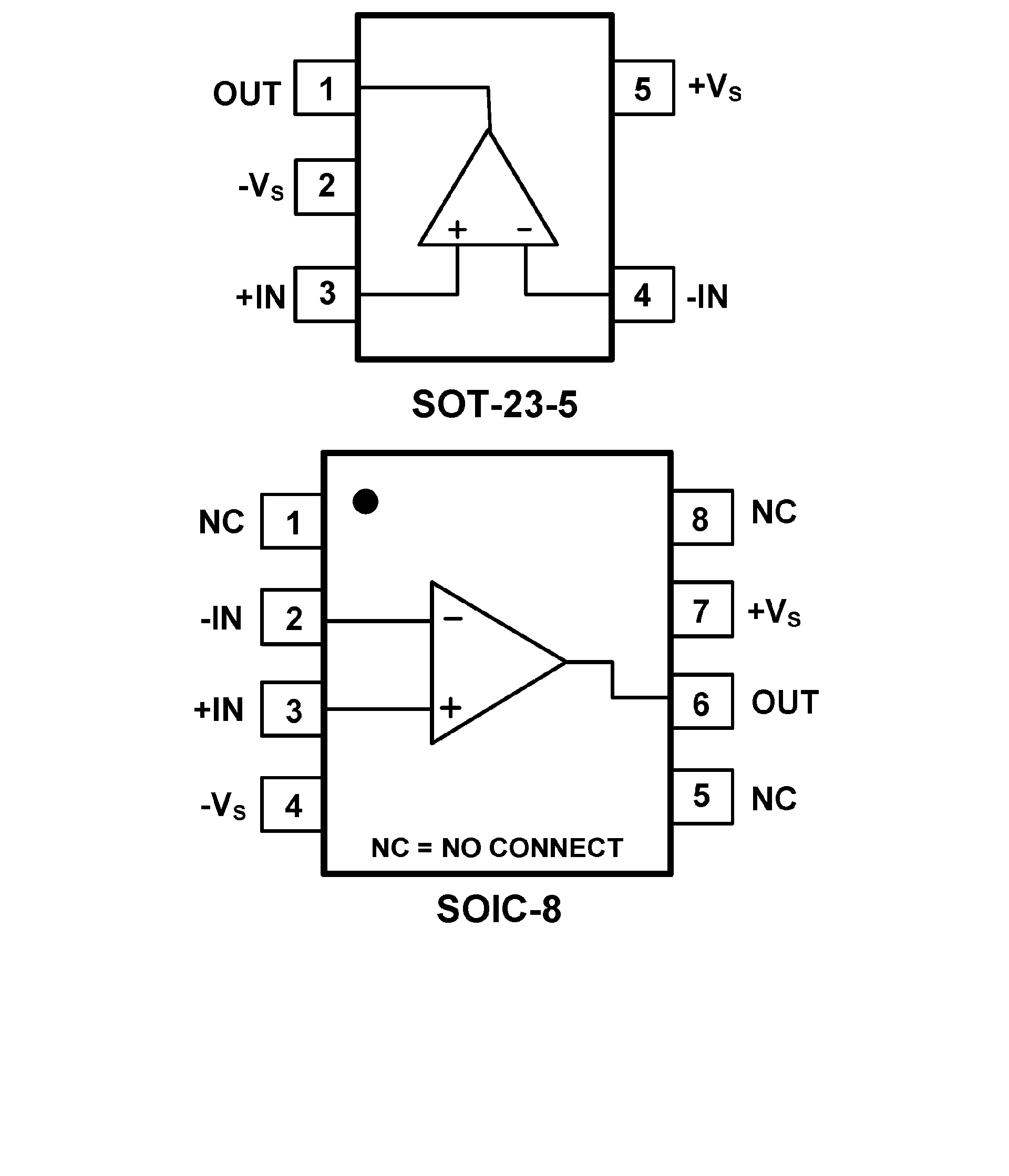

PIN CONFIGUTION
