SGM8537.pdf
No.11332
? Rail-to-Rail Output
? Low Input Offset Voltage: 0.6mV (TYP)
? Unity Gain Stable
? Gain Bandwidth Product: 1.5MHz
? Supply Voltage Range: 1.8V to 5.5V
? Low Supply Current
80μA/Amplifier (TYP)

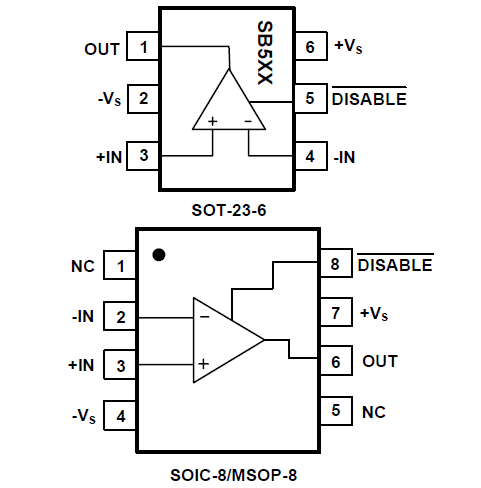

0.1μA Shutdown Current for SGM8537
The SGM8535 (single), SGM8536 (dual), SGM8537 (single with shutdown) and SGM8538 (quad) are rail-to-rail output voltage feedback amplifiers. They have a wide input common-mode voltage range and output voltage swing, and take the minimum operating supply voltage down to 1.8V. The maximum recommended supply voltage is 5.5V.The SGM8535/6/7/8 provide 1.5MHz bandwidth at a low current consumption of 80μA per amplifier. Very low input bias currents enable SGM8535/6/7/8 to be used for integrators, photodiode amplifiers, and piezoelectric sensors. Rail-to-rail outputs are useful to designers for buffering ASIC in single-supply systems.
Applications for these amplifiers include safety monitoring, portable equipment, battery and power supply control, signal conditioning and interfacing for transducers in very low power systems.
