SGM8605-1.pdf
No.11253
● Rail-to-Rail Input and Output
● Input Offset Voltage: 0.9mV (TYP)
● High Gain-Bandwidth Product: 12.5MHz
● High Slew Rate: 8.5V/μs
● Settling Time to 0.1% with 2V Step: 0.21μs
● Overload Recovery Time: 0.6μs
● Supply Voltage Range: 2.1V to 5.5V
● Input Common Mode Voltage Range: -0.1V to +5.6V with VS = 5.5V
● Low Power 1.2mA Typical Supply Current
● -40℃ to +125℃ Operating Temperature Range

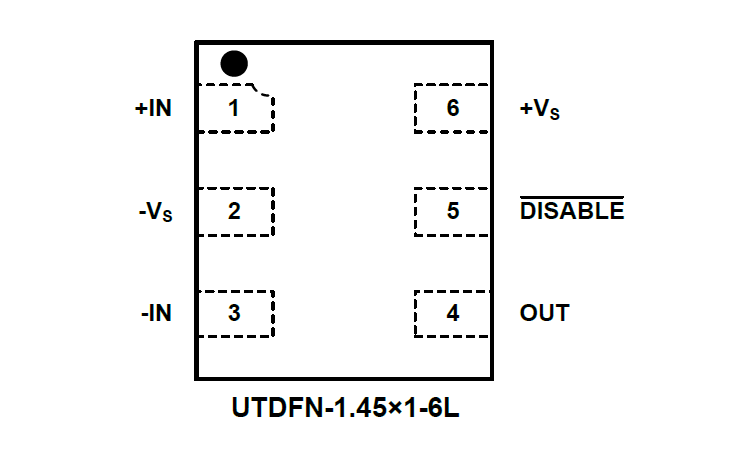

● Available in Green UTDFN-1.45×1-6L Package

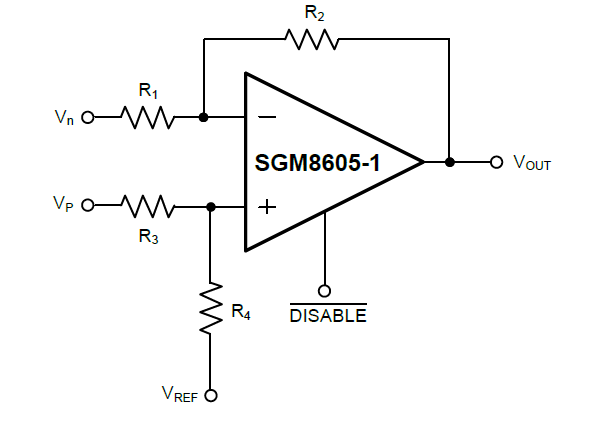

The SGM8605-1 (single with shutdown) is a low noise, low voltage, and low power operational amplifier, that can be designed into a wide range of applications. The SGM8605-1 has a high gain-bandwidth product of 12.5MHz, a slew rate of 8.5V/μs, and a quiescent current of 1.2mA at 5V. The SGM8605-1 has a power-down disable feature that reduces the supply current to less than 1μA.
The SGM8605-1 is designed to provide optimal performance in low voltage and low noise systems. It provides rail-to-rail output swing into heavy loads. The input common mode voltage range includes ground, and the maximum input offset voltage is 4.5mV for SGM8605-1. The operating supply range is from 2.1V to 5.5V.
SGM8605-1 is available in Green UTDFN-1.45×1-6L package. It is specified over the extended industrial temperature range (-40℃ to +125℃).
