High Speed Operational Amplifier
SGM8655 SGM8655.pdf

No.10744

FEATURES

? Low Cost

? Rail-to-Rail Output 2mV Typical VOS

? Gain-Bandwidth Product: 50MHz

? High Slew Rate: 66V/μs

? Settling Time to 0.1% with 2V Step: 60ns

? Overload Recovery Time: 25ns

? Low Noise: 8.7nV/ Hz

? Operates on 2.5V to 5.5V Supplies

? Input Voltage Range = -0.2V to + 3.8V with VS = 5V

? Low Power

  2.3mA/Amplifier Typical Supply Current

  75μA/Amplifier when Disabled (SGM8653/5 Only)

DESCRIPTION

The SGM8651/2/3/4/5 are high precision, low noise, low distortion, rail-to-rail output CMOS voltage feedback operational amplifiers offering ease of use and low cost. They have a wide input common-mode voltage range and output voltage swing, running at single-supply voltage from 2.5V to 5.5V. Despite being low cost, the SGM8651/2/3/4/5 provide excellent overall performance. They offer wide gainbandwidth product to 50MHz and a typical low power of 2.3mA/amplifier.

The SGM8651/2/3/4/5‘s low distortion and fast settling make them ideal for buffering high speed A/D or D/A converters. The SGM8653/5 has a power-down disable feature that reduces the supply current to 75μA/amplifier. These features make the SGM8653/5 ideal for portable and battery-powered applications where size and power are critical. All are specified over the extended –40℃ to +125℃ temperature range.

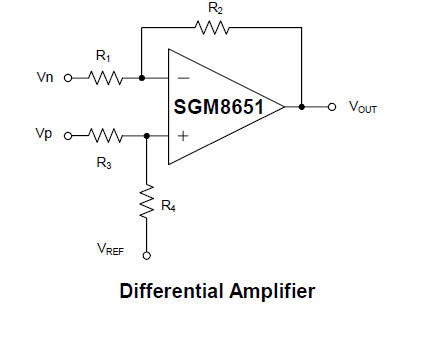

APPLICATION CIRCUIT

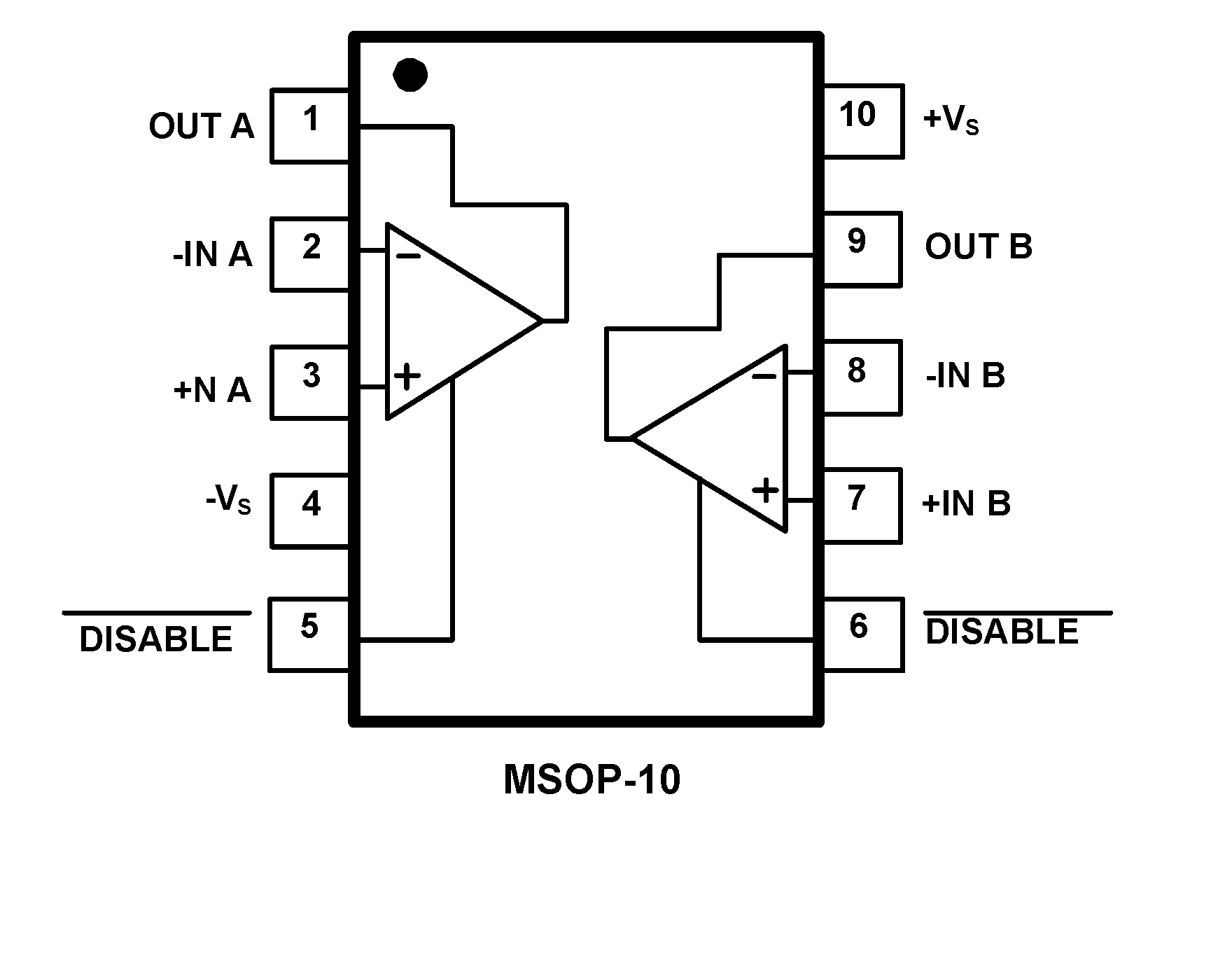

PIN CONFIGUTION
