Low Power Comparator
SGM8701 SGM8701.pdf

No.10788

FEATURES

? Ultra Low Power Consumption:

  300nA (TYP) at VS = 1.4V
? Wide Supply Voltage Range: 1.4V to 5.5V
? Propagation Delay: 6μs (TYP) at VS = 1.4V
? Push-Pull Output Current Drive:
  19mA (TYP) at VS = 5V
? Rail-to-Rail Input
? -40℃ to +85℃ Operating Temperature Range

? Available in Green SOT-23-5 and SC70-5 Packages

DESCRIPTION

The SGM8701 is an ultra low power comparator with a typical power supply current of 300nA. It has the best-in-class power supply current versus propagation delay performance. The propagation delay is as low as 6μs with 100mV overdrive at 1.4V supply. Designed to operate over a wide range of supply voltages, from 1.4V to 5.5V, with guaranteed operation at 1.4V, 2.5V and 5.0V, the SGM8701 is ideal for use in a variety of battery-powered applications. With rail-to-rail common mode voltage range, the SGM8701 is well suited for single-supply operation. Its small packages make this device ideal for use in handheld electronics and mobile phone applications.
Featuring a push-pull output stage, the SGM8701 allows for operation with absolute minimum power consumption when driving any capacitive or resistive load. SGM8701 is available in Green SOT-23-5 and SC70-5 space-saving packages. It is rated over the -40°C to +85°C temperature range.

APPLICATION CIRCUIT

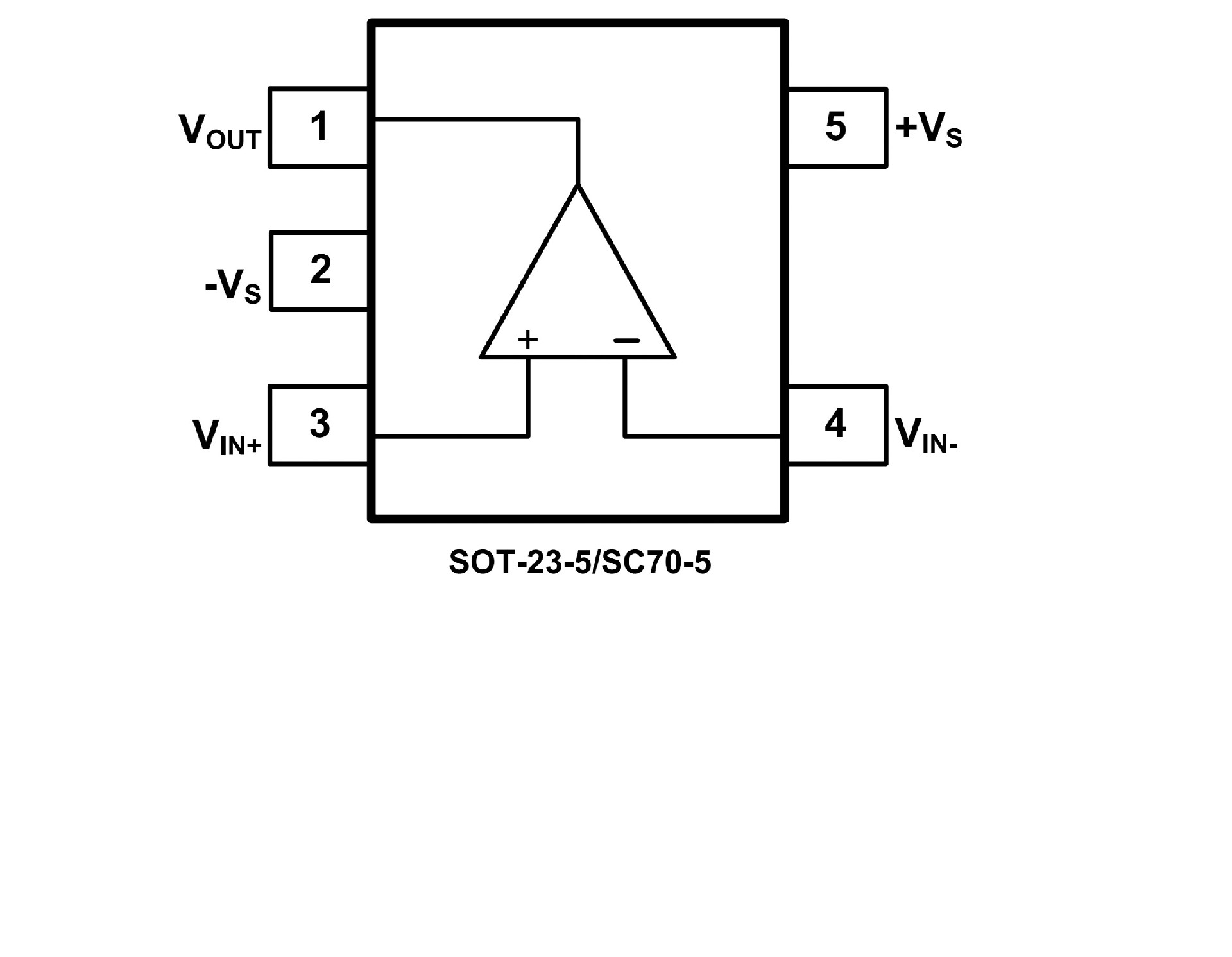

PIN CONFIGUTION
