SGM8709.pdf
No.10829
● Ultra Low Power Consumption: 318nA (TYP) at VS = 1.4V
● Wide Supply Voltage Range: 1.4V to 5.5V
● Propagation Delay: 6μs (TYP) at VS = 1.4V
● Open Drain Output Current Drive: 18.7mA (TYP) at VS = 5V
● Rail-to-Rail Input
● N-MOSFET Open Drain Output Structure
● -40℃ to +85℃ Operating Temperature Range

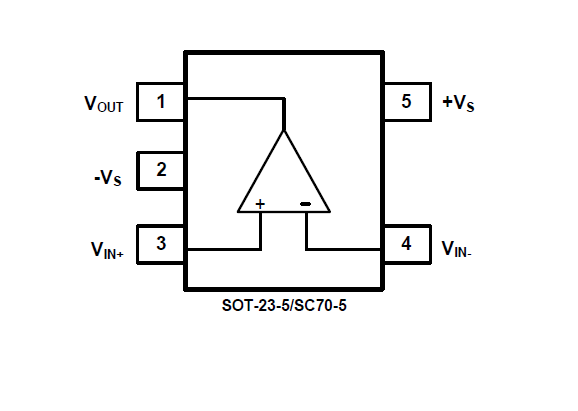

● Available in Green SOT-23-5 and SC70-5 Packages
The SGM8709 is an ultra low power comparator with a typical power supply current of 318nA. It has the best-in-class power supply current versus propagation delay performance. The propagation delay is as low as 6μs with 100mV overdrive at 1.4V supply. Designed to operate over a wide range of supply voltages, from 1.4V to 5.5V, with guaranteed operation at 1.4V, 2.5V and 5.0V, the SGM8709 is ideal for use in a variety of battery-powered applications. With rail-to-rail input common mode voltage range, the SGM8709 is well suited for single-supply operation. Its small packages make this device ideal for use in handheld electronics and mobile phone applications.

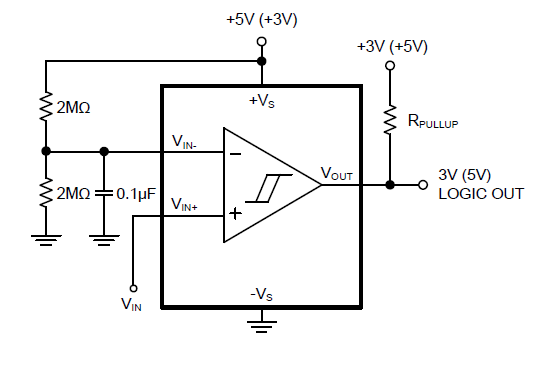

Featuring an open drain output stage, the SGM8709 allows for operation with absolute minimum power consumption when driving any capacitive or resistive load.
