Low Power Comparator
SGM8712 SGM8712.pdf

No.10789

FEATURES
? Ultra Low Power Consumption:
  300nA/Channel (TYP) at VS = 1.4V
? Wide Supply Voltage Range: 1.4V to 5.5V
? Propagation Delay: 6μs (TYP) at VS = 1.4V
? Push-Pull Output Current Drive: 19mA (TYP) at VS = 5V
? Rail-to-Rail Input and Output
? -40℃ to +85℃ Operating Temperature Range
? Available in Green MSOP-8 Package
DESCRIPTION

The SGM8712 is a dual low power comparator with a typical power supply current of 300nA (per channel). It has the best-in-class power supply current versus propagation delay performance. The propagation delay is as low as 6μs with 100mV overdrive at 1.4V supply. Designed to operate over a wide range of supply voltages, from 1.4V to 5.5V, with guaranteed operation at 1.4V, 2.5V and 5.0V, the SGM8712 is ideal for use in a variety of battery-powered applications. With rail-to-rail common mode voltage range, the SGM8712 is well suited for single-supply operation. Its small package makes this device ideal for use in handheld electronics and mobile phone applications. Featuring a push-pull output stage, the SGM8712 allows for operation with absolute minimum power consumption when driving any capacitive or resistive load.
SGM8712 is available in Green MSOP-8 package. It is rated over the -40°C to +85°C temperature range.

APPLICATION CIRCUIT

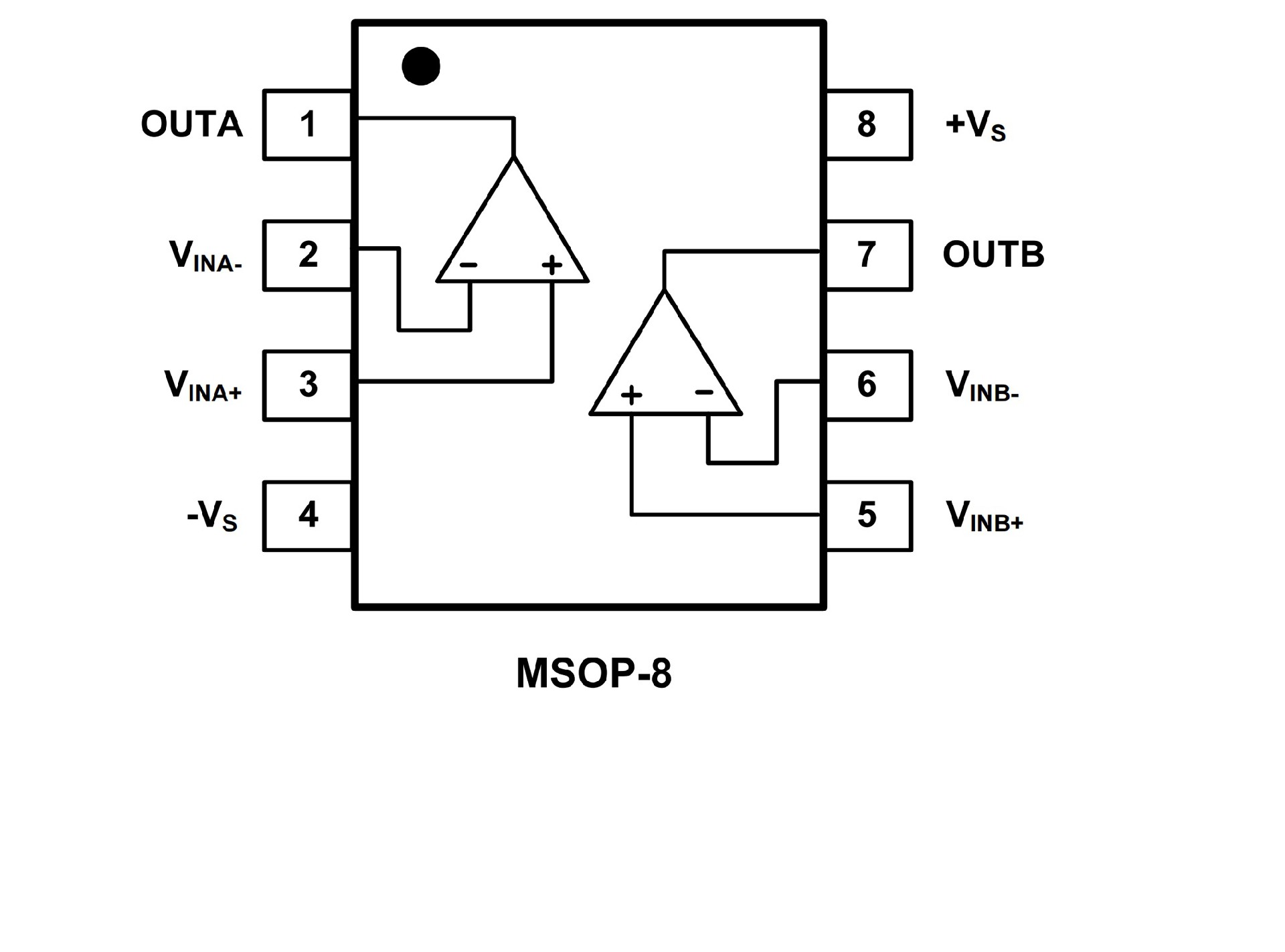

PIN CONFIGUTION
