SGM8770.pdf
No.11245
● Single Supply or Dual Supplies
● Wide Supply Voltage Range: 2.8V to 36V
● Open-Drain Output
● Low Supply Current Independent of Supply Voltage: 310μA (TYP)
● Low Input Offset Voltage: 2.4mV (MAX)
● Low Input Bias Current: ±20pA (TYP)
● Input Common Mode Voltage Range Includes Ground
● Differential Input Voltage Range Equal to Maximum-Rated Supply
Voltage: ±36V
● Low Output Saturation Voltage
● Output Compatible with TTL and CMOS
● -40℃ to +125℃ Operating Temperature Range

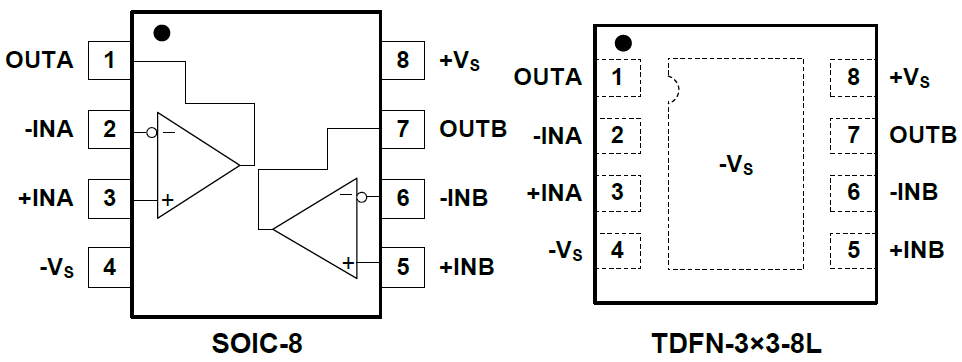

● Available in Green SOIC-8 and TDFN-3×3-8L Packages
The SGM8770 consists of two independent voltage comparators that are designed to operate from a single power supply or dual power supplies over a wide voltage range. For dual supplies application, the difference between the two supplies is 2.8V to 36V. Input common mode voltage is 1.5V lower than +VS. Low supply current is independent of the supply voltage. The outputs can be connected to other open-drain outputs to achieve wired-AND relationships.
The SGM8770 is available in Green SOIC-8 and TDFN-3×3-8L packages. The SGM8770 is specified over the extended -40℃ to +125℃ temperature range.
