SGM8924.pdf
No.11316
? Rail-to-Rail Output
? Low Noise: 6nV/ Hz
? Low Distortion
? High Output Voltage Swing: 4.75V (with 150mA Output Current)
? Low Output Voltage Swing: 0.25V (with 150mA Output Current)
? Supply Voltage Range: 3V to 5.5V
? Thermal Shutdown Protection Circuitry
? Low Input Offset Voltage 0.9mV MAX (SGM8924A)
? Gain Bandwidth Product: 9MHz
? Slew Rate: 6.2V/μs
? Low Power 5.5mA/Amplifier Typical Supply Current
The SGM8924 is a dual, rail-to-rail output operational amplifier that is optimized and fully specified for 5V operation. High output current allows low load impedances to be driven.
The SGM8924 has a wide input common-mode voltage range and output voltage swing, running at single supply voltage from 3V to 5.5V.
The SGM8924 provides excellent overall performance. It exhibits low noise and distortion, low offset and high output current capability, making this device an excellent choice for high quality, low voltage or battery operated audio systems.

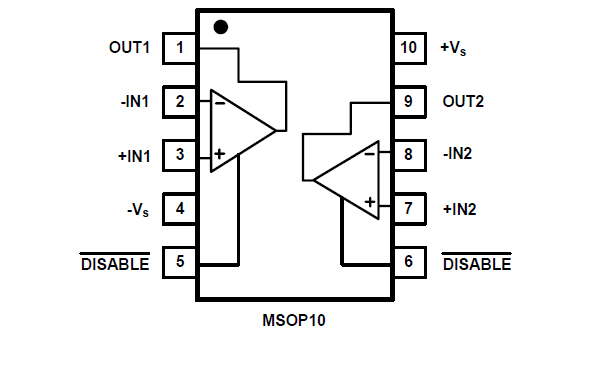

The SGM8924 is offered in Green MSOP10 package. It is specified over the extended -40℃ to +85℃ temperature range.
