SGM8934.pdf
No.10681
? Low Cost
? Rail-to-Rail Input and Output
0.8mV Typical VOS
? Unity Gain Stable
? Gain-Bandwidth Product: 1.1MHz
? Very Low Input Bias Current: 0.5pA
? Supply Voltage Range: 2.1V to 5.5V
?Input Voltage Range:
-0.1V to +5.6V with VS = 5.5V
? Low Supply Current: 46μA/Amplifier
? Small Packaging

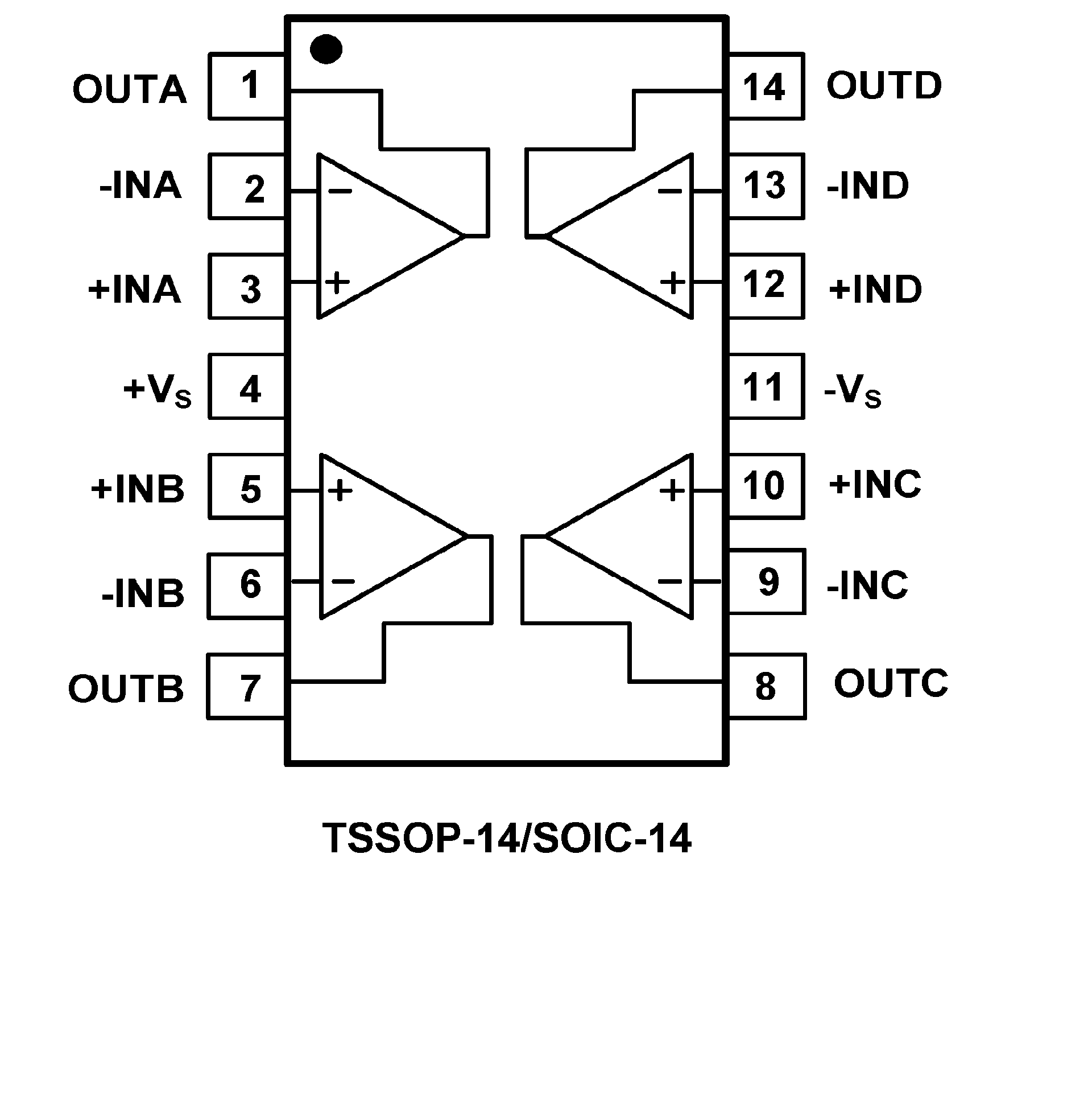

SGM8934 Available in TSSOP-14 and SOIC-14
The SGM8931 (single), SGM8932 (dual), SGM8933 (single with shutdown) and SGM8934 (quad) are rail-to-rail output operational amplifiers that are optimized and fully specified for 5V operation. The SGM8931/2/3/4 have a wide input common-mode voltage range and output voltage swing, and take the minimum operating supply voltage down to 1.8V. The maximum recommended supply voltage is 5.5V.
The SGM8931/2/3/4 provide excellent overall performance. They exhibit low noise, distortion and low offset, making these devices an excellent choice for high quality, low voltage or battery powered systems.The SGM8931/2/3/4 are specified over the extended -40℃ to +85℃ temperature range.The SGM8934 quad is available in Green SOIC-14 and TSSOP-14 packages.
