50MHz, Low Distortion, Rail-to-Rail I/O, Single-Supply, Automotive Operational Amplifier.
SGM8965A-2Q
SGM8965A-2Q.pdf
SGM8965A-2Q.pdf
No.14070
FEATURES
? AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
? Unity-Gain Stable
? Gain-Bandwidth Product: 50MHz
? Slew Rate: 28V/μs
? High CMRR: 94dB (TYP)
? Low Offset Voltage: 280μV (MAX)
? Low Bias Current: 1pA (TYP)
? Low Input Voltage Noise: 5.5nV/√Hz at 100kHz
? Rail-to-Rail Input and Output
? Supply Voltage Range: 2.2V to 5.5V
? Available in Green SOIC-8 and MSOP-8 Packages
DESCRIPTION
The SGM8965A-2Q is a dual, high speed CMOS operational amplifier with high input impedance, zero crossover and low distortion. This device can operate from 2.2V to 5.5V single supply.
The SGM8965A-2Q features high speed and low noise. It supports rail-to-rail input and output operation. The input common mode voltage range is from (-VS) - 0.1V to (+VS) + 0.1V, and the output range is from (-VS) + 0.006V to (+VS) - 0.006V. Furthermore, the SGM8965A-2Q provides high CMRR with zero-crossover and low distortion, which is designed to drive ADCs with high linearity. The device can be used in a variety of applications, such as audio, mobile phone and signal conditioning.
The SGM8965A-2Q is available in Green SOIC-8 and MSOP-8 packages. It is specified over the extended -40℃ to +125℃ temperature range.
This device is AEC-Q100 qualified (Automotive Electronics Council (AEC) standard Q100 Grade 1) and it is suitable for automotive applications.

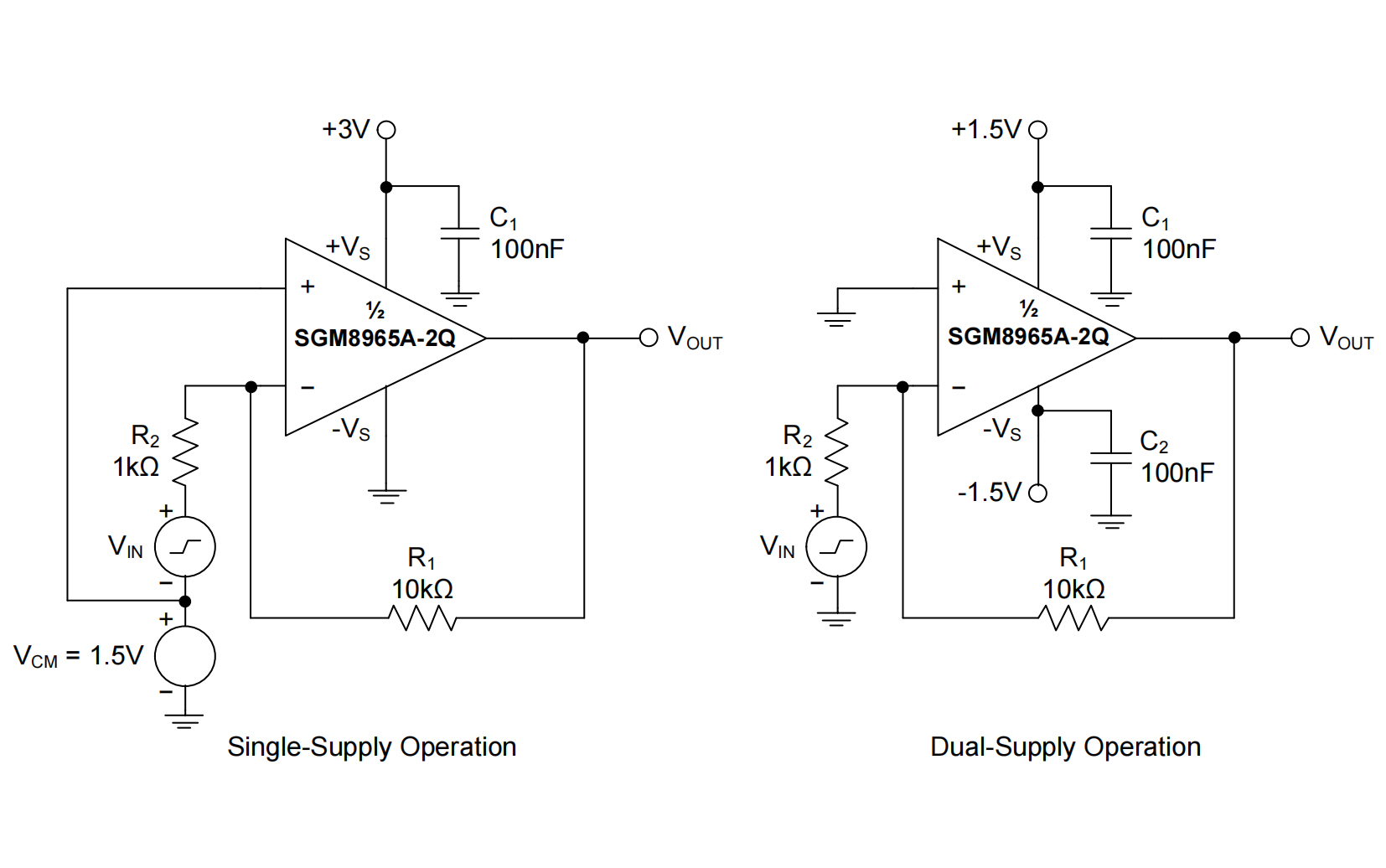

APPLICATION CIRCUIT

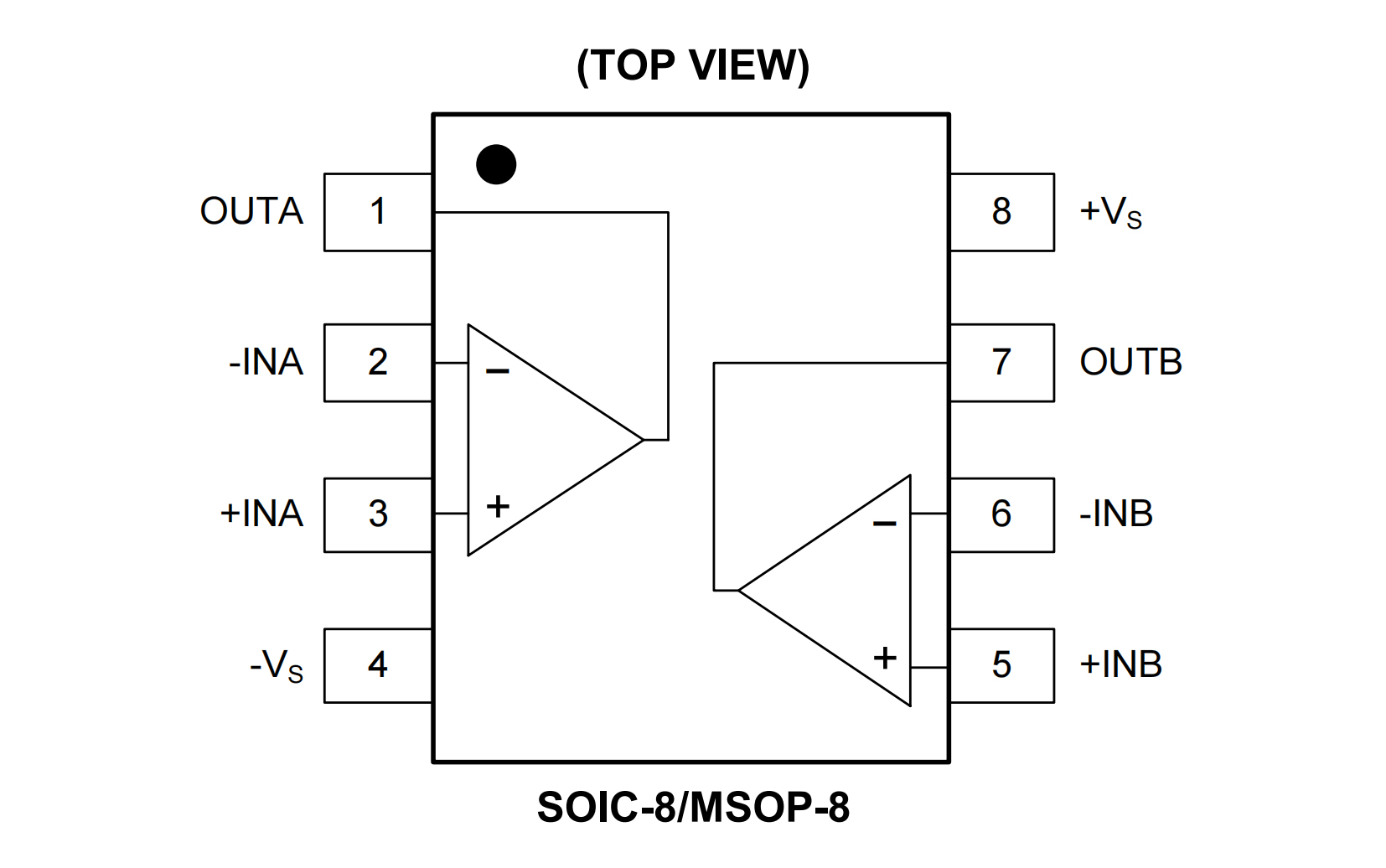

PIN CONFIGUTION
