SGM8968-1.pdf
No.11292
● Rail-to-Rail Input and Output
● Input Offset Voltage: 240μV (MAX)
● High Gain-Bandwidth Product: 10MHz
● High Slew Rate: 20V/μs
● Settling Time to 0.1% with 2V Step: 280ns
● Overload Recovery Time: 100ns
● Low Noise: 8nV/Hz at 10kHz
● Supply Voltage Range: 1.8V to 5.5V
● Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
● Low Power: Supply Current: 1.6mA/Amplifier (TYP)
● -40℃ to +125℃ Operating Temperature Range
The SGM8968-1/2/4 are a family of single, dual and quad rail-to-rail input and output operational amplifiers with 10MHz gain-bandwidth product and 20V/μs slew rate, while consuming only 1.6mA quiescent current per amplifier at 5.5V.
The SGM8968-1/2/4 feature a 240μV maximum input offset, and the devices are optimized for low voltage operation from 1.8V to 5.5V.

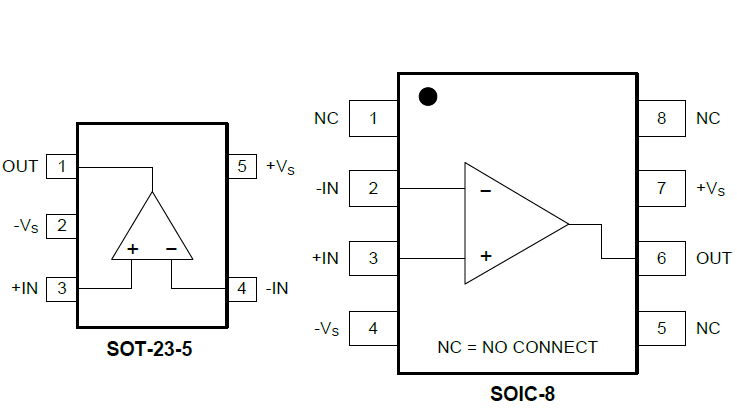

The single SGM8968-1 is available in Green SOT-23-5 and SOIC-8 packages. The dual SGM8968-2 is available in Green SOIC-8 and MSOP-8 packages. The quad SGM8968-4 is available in Green SOIC-14 and TSSOP-14 packages. They are specified over the extended industrial temperature range (-40℃ to +125℃).
