SGM8969-2.pdf
No.11288
● Rail-to-Rail Input and Output
● Input Offset Voltage: 240μV (MAX)
● High Gain-Bandwidth Product: 50MHz
● High Slew Rate: 20V/μs
● Settling Time to 0.1% with 2V Step: 500ns
● Overload Recovery Time: 50ns
● Low Noise: 8nV/Hz at 10kHz
● Gain 10 Stable
● Supply Voltage Range: 1.8V to 5.5V
● Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
● Low Power: Supply Current: 1.1mA/Amplifier (TYP)
● -40℃ to +125℃ Operating Temperature Range
The SGM8969-1/2 are a family of single and dual rail-to-rail input and output operational amplifiers with 50MHz gain-bandwidth product and 20V/μs slew rate, while consuming only 1.1mA quiescent current per amplifier at 5.5V.
The SGM8969-1/2 feature a 240μV maximum input offset, and the devices are optimized for low voltage operation from 1.8V to 5.5V.

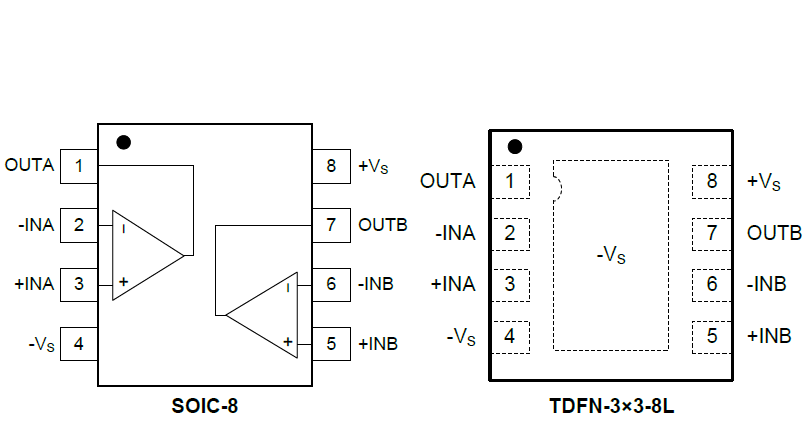

The single SGM8969-1 is available in a Green SOT-23-5 package. The dual SGM8969-2 is available in Green SOIC-8 and TDFN-3×3-8L packages. They are specified over the extended industrial temperature range (-40℃ to +125℃).
