SGM9117.pdf
No.11203
? Triple 200MHz Video Drivers
? Transparent input clamping
? 6dB output driver Gain and drive dual video load
? Rail-to-Rail Output
? Input Voltage Range Includes Ground
? AC or DC Coupled Inputs
? AC or DC Coupled Outputs
? Operates from 2.5 V to 5.5 V Single power supply
? Low Power (9.2mA/channel)
27.5 mA total Supply Current

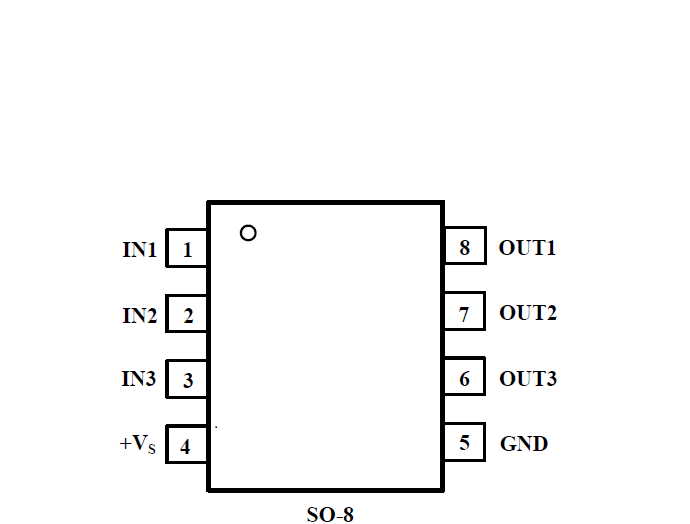

? Lead (Pb) Free SOIC-8 package

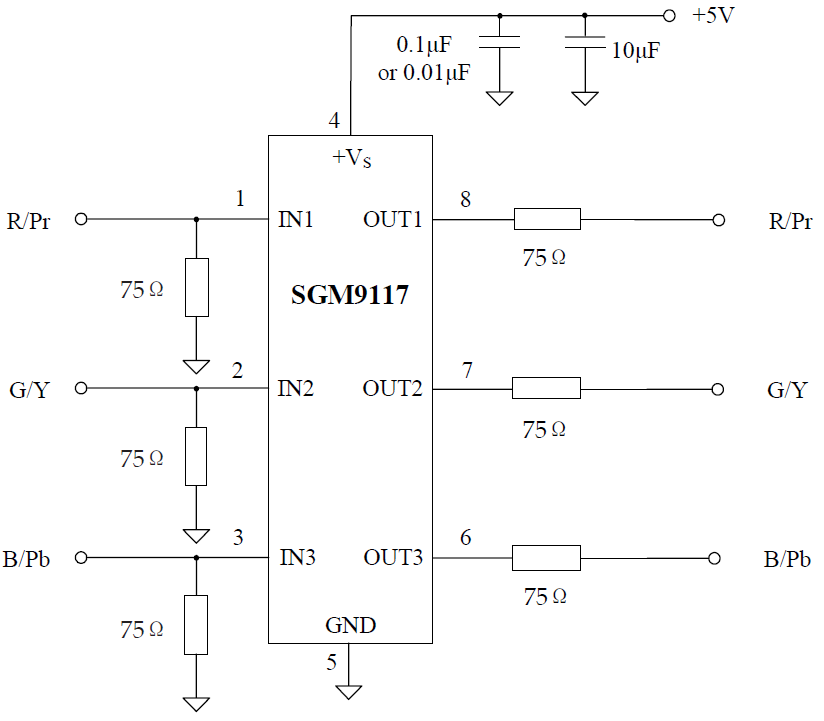

The SGM9117 includes triple high-speed video buffers with G = +2 in one package. Every video buffer has –3 dB full signal bandwidth in excess of 200 MHz, along with slew rates in excess of 300 V/μs. With–65 dB of crosstalk at 1MHz, the SGM9117 is useful in many high-speed applications. The differential gain and differential phase error are 0.01% and 0.02°.The SGM9117 is ideal for RGB and YPbPr signal buffering or driving. Operating from single supplies ranging from +2.5V to +5.5V and sinking an ultra-low 27.5mA quiescent current, the SGM9117 is also ideally suited for battery powered applications.
The SGM9117 is specified over the extended –40°C to +125°C temperature range. It has lead (Pb) free SOIC-8 package.
