? Three 6th-Order Filters for 1080p High Definition Mode
? Bias Mode Active with AC-Coupled Inputs
? Bias Mode Inactive with DC-Coupled Inputs
? AC- or DC-Coupled Outputs
? DC-Coupled Output Eliminates AC Coupling Capacitor

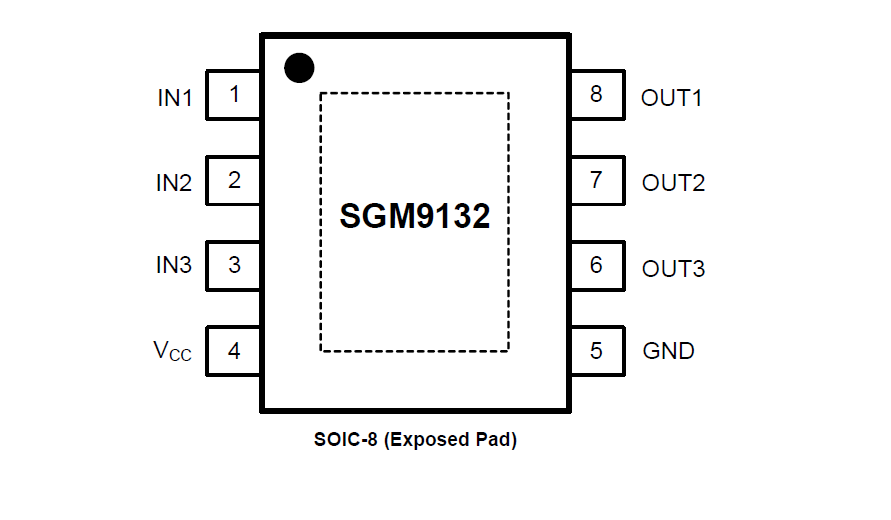

? Available in Green SOIC-8 (Exposed Pad) Package
? -40°C to +85°C Operating Temperature Range

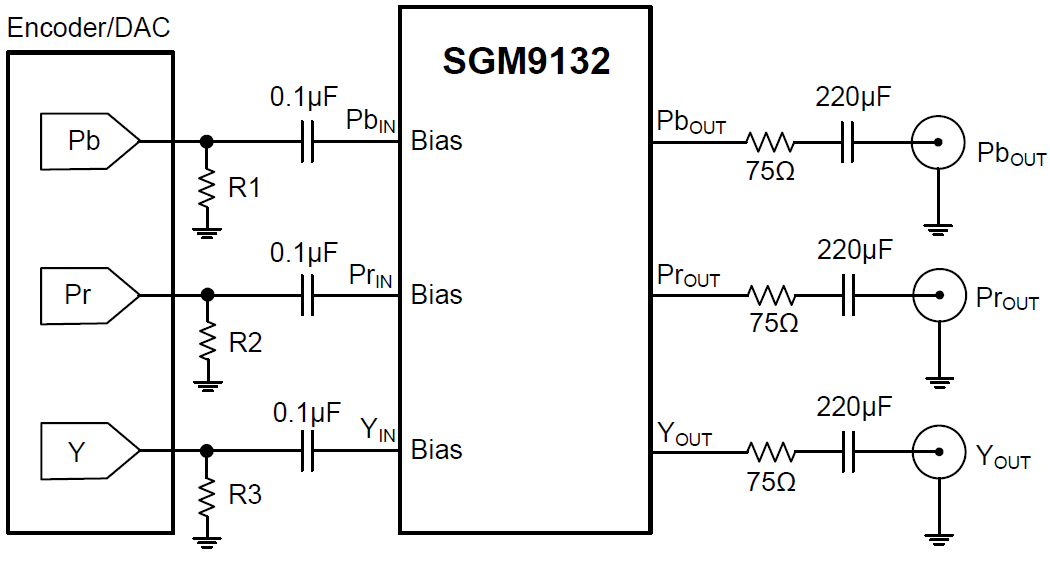

The SGM9132 video filter is intended to replace passive LC filters and drivers with an integrated device. Three 6th-order channels offer High Definition (HDp) filters. The SGM9132 may be directly driven by a DC-coupled DAC output or an AC-coupled signal. Internal bias circuitry provides constant bias voltage for AC-coupled inputs.
The outputs can be AC- or DC-coupled. DC coupling the outputs removes the need for large output coupling capacitors.
The SGM9132 is available in Green SOIC-8 (Exposed Pad) package. It operates over an ambient temperature range of -40℃ to +85℃.
