SGM9149.pdf
No.11184
? Triple 5th-Order 13MHz (SD) Filters
? Transparent Input Clamping
? 6dB Output Driver Gain
? Rail-to-Rail Output
? Input Voltage Range Includes Ground
? AC- or DC-Coupled Inputs
? AC- or DC-Coupled Outputs
? Operates from 3.0V to 5.5V Power Supply
? Supply Current (7mA/Channel) 21mA Total Supply Current

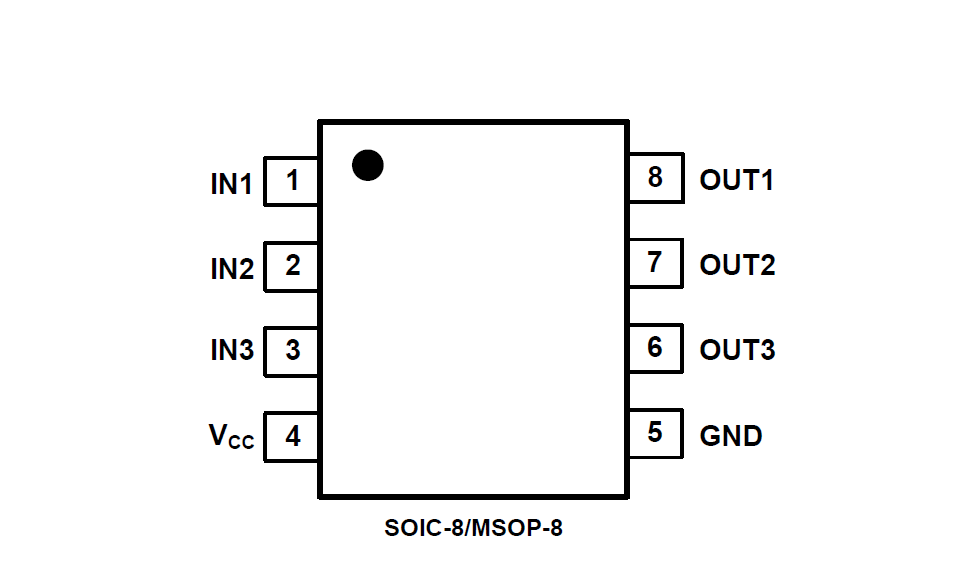

? Available in Green SOIC-8 and MSOP-8 Packages
? -40℃ to +85℃ Operating Temperature Range
The SGM9149 is a low voltage, triple channel video amplifier with integrated reconstruction filters and input clamps. Specially suited for standard definition video signals, this device is ideal for a wide range of television and set-top box applications. SGM9149 offers 6dB gain rail-to-rail output driver and 5th-order output reconstruction filter on all three channels. It has a -3dB bandwidth of 13MHz and 61V/μs slew rate. SGM9149 provides improved image quality compared with passive LC filters and discrete drivers solution. Operating from single power supply ranging from 3.0V to 5.5V and sinking a low 21mA quiescent current, the SGM9149 is ideally suited for battery powered applications.

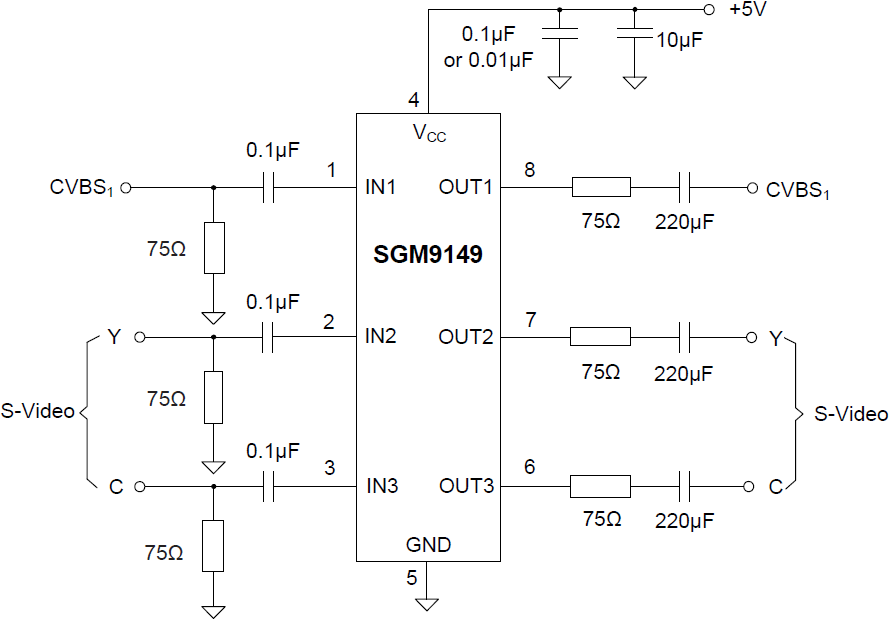

SGM9149 can be DC-coupled or AC-coupled with input video signal, such as the output stage of DAC to eliminate out-of-band noise. The output in SGM9149 can be configured as DC- or AC-coupled output.
